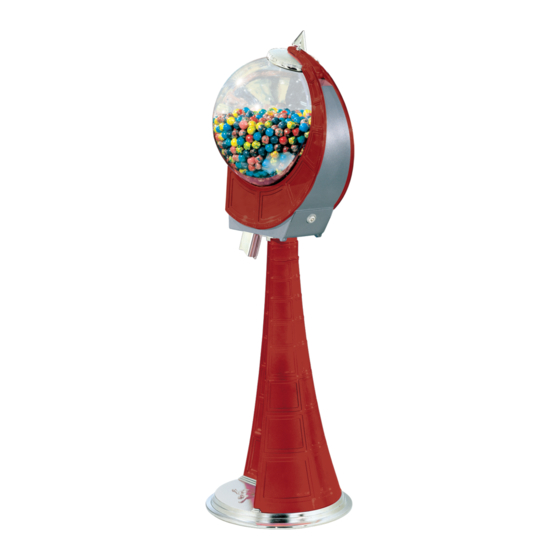

  • Page 1 Meridian ® Product Service Manual www.beavervending.com / sales@beavervending.com / 1-800-265-6772 (U.S.A.) / 1-905-836-4700 (Int’l)

  • Page 2: Table Of Contents

    Table Of Contents Setup............. Service Refilling The Confection..... Removing The Cash......The Coin Mechanism......10-12 The Dispense Conversion....13-16 Specifications......... www.beavervending.com / sales@beavervending.com / 1-800-265-6772 (U.S.A.) / 1-905-836-4700 (Int’l)

  • Page 3: Setup

    Setup Check machine for any shipping damage. Unlock and open the lid. Remove the spearhead from under the lid using a red robertson screwdriver. Reattach the spearhead to the top of the lid hinge. The spearhead will align itself into position. www.beavervending.com / sales@beavervending.com / 1-800-265-6772 (U.S.A.) / 1-905-836-4700 (Int’l)
  • Page 4 Fill the ball globe with selected product. Close the lid and lock into place. Buff the entire machine to remove dirt and fingerprints. A sparkling machine will attract more customers. www.beavervending.com / sales@beavervending.com / 1-800-265-6772 (U.S.A.) / 1-905-836-4700 (Int’l)

  • Page 5: Service

    Service B (i) Refilling The Confection Unlock and open the lid. Unlock and open the rear service door at the back of the machine. Pull the mechanism frame- locking rod backward, releasing the mechanism frame. The locking rod is located inside the back of the machine at the top of the housing.
  • Page 6 B (i) Tilt the mechanism frame outward from the top of the frame. Release the ball globe service head with the left and right locking Locking pins located just inside the front of the machine. Tilt the top of the ball globe service head forward and then lift straight up and remove from the machine.
  • Page 7 B (i) Pour out any remaining product Correct Incorrect from the ball globe into a clean plastic bowl or plastic bag. Make sure that one of the dispense wheel holes is centered with the housing hole or the product will not dispense properly.
  • Page 8 B (i) Close the lid and lock into place. Tilt the mechanism frame upwards so it is flush with the body of the machine. Lock the mechanism frame into place with the mechanism- locking rod located inside the back of the machine.

  • Page 9: Removing The Cash

    Service B (ii) Removing The Cash Unlock and open the rear service door at the back of the machine. Pull the locking-slide backwards and hold it in the back position. Then with your other hand slide the top cash bag cover up. Locked into a higher...
  • Page 10 B (ii) Remove the bottom cash bag cover by sliding it up and off the support stand wings. This will expose the entire cash bag. Remove the cash bag-locking fork. This will release the cash bag. Empty the coins from the cash bag and reassemble it back onto the machine.
  • Page 11 B (ii) Pull the locking-slide back, holding it in the back position. Then with your other hand slide the top cash bag cover down and release the locking-slide so that the cash bag cover is locked into place. Close the service door and lock into place.

  • Page 12: The Coin Mechanism

    Service B (iii) The Coin Mechanism Unlock and open the rear service door at the back of the machine. Pull the mechanism frame- locking rod backward, releasing the mechanism frame. The locking rod is located inside the back of the machine at the top of the housing.
  • Page 13 B (iii) Slide the mechanism off the frame for maintenance. Lift the mechanism frame up and off the machine. Separate the chute door from the frame and lubricate all of the hinge tabs. Reassemble the chute door onto the frame and place back onto the machine.
  • Page 14 B (iii) Lift off the service door from the machine and lubricate all of the hinge tabs. Tilt the mechanism frame back upwards so it is flush with the body of the machine. Lock the mechanism frame into place with the mechanism- locking rod located inside the back of the machine.

  • Page 15: The Dispense Conversion

    Service B (iv) The Dispense Conversion Unlock and open the lid. Unlock and open the rear service door at the back of the machine. Pull the mechanism frame- locking rod backward, releasing the mechanism frame. The locking rod is located inside the back of the machine at the top of the housing.
  • Page 16 B (iv) Tilt the mechanism frame outward from the top of the frame. Release the ball globe service Locking head with the left and right locking pins located inside the front of the machine. Tilt the top of the ball globe service head forward and then lift straight up and remove from the machine.
  • Page 17 B (iv) Removing the three adapter screws in the bottom of the ball globe and then seperate the ball globe from the hopper. Correct Incorrect Change the dispense conversion and then reassemble the ball globe onto the hopper. Make sure that one of the dispense wheel holes is centered with the housing hole or the product will not dispense properly.
  • Page 18 B (iv) Close the lid and lock into place. Tilt the mechanism frame upwards so it is flush with the body of the machine. Lock the mechanism frame into place with the mechanism- locking rod located inside the back of the machine.

  • Page 19: Specifications
