Bhaptics Tactot DK1 Manual

wearable haptic vest

Unboxing

box contents

1x Tactot
2x Micro USB cable
1x Bluetooth dongle
1x Manual

specifications

Tactot DK1 BHTTT0000
Model
26 - 48 inch (body circumference)
Size
1.6 kg (including battery)
Weight
Bluetooth low energy technology
Connection
.DK1
connecting battery
Getting started -bhaptics player
Bhaptics Player is an desktop software, for
the optimization and control of your experience with Tactot.
Acting as a link between the device, application and the
Bhaptics Designer, it controls bluetooth connections, device
settings and more.

Downloading software

Downloads for the Bhaptics Player software are available
on our website, www.bhaptics.com.

Connecting device

Turning Tactot on/off
After connecting the battery and device, press the power
button on the battery to turn the device on. The device will
turn off automatically when it is left unconnected for 2 mins.
Pairing and Unparing
With the PC's bluetooth turned on (and if needed, with the
dongle plugged in), find Tactot on the Player's interface.
Right click and find your device name on the 'pair' tab.
Once paired, the device will buzz to notify you it is ready.
When the device is connected and not in use, the device
will buzz every 100 secs to notify you.
paired once, it will connect automatically when turned on.
To unpair, right click the paired device and find the 'unpair'
button.

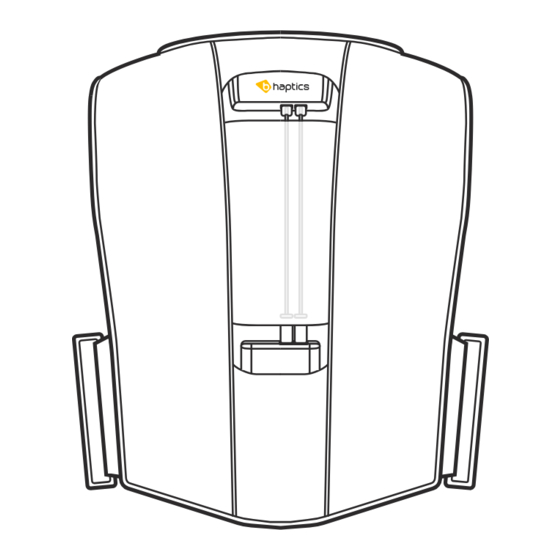

LED Indication

Using the 2 micro USB cable
found in the box, connect both
to the battery and the device.
Once connected, make sure
the device is inserted back
into its pocket like the image.
If a device had been
Pair TactotV2.4
TactotV2.1
ping all unpair all
blink
Waiting for connection
Connected to PC
