ASCO 5350
Installation Manual

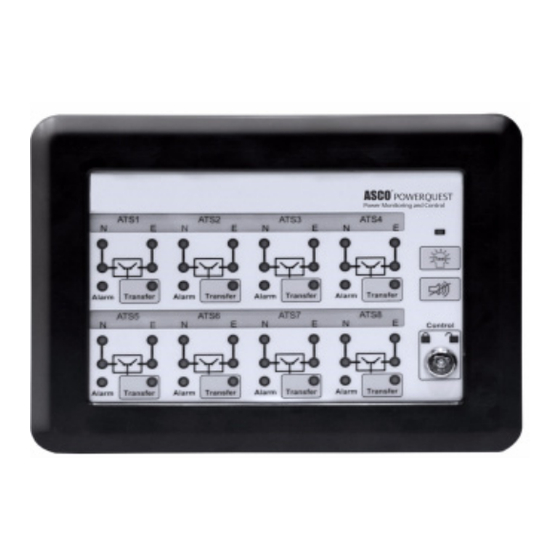

The ASCO 5350 ATS Remote Annunciator is listed under the
Underwriter's Laboratories Standard UL-1008 for Automatic
Transfer Switch accessories. This stand-alone device provides
individual status monitoring and control of up to eight ASCO
Automatic Transfer Switches (ATSs) over an ethernet
network. Each ATS must have an ASCO 5150 Connectivity
Module (CM) (Acc. 72E) connected to it. Daisy-chained ATSs
that have ASCO 5110 Serial Modules (Acc. 72A) can share a
single CM. The Catalog 5350 can communicate with these
ATSs:
7000 & 4000 Series (Group 5 Controller)
Series 300 (Group 1 Controller)
Series 185 (Group 4 Controller)
ASCO 940 (Group 7 Controller)
The ASCO 5350 complies with US UL requirements. It also
has IEC Certification (CE Mark).
Product Functions and General Descriptions:
Separate light indicate switch status and position.
ATS switch position
ATS source availability
ATS alarm condition
ATS time delay active
Separate push buttons individually initiate transfer switch
operation and testing.
ATS transfer test (Transfer)/ bypass (cancel) time delay
Silence alarm
Lamp test
Reset
The ATS Remote Annunciator can also be setup in multiple
locations to monitor the same devices. This arrangement
allows for redundant annunciation of business-critical ATSs.
After the ATS Remote Annunciator is installed and
configured refer to User's Guide 381333-314.
DANGER
!
DANGER is used in this manual to warn of a
hazard situation which, if not avoided, will result in
death or serious injury.
WARNING
!
WARNING is used in this manual to warn of a
hazardous situation which, if not avoided, could
result death or serious injury.
381333-315 D
ATS Remote Annunciator
Installation Drawings & Wiring Diagrams
ASCO Power Technologies
Installation Manual
Catalog 5350

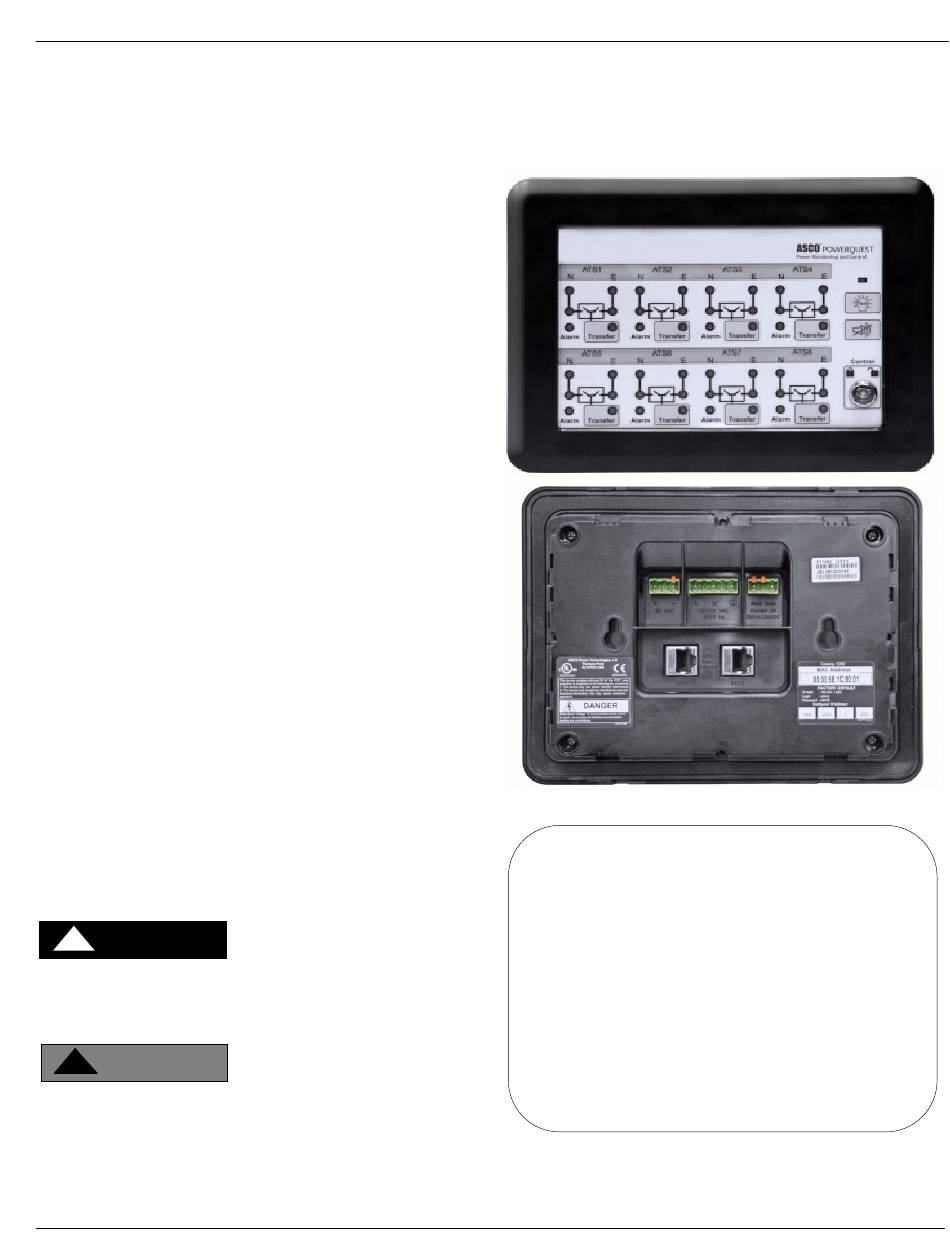

Rear view
TABLE OF CONTENTS
.
.
.
.
.
.
.
.
page
2
3
4
5
7
10
11
12
381333-315 D
Page 1
Advertisement
Summary of Contents for ASCO POWER TECHNOLOGIES 5350
-
Page 1: Table Of Contents
Installation Manual ATS Remote Annunciator Catalog 5350 The ASCO 5350 ATS Remote Annunciator is listed under the Underwriter’s Laboratories Standard UL-1008 for Automatic Transfer Switch accessories. This stand-alone device provides individual status monitoring and control of up to eight ASCO Automatic Transfer Switches (ATSs) over an ethernet network. -
Page 2: Specifications
Installation Manual ASCO 5350 Specifications 2 Custom ATS Labels Custom ATS names (instead of numbers) can be added to the Power Requirements: 120-220 V ac nominal faceplate. See page 6 to enter and print customized names. To (90-264 V ac) -
Page 3: Installation
Installation DANGER To avoid shock, burns, or death, deenergize all The ASCO 5350 ATS Remote Annunciator can be panel electrical sources before making connections. mounted or attached to an electrical or masonry gang box. Refer to the installation drawing 834970 and wiring diagram 834969 at the back of this manual. -
Page 4: Functional Test
After the ATS Remote Annunciator is mounted and wired (both power and communication) perform these tests: 1. Turn on the power to energize the ASCO 5350. 2. Verify that the power light is illuminated (upper right). 3. Turn the Control key switch to the right (unlocked). -
Page 5: Configuration
ASCO 5350 Installation Manual ATS Remote Annunciator Configuration The ATS Remote Annunciator must be configured. First log in. The ATS Remote Annunciator sends HTML files to the client computer. Internet Explorer interprets these HTML files, formats them, and displays the embedded web pages to the user. - Page 6 Installation Manual ASCO 5350 2-3 IP Address, Subnet Mask, Gateway 2-7 Buzzer On Time (duration) 1. The default IP address parameter is: 169.254.1.200. If the ATS Remote Annunciator is on a LAN enter the appropriate IP address of the LAN. The default subnet mask parameter is: 255.255.0.0, and the gateway address is...
-
Page 7: Ats Configuration
ASCO 5350 Installation Manual ATS Configuration Single ATS connected to one Connectivity Module (CM) - each ATS having its own Connectivity Module The ATS Remote Annunciator must be configured for all the Multiple ATS connected to one Connectivity Module ATSs that will be monitored and controlled. First log in. The - all ATSs connected through a single Connectivity Module. - Page 8 Installation Manual ASCO 5350 For 7000, 4000 Series ATSs select G5/ASCO1 or G5/ASCO2. ASCO1 is for baud rate x9600 (ASCObus 1); ASCO2 is for baud rate 19.2K (ASCObus 2). For Modbus, see Notes below. All ATSs must use the same protocol.
- Page 9 ASCO 5350 Installation Manual 2-3 Configuring Power Manager Alarms 5. When all ATS configurations are made, click Save to upload the configuration to the ATS Remote Annunciator. If a Power Manager (PM) is provided with an ATS, the PM’s An Uploaded Successfully screen should appear. See eight Status Inputs can be configured to signal an alarm at the Figure 22.
-
Page 10: Diagnostics
Installation Manual ASCO 5350 Diagnostics Diagnostics can be used to check communication packets and to check for ATS alarms (to determine why the Alarm light is on). click If necessary, reconnect the laptop computer that was used to configure the ATS Remote Annunciator. Then log in as described on page 5. -
Page 11: Troubleshooting
ASCO 5350 Installation Manual Troubleshooting Number Symptom Probable Cause Recommended Action The DC or AC power source is Restore the DC or AC power supply. Power ON light is off inadequate or off. Check the terminals, fuse, circuit breaker. Lamp test button does not work. -
Page 12: Index
4, 11 mounting, 3 controller, ATS, 1, 8 multiple ATSs connected to single CM, controller address, protocol, 8 controller password, 8 custom ATS labels, 2 name, 5 Page 12 Copyright 2014 ASCO Power Technologies. All rights reserved. 381333-315 D...
