Summary of Contents for MONO-MIXER 1490

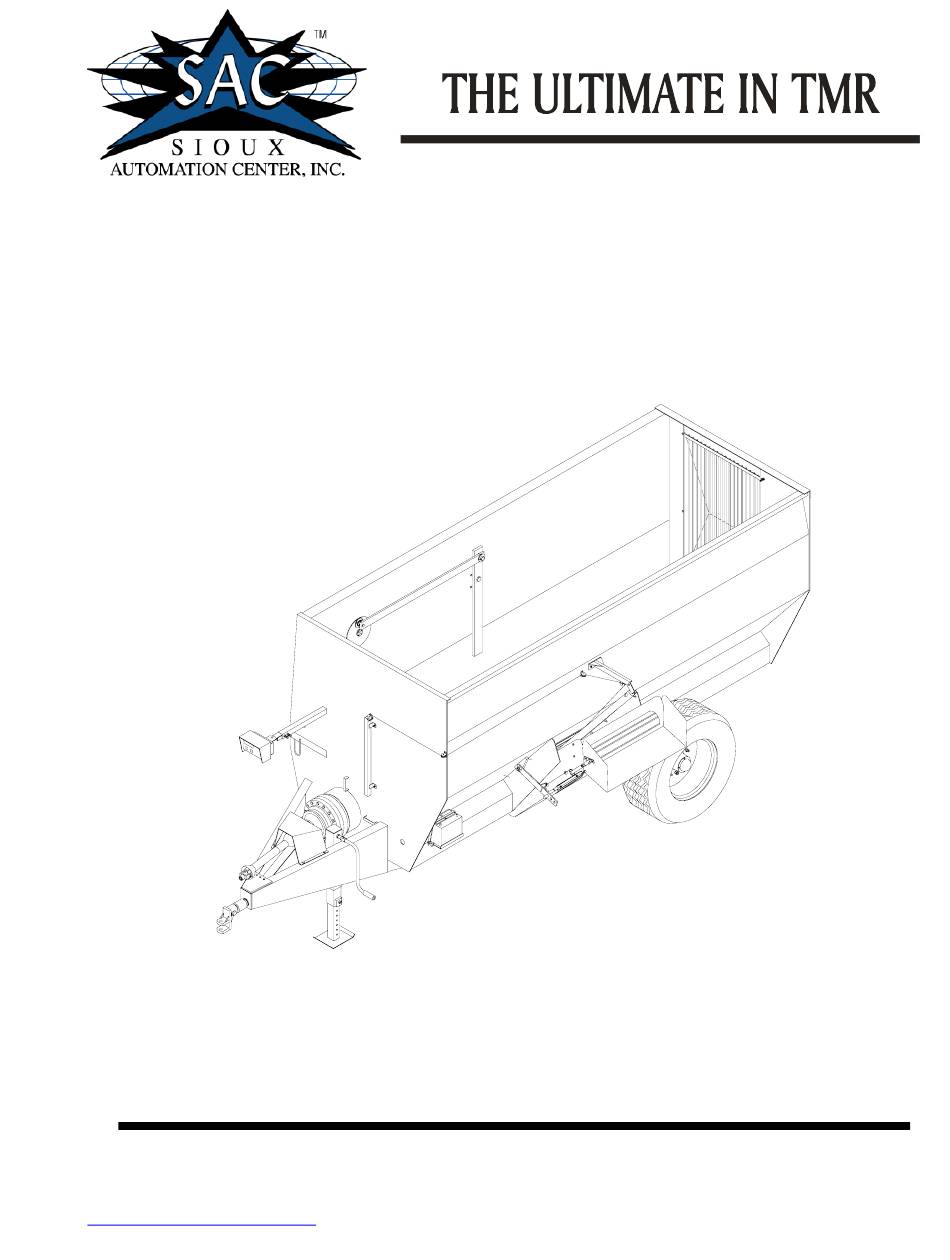

- Page 1 MONOMIXER MODEL 1490 OPERATION AND MAINTENANCE MANUAL 877 1st. AVE. NW Sioux Center, IA. 51250 Iowa 1-712-722-1488 www.siouxautomation.com MON600117 10/4/05...
-
Page 3: This Symbol Means
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH. THIS SYMBOL MEANS - ATTENTION! - BECOME ALERT! - YOUR SAFETY IS INVOLVED! -
Page 4: Safety Alert Symbol
SAFETY ALERT SYMBOL − THE SAFETY ALERT SYMBOL IS USED TO PINPOINT CHARACTERISTICS WHICH IF NOT PROPERLY FOLLOWED CAN CREATE A SAFETY HAZARD. − WHEN YOU SEE THIS SYMBOL IN THIS MANUAL OR ON THE UNIT ITSELF, YOU ARE REMINDED TO: BE ALERT! YOUR PERSONAL SAFETY IS INVOLVED! -
Page 5: Safety First
SAFETY FIRST FARM AND INDUSTRIAL EQUIPMENT INSTITUTE SAFETY ALERT SYMBOL. This symbol is used preceding all CAUTION (a general safety reminder), WARNING (denotes a potential hazard), and DANGER (denotes a potential injury) notices! Most farm accidents, like industrial, home, and highway accidents are caused by the failure of some individuals to observe simple and fundamental safety rules or precautions. - Page 6 INTRODUCTION Thank you for purchasing a MONOMIXER. The purpose of the MONOMIXER is to give the agricultural industry the ability to incorporate long stem roughage into the total mixed ration without additional grinders or processors. We have built the MONOMIXER to very exacting standards and a high level of quality that will give you many years of dependable service if properly used, maintained and serviced.
-
Page 7: Using Your Monomixer
USING YOUR MONOMIXER READ CAREFULLY SETUP 1. When you are delivered your new MONOMIXER from the factory, it is not immediately necessary to check the machine for bearing lubrication or discharge chain tightness as these items have been factory serviced. It is recommended to walk around the machine and familiarize yourself with the location of all moving parts, caution decals, the general operating dimensions and the basic working features of the MONOMIXER. - Page 8 CAUTION! DO NOT REPLACE A BLOWN FUSE WITH A FUSE OF A HIGHER RATING! 4. The MONOMIXER has also been supplied to you with a complete scale system. Read and understand the scale manual and familiarize yourself with its different functions. The scale indicator leads should be connected directly to the battery either on the mixer or the tractor.
- Page 9 3. It is very important that before using your MONOMIXER, proper PTO length be determined and maintained. The PTO must have a minimum and maximum engagement length that falls within the safe use of a PTO. Too short of a PTO could result in the two halves coming apart under load or going over uneven terrain;...
- Page 10 7. If a MONOMIXER does become plugged or jammed, to the point where normal mixing rotation (counter clockwise from the front) will not resolve the problem, it will be necessary to reverse the mixer. This can safely be done by first turning off all power sources, setting the parking brake and waiting for all motion to stop before removing the PTO from the planetary end.
- Page 11 9. To discharge feed from the MONOMIXER, it is necessary to first start the conveyor (either self contained hydraulics or tractor supplied) and then open the discharge door. The conveyor and the door operate on two different hydraulic circuits and can be operated independently. The rate of ration flowing from the MONOMIXER can be controlled by the door position.
- Page 60 MON700230 REVISIONS DWG NO. DO NOT SCALE DRAWING DESCRIPTION REV. DATE MON700253 WAS MON700189 2-95 MON100955 WAS MON100251 12-00 HYD6801-6-6 WAS HYD6400-6-8 ITEM NO. QTY. PART NO. DESCRIPTION 1 MON100393 BRKT,RAM,CLY,CHUTE 1 MON100955 CYL,HYD,2,8,W/CNTRBAL,PAINTED 1 NUT34JAMNF NUT,HEX,JAM,3/4,NF,G8 2 BLT38X1CNC BLT,CARR,3/8,1,NC,G2 2 WSH38LOCK WSH,LOCK,3/8 2 NUT38NC...
- Page 62 MON700143 REVISIONS DWG. NO. DO NOT SCALE DRAWING DATE DESCRIPTION 10-98 MON800158 WAS MON800112 1964 12-02 ADD: SPASNC14X12 QTY2 ITEM NO. QTY. PART NO. DESCRIPTION 1 MON100846 RC402,18P,9IN 1 MON800158 SPK,40,B,18,1 1 RC402CON LINK,CONN,40-2 2 SPASNC14X12 SCREW,ALLEN,1/4,1/2,NC 1 SPK40B18X114 SPK,40,B,18,1.25 DRAWN BY DATE PROPERTY OF:...
- Page 64 PLANETARY NOTES Lubrication The first oil change should be made after approximately 50-100 working hours. Before filling the gear case again, flush it with a fluid recommended for this purpose by the lubricant manufacturer. Subsequent oil changes should be made every 2000-2500 working hours or at least once a year.
- Page 65 APPENDIX 1 OIL SPECIFICATIONS FOR PLANETARY & 1 TO 3 GEARBOX OIL SPECIFICATIONS: Any oil, which meets EP (extreme pressure) Gear Lubricant Specification. OIL CHANGE: After initial 50 hours, thereafter every 1200 hours or 6 months, which ever comes first. These intervals may be modified depending on the actual operating conditions. If used on seasonal equipment, it is recommended that the oil be changed at the end of each season to remove moisture and corrosive contaminants.
-
Page 66: Oil Specifications For Drop Gearbox
APPENDIX 2 OIL SPECIFICATIONS FOR DROP GEARBOX OIL SPECIFICATIONS: Any oil, which meets EP (extreme pressure) Gear Lubricant Specification. OIL CHANGE: After initial 100 hours, thereafter every 1000 hours or 1 year, which ever comes first. These intervals may be modified depending on the actual operating conditions. If used on seasonal equipment, it is recommended that the oil be changed at the end of each season to remove moisture and corrosive contaminants. -
Page 68: Warranty
WARRANTY MONOMIXER warrants to the initial purchaser of a new MONOMIXER product from an authorized MONOMIXER dealer that the product and the components thereof manufactured by MONOMIXER are free from defects in material and workmanship at the time of shipment. MONOMIXER further warrants to such purchaser that each new MONOMIXER product will perform without structural or operational failure if the product is assembled and mounted in accordance with MONOMIXER's instruction and drawing and is then operated and maintained as described in the Owner's Manual.
