1 General
Dear Customer,
Thank you for choosing Schüco Solar. Should
these installation and operating instructions not
answer all your questions, please contact your
Schüco specialist.
2 PV Light flat-roof installation
Please read the
installation and operation thoroughly to avoid
damage to the installation which could arise from
incorrect handling. Generally applicable as well
as regional regulations, specifications and DIN
norms must be
construction and commissioning. Inappropriate
use of the design and changes that are not
permitted to the installation invalidate all claims
as to liability.
If the structural integrity of the flat-roof assembly
brackets is secured by the use of loads, the
following weights must be available on site:
Installation height of up to 8 m:
2
130 kg/m module area
Installation height of up to max. 20 m:
2
215 kg/m module area
2 - PV Light flat-roof installation system
INSTALLATION AND OPERATING
INSTRUCTIONS
following information
observed for planning,
Prior to your first installation, we recommend that
you attend a training course at our training centre
in Bielefeld or, if this is not possible, that you take
advantage of on-site training from one of our
service technicians.
on Any electrical work must be carried out by a
qualified electrician and must conform to the
relevant standards,
regulations, accident prevention regulations and
the requirements of the local electricity supplier.
As a rule, accident prevention regulations and the
following norms must be observed:
DIN 18299
DIN 18338
DIN 18360
DIN VDE 0100-540
DIN 57185 VDE 0185 Constructing a lightning conductor
DIN 4102
The above fittings are not part of the flat-roof
assembly brackets.

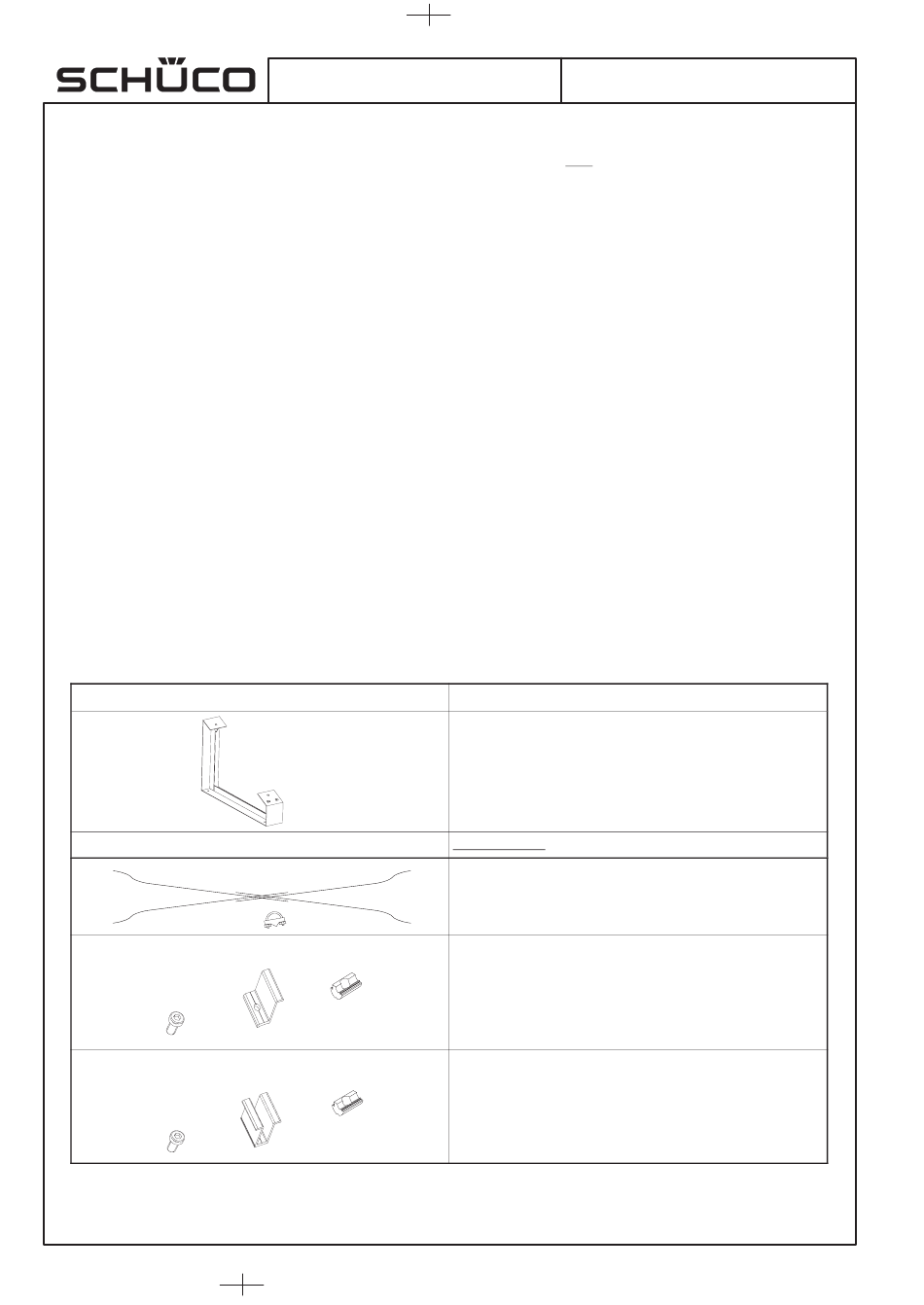

Description
Flat roof brackets/10
- PU = 10
Module width: 530 - 803
803 - 1000
Accessories
Securing cruciform set
- 4 x securing braces
- 1 x clamp for wire ropes DIN1142-S5
Retaining clip set 1
- 50 M8x14 mm universal screws,
(hexagon socket, 6 mm)
- 50 end fixing brackets, (module-specific)
- 50 anchor blocks
(not necessary for 221076/221204)
Retaining clip set 2
- 50 M8x14 mm universal screws,
(hexagon socket, 6 mm)
- 50 intermediate retaining clips, (module-specific)
- 50 anchor blocks
(not necessary for 221 076/221 204)
Pre-printed
PV Light flat-roof installation
specifications,
General regulations governing all
construction
Roofing and roof weather-proofing
Metal fabrication and fitting
Selection and construction - earthing,
earthed lead wires and potential
equalisation
Fire behaviour of building materials and
building components
