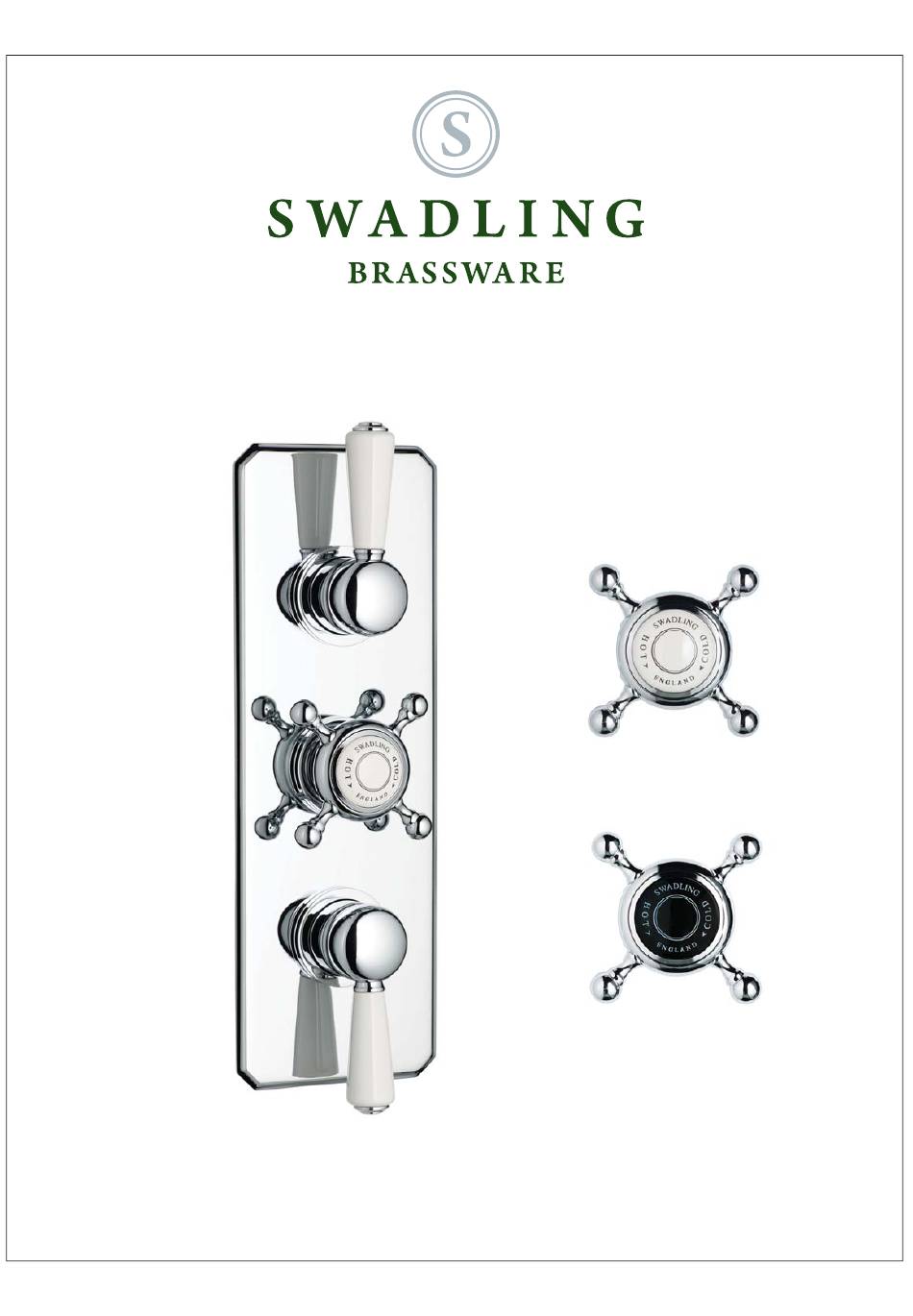

Invincible Double controlled outlet concealed valve

Installation manual

7200

7209

Before disposing of the carton and commencing installation, please check all parts against the parts list on

back cover. Please contact us immediately if any parts are missing or damaged.

Swadling Brassware, Churchward Road, Yate, Bristol, BS37 5PL

Telephone: 02392 255536 Email: tech@swadlingbrassware.co.uk

SB0309 04/18

Table of Contents

Need help?

Do you have a question about the Brassware and is the answer not in the manual?

Questions and answers

Summary of Contents for Swadling Brassware

Page 1 Before disposing of the carton and commencing installation, please check all parts against the parts list on back cover. Please contact us immediately if any parts are missing or damaged. Swadling Brassware, Churchward Road, Yate, Bristol, BS37 5PL Telephone: 02392 255536 Email: tech@swadlingbrassware.co.uk...
Page 2 Please read complete installation instructions before fitting. IMPORTANT Specification. TMV2 valve for use with High and Low Pressure Condition of use for type 2 valve High Pressure Low Pressure Maximum static pressure 10 Bar 10 Bar Flow pressure Hot and Cold 0.5 to 5.0 Bar 0.1 to 1 Bar Hot Supply Temperature...
Page 3 DIMENSIONS CONFIGURATION MAX Pressure = 5.0 BAR Fit Pressure reducing Valves above 5.0 BAR BLANKING PLUG OPTIONAL AUXILIARY OUTLET FOR ON/OFF VALVE...
Page 4 PREPARATION PREPARATION 2.5mm...
Page 5 MOUNTING & MIN 75 - MAX 105 PLUMBING +/- 0mm The Inlets and outlets are 3/4” BSP (Parallel) Threads. DO NOT USE TAPER THREADED ADAPTERS OR OVERTIGHTEN ADAPTERS Use appropriate thread sealer. Oil-based non-setting jointing compounds should not be used! Remove hot and cold return valves and flush out...
Page 6 TILING...
Page 7 SETTING THE TEMPERATURE HANDLE TEMPERATURE STOP CARTRIDGE TEMPERATURE STOP 1. Assemble the Temperature handle to the Thermostatic cartridge. 2. Using the handle rotate anti-clockwise until the Handle temperature stop meets the Cartridge temperature stop and will not turn anymore anti-clockwise. This is the maximum hot water temperature - The maximum temperature should not exceed 41°c.
Page 8 PARTS LIST SB0082 SB0070 SB1035 1595 AF SB0048 SB1031 1912 1178 AF SB1422 SB0035 SB1401 SB0111 1604 AF SB0073 1595 AF SB0086 SB0103 SB1936 1360 A SILVER 1397 A SILVER SB0036 SB1029 1178 AF SB0070 SB0073 SB0112 SB0087 SB0234 1298 A SILVER 1595 AF SB0169 SB0111...
