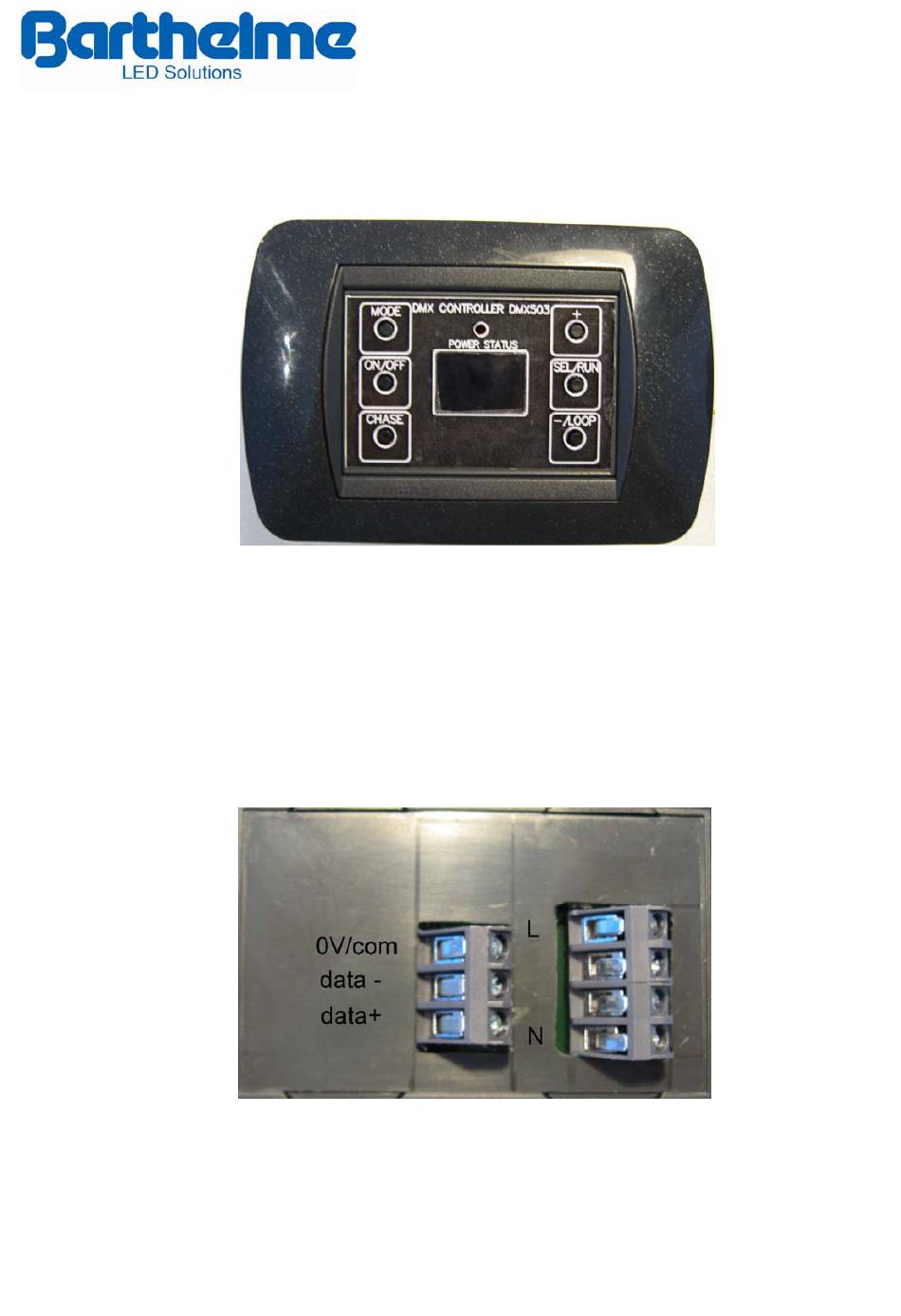

OPERATING INSTRUCTION: MiniControllerDMX
TECNICHAL DATA:
Power IN: 230Vac
Output: DMX over RS485
Interface: display OLED, power status led, 6 function buttons
Number of channels used: 60 (10 devices divided in 6 channels/each, with configuration RGB, RGBL, RGBA)
Number CHASES: 20
Number of SCENES for every CHASE: 10
Preliminary v09
1
Subject to techn. changes
Advertisement
Table of Contents
Related Manuals for Barthelme DMX503
Summary of Contents for Barthelme DMX503
- Page 1 OPERATING INSTRUCTION: MiniControllerDMX TECNICHAL DATA: Power IN: 230Vac Output: DMX over RS485 Interface: display OLED, power status led, 6 function buttons Number of channels used: 60 (10 devices divided in 6 channels/each, with configuration RGB, RGBL, RGBA) Number CHASES: 20 Number of SCENES for every CHASE: 10 Preliminary v09 Subject to techn.
- Page 2 FUNCTION DESCRIPTION: The device MiniControllerDMX is planned to control lamps using the DMX512 communication protocol. MiniControllerDMX has three different operating mode: MANUAL, AUTOMATIC, PROGRAMMING, all selectable by the MODE button. MANUAL MODE: In the manual mode you can select (by pressing the button SEL/RUN, DEV on the display) the device you want to use, from 1 to 10, or use all of them at the same time.
- Page 3 AUTOMATIC: In the automatic mode you can select one of the 20 chase in the memory (5 pre-setted and 15 programmable in the progreamming mode) by using the CHASE button and run it or stop by pressing the SEL/RUN button. Every selected chase will run one time for every pression of the button or can run continuously by using the loop function with the -/LOOP button.
- Page 4 PROGRAMMING: In the programming mode you can create the desired chase, you can recall them by the automatic funzion.. The screen displayed it looks a little bit complicated of the previous two, and allow to set all the parameters of the colour changing.
- Page 5 HOW TO PROGRAM A CHASE: 1 - push the MODE button until a “P” appears in the middle of the display 2 - push the SEL/RUN button to select the “Cxx” (CHASE number xx) 3 - push the bitton + or -/LOOP to select the CHASE you want to program (from C06 to C20) 4 - push the SEL/RUN button to select the “Sxx”...
