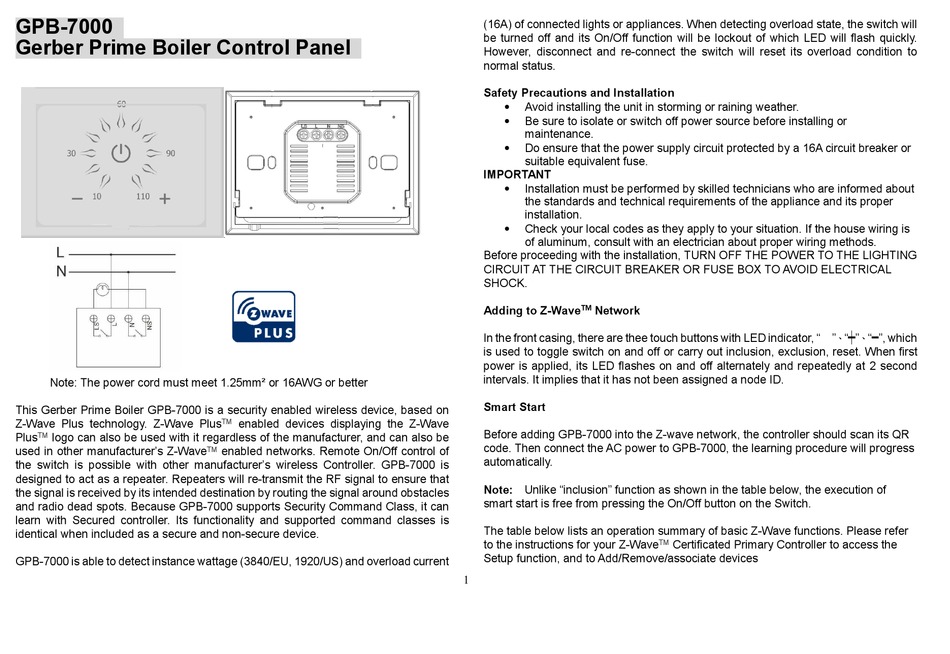

Gerber Prime GPB-7000 Manual

GPB-7000
Gerber Prime Boiler Control Panel
Note: The power cord must meet 1.25mm² or 16AWG or better
This Gerber Prime Boiler GPB-7000 is a security enabled wireless device, based on
Z-Wave Plus technology. Z-Wave Plus
TM
Plus logo can also be used with it regardless of the manufacturer, and can also be
used in other manufacturer's Z-Wave
the switch is possible with other manufacturer's wireless Controller. GPB-7000 is
designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that
the signal is received by its intended destination by routing the signal around obstacles
and radio dead spots. Because GPB-7000 supports Security Command Class, it can
learn with Secured controller. Its functionality and supported command classes is
identical when included as a secure and non-secure device.
GPB-7000 is able to detect instance wattage (3840/EU, 1920/US) and overload current
TM
enabled devices displaying the Z-Wave
TM enabled networks. Remote On/Off control of
(16A) of connected lights or appliances. When detecting overload state, the switch will
be turned off and its On/Off function will be lockout of which LED will flash quickly.
However, disconnect and re-connect the switch will reset its overload condition to
normal status.
Safety Precautions and Installation
•
Avoid installing the unit in storming or raining weather.
•
Be sure to isolate or switch off power source before installing or
maintenance.
•
Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
IMPORTANT
•
Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
installation.
•
Check your local codes as they apply to your situation. If the house wiring is
of aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE LIGHTING
CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID ELECTRICAL
SHOCK.
TM
Adding to Z-Wave Network
In the front casing, there are thee touch buttons with LED indicator, "    "、"┿"、"━", which
is used to toggle switch on and off or carry out inclusion, exclusion, reset. When first
power is applied, its LED flashes on and off alternately and repeatedly at 2 second
intervals. It implies that it has not been assigned a node ID.
Smart Start
Before adding GPB-7000 into the Z-wave network, the controller should scan its QR
code. Then connect the AC power to GPB-7000, the learning procedure will progress
automatically.
Note: Unlike "inclusion" function as shown in the table below, the execution of
smart start is free from pressing the On/Off button on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-Wave
Setup function, and to Add/Remove/associate devices
1
TM
Certificated Primary Controller to access the
