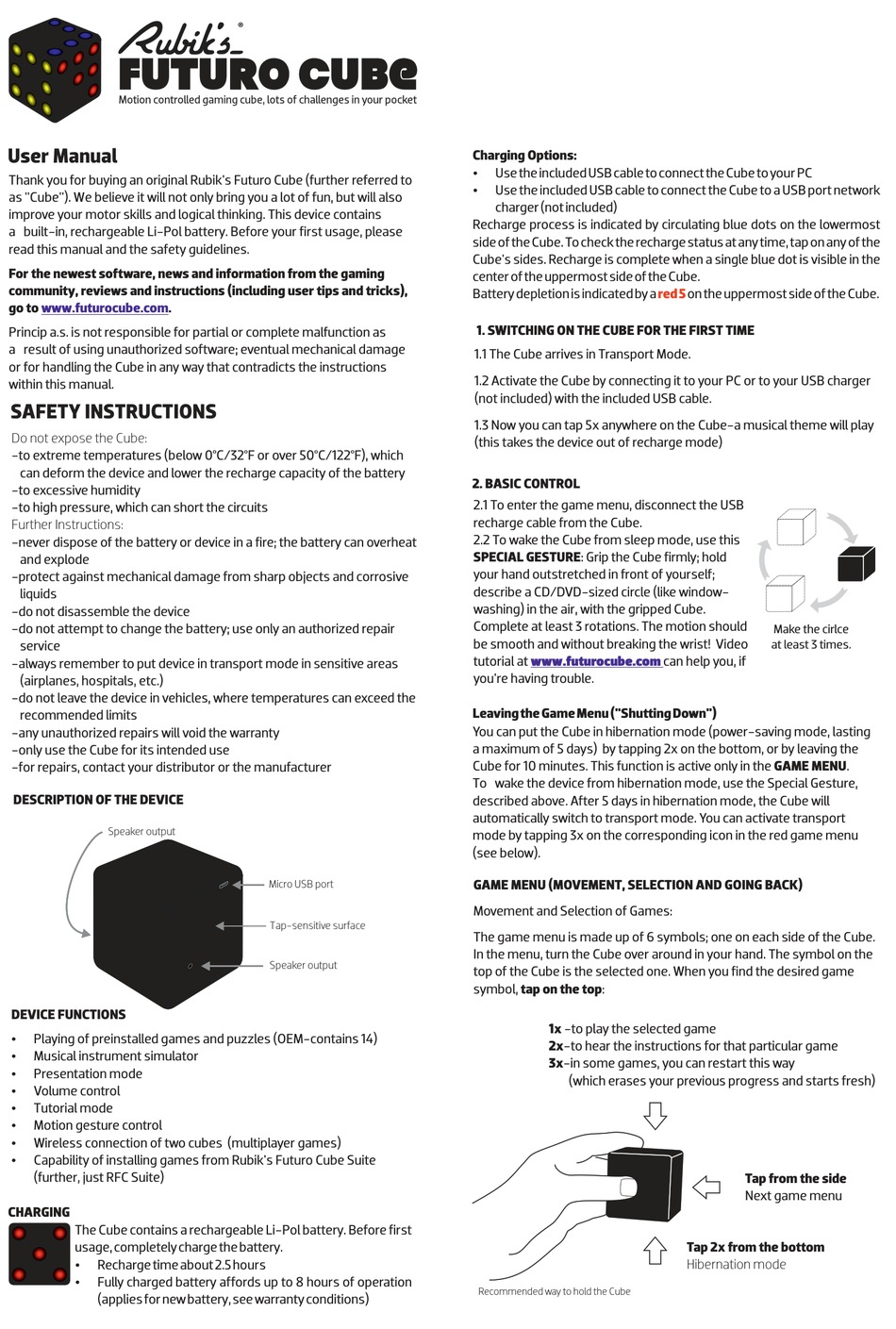

Rubik's Futuro Cube PSC01 User Manual

User Manual
Thank you for buying an original Rubik's Futuro Cube (further referred to
as "Cube"). We believe it will not only bring you a lot of fun, but will also
improve your motor skills and logical thinking. This device contains
a b uilt-in, rechargeable Li-Pol battery. Before your first usage, please
read this manual and the safety guidelines.
For the newest software, news and information from the gaming
community, reviews and instructions (including user tips and tricks),
go to www.futurocube.com .
Princip a.s. is not responsible for partial or complete malfunction as
a result of using unauthorized software; eventual mechanical damage
or for handling the Cube in any way that contradicts the instructions
within this manual.

SAFETY INSTRUCTIONS

Do not expose the Cube:
-to extreme temperatures (below 0°C/32°F or over 50°C/122°F), which
can deform the device and lower the recharge capacity of the battery
-to excessive humidity
-to high pressure, which can short the circuits
Further Instructions:
- ever dispose of the battery or device in a fire; the battery can overheat n
and explode
-protect against mechanical damage from sharp objects and corrosive
liquids
-do not disassemble the device
-do not attempt to change the battery; use only an authorized repair
service
-always remember to put device in transport mode in sensitive areas
(airplanes, hospitals, etc.)
-do not leave the device in vehicles
recommended limits
-any unauthorized repairs will void the warranty
-only use the Cube for its intended use
-for repairs, contact your distributor or the manufacturer
DESCRIPTION OF THE DEVICE
Speaker output
DEVICE FUNCTIONS
Playing of preinstalled games and puzzles (OEM-contains 14)
Ÿ
Musical instrument simulator
Ÿ
Presentation mode
Ÿ
Volume control
Ÿ
Tutorial mode
Ÿ
Motion gesture control
Ÿ
Wireless connection of two
Ÿ
Capability of installing games from Rubik's Futuro Cube Suite
Ÿ
(further, just RFC Suite)
CHARGING
The Cube contains a rechargeable Li-Pol battery. Before first
usage, completely charge the battery.
Recharge time
Ÿ
Fully charged battery affords up to 8 hours of operation
Ÿ
(applies for new battery, see warranty conditions)
, where temperatures can exceed the
Micro USB port
T -sensitive surface ap
Speaker output
cube s ( multiplayer games)
about 2.5 hours
Charging Options:
Use the included USB cable to connect the Cube to your PC
Ÿ
Use the included USB cable to connect the Cube to a USB port network
Ÿ
charger (not included)
Recharge process is indicated by circulating blue dots on the lowermost
side of the Cube. To check the recharge status at any time, tap on any of the
Cube's side s. Recharge is complete when a single blue dot is visible in the
center of the uppermost side of the Cube.
Battery depletion is indicated by a
1. SWITCHING ON THE CUBE FOR THE FIRST TIME
1.1 The Cube arrives in Transport Mode
1.2 Activate the Cube by connecting it to your PC or to your USB charger
(not included) with the included USB cable.
1.3 Now you can tap 5x anywhere on the Cube-a musical theme will play
(this takes the device out of recharge mode)
2. BASIC CONTROL
2.1 To enter the game menu, disconnect the USB
recharge cable from the Cube.
2.2 To wake the Cube from sleep mode, use this
SPECIAL GESTURE: Grip the Cube firmly; hold
your hand outstretched in front of yourself;
describe a CD/DVD-sized circle (like window-
washing) in the air, with the gripped Cube.
Complete at least 3 rotations. The motion should
be smooth and without breaking the wrist! Video
tutorial at
www.futurocube.com
you're having trouble.
Leaving the Game Menu ("Shutting Down")
You can put the Cube in hibernation mode (power-saving mode, lasting
a maximum of 5 day s) by tapping 2x on the bottom, or by leaving the
Cube for 10 minutes. This function is active only in the
To wake the device from hibernation mode, use the Special Gesture,
described above. After 5 days
automatically switch to transport mode. You can activate transport
mode by tapping 3x on the corresponding icon in the red game menu
(see below).
GAME MENU (MOVEMENT, SELECTION AND GOING BACK)
Movement and Selection of Games:
The game menu is made up of 6 symbols; one on each side of the Cube.
In the menu, turn the Cube over around in your hand. The symbol on the
top of the Cube is the selected one. When you find the desired game
symbol, tap on the top :
1x -to play the selected game
2x -to hear the instructions for that particular game
3x -in some games, you can restart this way
(which erases your previous
Recommended way to hold the Cube
red 5 on the uppermost side of the Cube.
.
Make the cirlce
at least 3 times.
can help you, if
GAME MENU
in hibernation mode, the Cube will
progress and starts fresh)
Tap from the side
Next game menu
Tap 2x from the bottom
Hibernation mode
.
