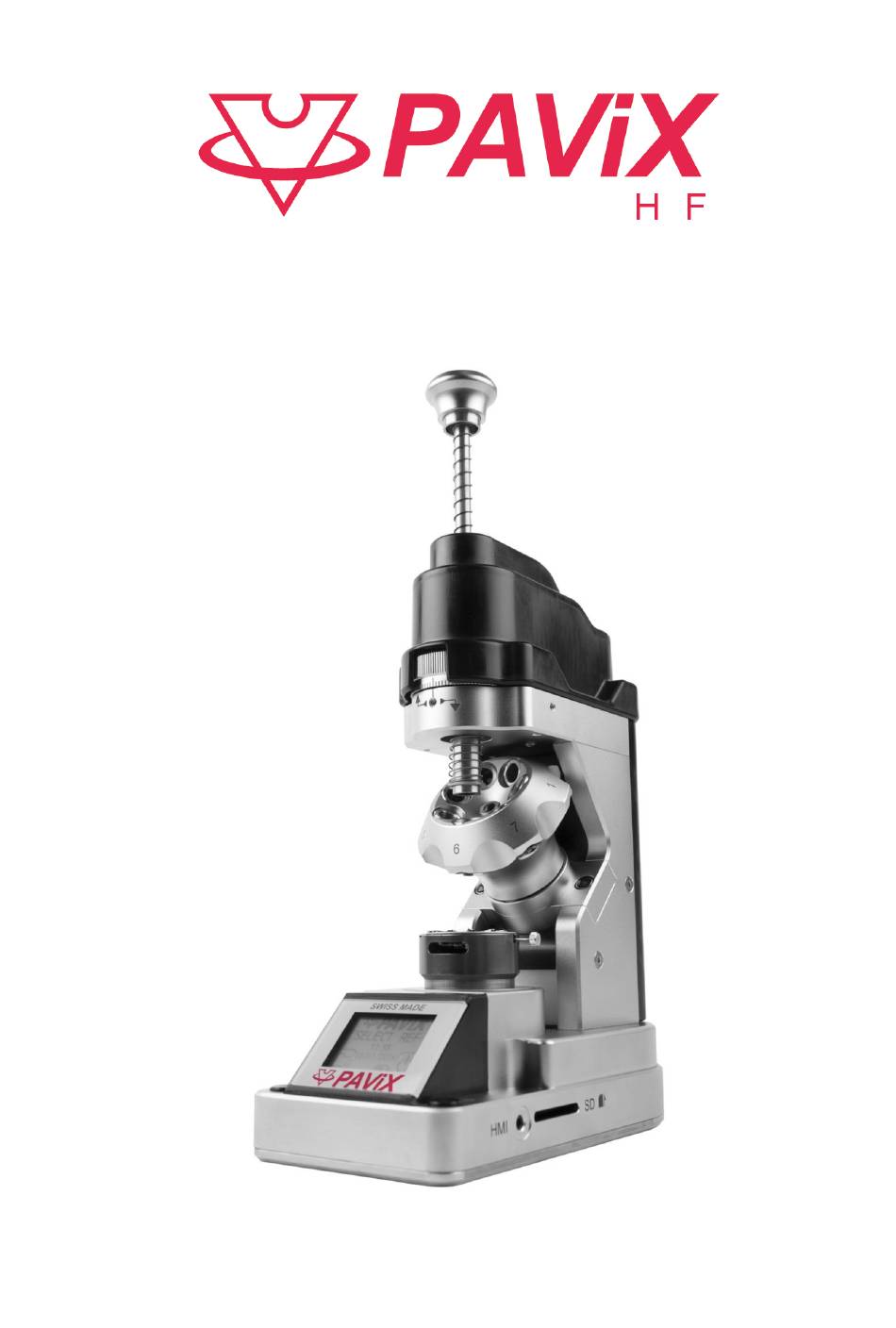

  • Page 1 User Guide Patented V3.2, 01.02.2018...

  • Page 2: Table Of Contents

    Cleat loading / changing .......................... 18 Battery change and recharging ....................... 19 Battery change (CR2032) ........................19 PAViX LCD .............................. 19 Start up ..............................21 Configuration of PAViX settings ......................21 5.6.1 Barrel configuration ..........................22 5.6.2 Recording cleat references ........................ 22 5.6.3...
  • Page 3 VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 3 / 48 5.7.2 Program updates ..........................30 5.7.3 Recovery of hand fitting results ......................30 Software update ............................32 Hand-setting .............................. 33 User identification ............................ 33 Selection of the hand-setting program ....................33 6.2.1...

  • Page 4: General Information

    Figure 1: Seal of warranty The scope of VOH SA’s liability is limited to the repair or the replacement of the product under the terms set out above. VOH SA SHALL NOT BE HELD LIABLE FOR ANY LOSS OR DAMAGES, INCLUDING INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING DIRECTLY OR INDIRECTLY FROM A BREACH OF THE GUARANTEE, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT.

  • Page 5: Transport

    1.4 Storage The PAViX must be stored in a dry and dust-free environment. Storage temperature must be between 10°C and 40°C. It is recommended to cover the device in order to protect it from dust and moisture.

  • Page 6: Content, Accessories And Options

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 6 / 48 3 Content, accessories and options Figure 3: PAViX and accessories...

  • Page 7: Pavix - Hmi

    Figure 6: Home screen and program management In order to create programs, the PAViX may or may not be connected to the HMI using the supplied cable. La status of the staking-tool <-> HMI connection is displayed on the top right-hand corner of the screen.

  • Page 8: Entering Family Names And Programs

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 8 / 48 4.2.1 Entering family names and programs On the home screen, select the navigation icon then press the "+" icon in the left column. Figure 8: Home screen with navigation icon / Home screen with “+” icon / Creating a calibre 4.2.2 Recording a working reference...

  • Page 9: Edition Of Hand-Setting Programs

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 9 / 48 Figure 10: Editing the program To enter the hand type, simply click on the corresponding field to access the page below. A hand name can have a maximum of 4 characters.

  • Page 10: Management Of The Bar Code Database

    4.3.1 Bluetooth interface for HMI This optional interface allows direct communication between the scanner and the HMI. We recommend using a dedicated scanner (to use with the HMI) in order to facilitate the work (VOH Scanner 26.01001.SP.09) Figure 13: Adapter assembly Note: In order to work, the Bluetooth interface for HMI must be powered with the supplied USB power supply.
  • Page 11 VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 11 / 48 Scanner statuses: Status LED Status Comment Continuous Charging (button on the ON or OFF position) Short flash Press scan button Long flash Scan successful Flashing...

  • Page 12: Pairing A Scanner To The Him

    PAViX HMI screen Comment(s) Scanner Check for the presence of the Bluetooth adapter at the back of the PAViX HMI Power it with the supplied USB power supply + USB power supply Click on the “DB” button to access the bar codes <->...

  • Page 13: Bar Codes <-> Program Link

    4.3.5 Bar codes <-> program link The PAViX automatically calls the programs when scanning bar codes. Several bar codes may be assigned to the same program (family + program). Management is conducted via the HMI. Press the “DB” button to access then select the desired program.

  • Page 14: Strategic Management Of Traceability

    Page 14 / 48 4.4 Strategic management of traceability The PAViX offers full operation traceability. General traceability options can be configured from the home page of the PAViX HMI. Press the “TRACK” button to access. Figure 19: Access to traceability options management Traceability is based on a bar code or QR code system.

  • Page 15: Program Import / Export

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 15 / 48 4.5 Program import / export When programs are updated/developed, they may be transferred on a SD card using the SD reader located on the left-hand side of the HMI.

  • Page 16: Importing

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 16 / 48 4.5.2 Importing Below, the program import procedure from the external SD card. The families and programs that do not exist in the HIM are created.

  • Page 17: Software Update

    4.6 Software update If a software update is available, the administrator will receive an e-mail from VOH SA containing a ZIP file called “PAViX_HMI_vx_xx”. In order to update the HMI, open the ZIP file containing a folder called “BL”. Move this folder to an empty SD card then insert this SD card to the HMI (turned off).

  • Page 18: Pavix - Staking-Tool

    Page 18 / 48 5 PAViX - staking-tool The PAViX is equipped with all the technology required to master the setting of hands. It has an adjustable stop driven by a motor, a force sensor and a cleat selection system.

  • Page 19: Battery Change And Recharging

    Page 19 / 48 5.2 Battery change and recharging The PAViX is powered by a battery accessible from the back of the staking-tool. It may be removed using the opening located under the device. Batteries are charged in a dedicated charger.
  • Page 20 1.5 second pressure for the long bar: Figure 31: Simple button (right) and double button (left). To enable the “PAViX settings” function, press and hold down the button The following buttons and icons are used on the PAViX display...

  • Page 21: Start Up

    Page 21 / 48 5.5 Start up Before starting the PAViX, ensure a properly charged battery is in place in the holder located at the rear of the staking-tool. To start the PAViX, simply press and hold the button located on the right-hand side of the LCD screen.

  • Page 22: Barrel Configuration

    The system uses a barrel configuration common to all programs. This configuration can be displayed from the barrel configuration menu. Furthermore, when this menu is displayed, the PAViX motorised stop places itself in the upper position so as to facilitate the loading/unloading of cleats.

  • Page 23: Time/Date

    5.6.3 Time/Date The PAViX offers extended traceability options. For these to be relevant, it is required to set the time on the PAViX clock. This setting is done from the “Time/Date” menu. The selected field is underlined. To change its value, use the barrel and validate with the right-hand side button.
  • Page 24 PAViX - User Guide Created 10.2017 Page 24 / 48 Once the battery has been replaced, the PAViX requires a height reference record. This height reference must be carried out with the standard spindle. The procedure to apply is as follows. PAViX screen...

  • Page 25: User Type Change

    5.6.7 LED The PAViX also provides the option to indicate the hand fitting status in three different colours: orange if the force is below tolerance, green if the force is within the tolerance range and red if the maximum force is exceeded.

  • Page 26: Sleep Timer

    Figure 43: Bluetooth adjustment options 5.6.11 Use of a bar code reader (Bluetooth scanner) If the user wishes to use a bar code scanner, he/she must first connect it to the PAViX. This operation can be done using the “Scanner” menu.

  • Page 27: Information

    (success or not). NOTE: The scanner emits a sound when the connection is established. The PAViX can only pair with one bar code reader (Item no.: 26.01001.SP.09). Figure 45: Bluetooth scanner (Item no.: 26.01001.SP.09) Scanner operation: § 4.3.3 Scanner, page 10.

  • Page 28: Language

    (via the PAViX HMI) Figure 47: Traceability summary NOTE: Traceability settings can also be managed from the PAViX HMI (Refer to § 4.4 Strategic management of traceability, page 14). Note: Continuous ID traceability allows the scanned ID to be stored in the memory when moving to the next movement (Refer to §...

  • Page 29: Program And Data Management

    PAViX - User Guide Created 10.2017 Page 29 / 48 5.7 Program and data management The PAViX “ADMIN” menu allows for the following actions: Recovery of hand fitting results Program updates 5.7.1 Access to the ADMIN menu The Administrator mode (ADMIN) is used to update programs, export results of hand-setting operations saved by the staking-tool as well as reset the device’s memory.

  • Page 30: Program Updates

    Page 30 / 48 5.7.2 Program updates The programs contain the fitting parameters required for hand setting operations. In order to use the PAViX, it must contain hand-setting programs that are transferred using a SD card according to the following procedure: PAViX screen...
  • Page 31 Results are sorted by staking-tool and by program If a program is already present, data is added at the end of the file Below is an overview of a PAViX export opened on a Windows PC: Figure 48: SD on PC and SD tree structure...

  • Page 32: Software Update

    Page 32 / 48 5.8 Software update If an update is available, the administrator will receive an e-mail from VOH SA containing a ZIP file called “PAViX_potence_vx_xx”. In order to update the staking-tool, open the ZIP file containing a folder called “BL”.

  • Page 33: Hand-Setting

    6.1 User identification When starting the PAViX, the user is prompted to identify from the home screen. Identification is carried out with the bar code scanner. Figure 51: Home screen without a scanner then in User or Expert mode with a connected scanner The graph located above the “ON/OFF”...

  • Page 34: Automatic Loading Of The Bar Code Program

    For automatic selection by bar code, the user uses the bar code scanner to select a program. The link between a bar code and a program is done in the PAViX HMI (Refer to § 4.3 Management of the bar code database, page 10).

  • Page 35: Performing A Hand-Setting Operation

    Press the spindle down so the cleat comes into contact with the movement and the light turns green (meaning the force has been reached). When it is green for >2s, the PAViX records the reference.
  • Page 36 6.3.1.2 Taking movement holder reference with the scanner Using the bar code reader streamlines taking of reference 0. The PAViX provides the option to store the heights of the part-holder so as to avoid recording this reference when starting the program. To do this, the part-holders must have bar codes.

  • Page 37: Hand-Setting

    Figure 54: Hand fitting result screen When the user selects an active cleat (by turning the barrel), the PAViX automatically adjusts the stop height as well as the information displayed on the screen. During the adjustment of the height, the luminous surface flashes blue.
  • Page 38 Version 3.2 PAViX - User Guide Created 10.2017 Page 38 / 48 The operator is guided by the PAViX during the hand-setting operations, as shown in the diagram below. PAViX screen Comment(s) If ID traceability is enabled and a scanner is connected, the PAViX prompts the operator to enter a movement identification bar code.

  • Page 39: Hand-Setting Operation Results

    Page 39 / 48 6.3.3 Hand-setting operation results The PAViX is used to carry out hand-setting operations on an industrial scale. Productivity is critical while maintaining operation traceability and control. The result of a hand-setting operation is determined based on the force applied to the hand when the spindle comes into contact with the stop.

  • Page 40: Height Corrections

    Page 40 / 48 In order to manage cases very close to the upper limit, the PAViX is equipped with an intelligent system that takes into account human reaction time (0.1s). If the measured force exceeds the max tolerance by less than 10% in a time interval smaller than 0.1s before stop detection, the operation is considered successful.

  • Page 41: Exclusion Of Liability/Guarantee

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 41 / 48 7 Exclusion of liability/guarantee Damages caused by conditions of use, transport or storage non-compliant with the conditions described in this manual are not supported by the manufacturer. Changes to the device and opening of the casing are forbidden and lead to exclusion of liability.

  • Page 42: Cleaning Of Spindle Smooth Bearings

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 42 / 48 8.2 Cleaning of spindle smooth bearings Frequency: Once a week (depending on use) Equipment required: Light Benzine Cotton buds Stage Description Remove the spindle Dampen a cotton bud...

  • Page 43: Sensor Inspection

    Comment(s) PAViX The Maintenance menu is accessible via one of the configuration pages: press and hold the PAViX left-hand side button to enter the Setting mode. Then, by rotating the barrel twice to the left, the Maintenance menu will appear.

  • Page 44: Verifying Force Measurement Accuracy

    Confirm with the right-hand side button. Then place the calibration plate in place of the spindle, resting on the standard spindle. Validate using the right- hand side button The PAViX automatically tares the force: do not touch the calibration plate of the PAViX plate.
  • Page 45 VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 45 / 48 Validation procedure: PAViX screen Comment(s) PAViX 1) Delicately place the required mass on the plate. Confirm placement using the right-hand side button. 2) Once the measurement is stable, confirm using the right-hand side button.

  • Page 46: Force Calibration

    (<= 2.0). If the error on the extent of measurement is >2.0, it is not possible to save the calibration. 3 consecutive calibrations can be carried out with a result >2.0; after which, VOH SA must be contacted.

  • Page 47: Distance Validation

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 47 / 48 8.4.4 Distance validation Equipment required: Position accuracy verification kit VOH 26.01001.SP.10 Fitting procedure PAViX screen Comment(s) PAViX Remove the cleat in position under the spindle.

  • Page 48: Representation/Distribution

    VOH SA GU-04-06-01 Version 3.2 PAViX - User Guide Created 10.2017 Page 48 / 48 If the measures are correct, the screen displays “OK”. When the measures do not meet machine specifications, please contact VOH SA. 9 Representation/distribution...
