DIGITAL AUTOMATIC

BLOOD PRESSURE MONITOR

USER MANUAL

MODEL : MD41W0/MD41W1

Table of Contents

Need help?

Do you have a question about the MD41W0 and is the answer not in the manual?

Questions and answers

Summary of Contents for FiT MD41W0

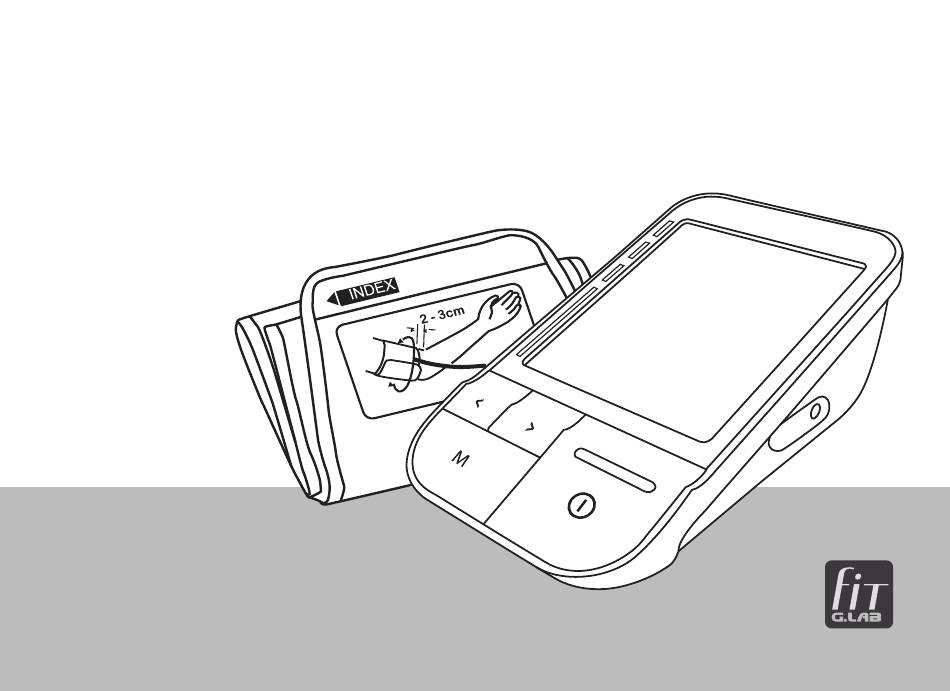

Page 1 DIGITAL AUTOMATIC BLOOD PRESSURE MONITOR USER MANUAL MODEL : MD41W0/MD41W1...
Page 2 INTRODUCTION Thank you for purchasing this blood pressure monitor. Please read this manual thoroughly before use. Contact your physician if you have any queries about your blood pressure. This fully automatic instrument utilizes the non-invasive oscillometric method, which detects your blood movement through you brachial artery, for measuring your blood pressure and pulse rate, and the result will display on a digital panel.
Page 3: Safety Notes
SAFETY NOTES WARNING indicates a hazardous situation which, if not avoided, WARNING could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided, CAUTION may result in minor or moderate injury. WARNING • Consult your physician before starting to measure your blood pressure. •...
Page 4 SAFETY NOTES • Please note that technically related measuring tolerances are possible. Please see the section “TECHNICAL SPECIFICATION”. • Any cuff related blood pressure measurement in high repetition rates, can lead to severe measurement side effects, e.g. - A nerve compression with temporary wrist/ hand paralysis - The release of an arterial or venous thrombus, which can cause a life threatening situation.
Page 5 SAFETY NOTES • Proper cuff size is important for accurate measurements. Only use the device on adults who have the right upper arm circumference for this unit. See “TECHNICAL SPECIFICATION” for suitable arm circumferences. • Electromagnetic interference: Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g.
Page 6 SAFETY NOTES CAUTION • This device should not be used when your arm has been wounded/ injured or when a catheter has been inserted. Such use may result in injury. • Remove any kind of arm jewellery or the like before taking a measurement. This could cause bruises. •...
Page 7: Maintenance And Storage
MAINTENANCE AND STORAGE • The blood pressure monitor is constructed by precision electronic components. Accuracy of readings and the instrument’s service life depend on careful handling. Protect the unit against hard knocks (e.g. dropping the unit), moisture, water, dirt, dust, chemicals, extreme hot or cold temperatures, major temperature fluctuations, direct exposure to sunlight and heat sources which are too close (e.g.
Page 8: Part Identification
PART IDENTIFICATION Air Connector Plug Display Arm Cuff DC Jack Air socket Index Mark Air Hose Increase Decrease Start / Stop Memory Button Button Button Button Button Operations • Go to standby mode Press button. Battery Door * The device goes to clock mode if idle for 2 min. •...
Page 9: Display Readings
DISPLAY READINGS Communicating Icon Alarm 1 Alarm 2 WIFI Transmission Icon Low Battery Indicator Severe Hypertension Moderate Hypertension Systolic Pressure Date Time Memory Mild Hypertension Average of Previous High Normal Measurement Pressurizing USER Normal Releasing Air Optimal Diastolic Pressure Irregular Heartbeat Pulse Rate Indicator...
Page 10 CLOCK MODE & STANDBY MODE Clock Mode Standby Mode...
Page 11: Install/ Change Batteries
INSTALL/ CHANGE BATTERIES 1. Push the battery cover located on the bottom side on the unit as shown in the figure. 2. Remove old batteries and insert new ones. Use LR03 or AAA alkaline batteries and use batteries of the same type only.
Page 12 USE OPTIONAL AC ADAPTOR (Accessory item sold separately) 1. Insert the AC adapter cord into the socket on the right side of the device. 2. Insert the AC adapter plug into the outlet. 3. To remove the AC adapter, first disconnect the adapter plug from the AC outlet, then the adapter cord from the device.
Page 13 [<] and [>] buttons for 3 seconds to enter “AP” mode. “AP” mode. 15. “AP” is shown and “ ” WIFI icon will blink. 16. Install and open the application (APP) - G.LAB fit Install the on your smartphone or tablet. Go to the setting manual application and click [Change WIFI network].
Page 14 TO SET ALARM CLOCK 1. To enter the alarm clock setting mode, press and hold [ ] button until Alarm 1 [ ] icon or Alarm 2 [ icon is flashing on the display. Press [<] / [>] to select between [ ] and [ ].
Page 15 TO APPLY ARM CUFF 1. Pass the end of the cuff furthest from the tubing through the metal ring to form a loop. The smooth cloth should be the inside of the cuff loop. 2. Put your left arm through the cuff loop. The bottom of the cuff should be approximately 2 – 3 cm above the elbow.
Page 16 BEFORE MEASURING BLOOD PRESSURE 1. Applying the arm cuff, following the instruction in “TO APPLY ARM CUFF”. 2. Rest at least for 5 minutes before each measurement. Otherwise there may be erroneous results. 3. Sit comfortably on a chair with your feet flat on the floor. Do not cross your feet. Place your left arm on a table so the cuff is level with your heart.
Page 17 TO MEASURE YOUR BLOOD PRESSURE 1. Follow the instruction in “BEFORE MEASURING BLOOD PRESSURE” to make yourself ready. 2. Press [ ] button to turn the device from clock mode to standby mode. 3. Press [<] / [>] to select user memory 1,2,3 or 4. Confirm selection by pressing [ ] button.
Page 18: Pressure Bar Indicator
PRESSURE BAR INDICATOR The indicator monitors the progress of pressure during measurement. Pressurizing Measurement in progress...
Page 19: Who Classification Indicator
WHO CLASSIFICATION INDICATOR Each of the six segments of the bar indicator corresponds to the WHO blood pressure classification. WHO Classification Indicator: Severe Hypertension Moderate Hypertension Mild Hypertension High Normal Normal Optimal...
Page 20 TO RECALL AVERAGE AND PREVIOUS MEASUREMENT DATA This device has a memory capability to store the measurement readings for each user. Every time you complete the measurement, the device automatically stores the measurement result. 1. Press [ ] button in standby mode to enter the memory mode, the average blood pressure for the latest 3 measurements is displayed.
Page 21 TO DELETE MEASUREMENT DATA 1. Press [ ] button simultaneously when the device is showing average or previous measurement data of selected user. 2. Press and hold [ < ] and [ > ] for 3 seconds until [CL] and [00] are shown. 3.
Page 22 When using the skill, you need to specify the name which the blood pressure monitor use and also specify the user ID. Use the blood pressure monitor name(s) you set up already. These are shown in the G.LAB fit app.
Page 23: What Is An Irregular Heartbeat
WHAT IS AN IRREGULAR HEARTBEAT This blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement.
Page 24: About Blood Pressure
ABOUT BLOOD PRESSURE What Is Blood Pressure? Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg).
Page 25: Troubleshooting
TROUBLESHOOTING Batteries are drained Replace all batteries with new ones Nothing appears in the display, even Battery polarities are not in Re-install the batteries with their when the power is the correct position negative and positive ends matching turned on their indicated in the battery compartment Loose in plug or contact with...
Page 26 TROUBLESHOOTING Check whether tube connection of The cuff may not be applied ERROR code 3 the cuff is secured to the unit (E3) properly appears If you have a very weak or irregular The unit does not measure ERROR code 4 heart beat, the device may have (E4) difficultly in determining your blood...
Page 27: Technical Specification
TECHNICAL SPECIFICATION Display : LCD Display Measurement Range : Systolic Pressure: 50-250 mmHg ; Diastolic Pressure: 30-200 mmHg Pulse : 40-180 beats/minute Accuracy : Pressure : +/-3 mmHg Pulse : +/-5% of reading Resolution : Pressure : 1 mmHg Pulse : 1 beat / minute Measurement Method : Non-invasive, Oscillometric method Power Source...
Page 28 SYMBOLS Function / Meaning Symbols Serial Number Manufacturer Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. Systolic Blood Pressure in mmHg Diastolic Blood Pressure in mmHg Pulse EC Directive Medical Device Label Caution Authorized Representative in the European Community WEEE Label Refer to instruction manual / booklet...
Page 29 Appendix I The Sphygmomanometer ( MD41W0/MD41W1 ) is intended for use in the electromagnetic environment specified below. The customer or the user of the Sphygmomanometer ( MD41W0/MD41W1 ) should assure that it is used in such an environment. Conducted and...
Page 30 The Sphygmomanometer ( MD41W0/MD41W1 ) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer ( MD41W0/MD41W1 ) should assure that it is used in such an environment. Floors should be wood, concrete or Electrostatic discharge ±...
Page 31 Appendix II The Sphygmomanometer ( MD41W0/MD41W1 ) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer ( MD41W0/MD41W1 ) should assure that it is used in such an environment. IEC 60601 Immunity test...
Page 32 NOTE These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. r.m.s., before modulation is applied. The ISM (industrial, scientific and medical) bands between 0,15 MHz and 80 MHz are 6,765 MHz to 6,795 MHz;...
Page 33 Appendix III Recommended separation distances between portable and mobile RF communications equipment and the Sphygmomanometer ( MD41W0/MD41W1 ) MD41W0/MD41W1) The Sphygmomanometer ( is intended for use in an electromagnetic environment in which radiated MD41W0/MD41W1 RF disturbances are controlled. The customer or the user of the Sphygmomanometer (...
Page 34 Appendix IV This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 35 Symbol for the marking of electrical and electronics devices according to Directive 2002/96/EC. The device, accessories and the packaging have to be disposed of waste correctly at the end of the usage. Please follow Local Ordinances or Regulations for disposal. Grandway Technology (Shenzhen) Limited, Block 7, Zhu Keng Industrial Zone, Ping Shan District, 518118 Shenzhen,...
