Radium DMR Installation Instructions

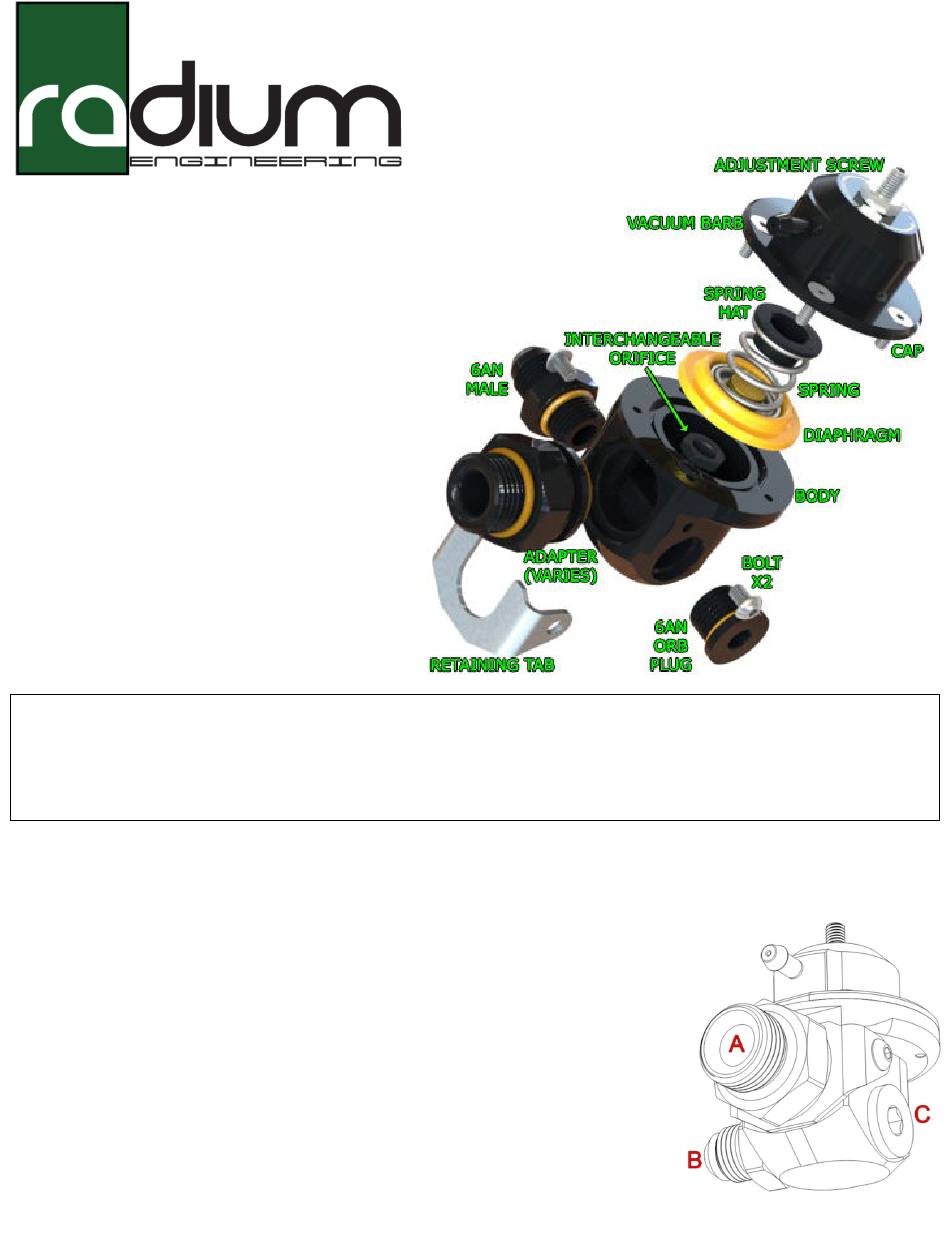

1x DMR Assembly:
-Billet Aluminum Body
-Billet Aluminum Cap
-Orifice
-Spring, Grounded
-Spring Hat
-Diaphragm
-Vacuum Barb
-Set Screw, Stainless
-Jam Nut, Stainless
-5 Cap Bolts, Stainless
1x Fitting, 6AN ORB Plug
1x Fitting, 6AN Male
1x Interchangeable Orifices
1x Retaining Tab, Stainless
2x Bolt, Stainless
1x Adapter (varies with kit)
WARNING! Exercise extreme CAUTION when working with fuel systems. Do not smoke or expose the
working area to any spark or flame. Work in a well-ventilated area. Clean up all spilled fuel immediately
and dispose cleaning materials in a sealed metal trash container. Relieve fuel pressure prior to working on
the fuel system. To prevent failure, all O-ring fittings MUST be lubricated prior to assembly.
The DMR is a high flowing Radium Engineering fuel pressure regulator that mounts directly to a fuel rail. The fuel rail adapter
features a unique O-ring design that permits the entire unit to swivel when installed (Port A). For ideal hose routing, either of the
two opposing 6AN ORB (9/16"-18 threaded) female ports (B and C) can be used for the fuel return connection. The unused return
port should be plugged using the included fitting.
FITTINGS AND PORTS
A Pressure regulated inlet port from fuel rail, via adapter.
B
Return outlet port, 6AN ORB (9/16"-18). Can be swapped with C.
C Return outlet port, 6AN ORB (9/16"-18). Can be swapped with B.
!!DO NOT INSTALL A PRESSURE GAUGE INTO PORTS B or C!!
These ports are for fuel return back to the fuel tank and not for pressure reading.
Installation INSTRUCTIONS
DIRECT MOUNT REGULATOR (DMR)
1
Document# 19-0108
Support: info@radiumauto.com
