INSTALLATION AND OPERATION MANUAL
TECH SUPPORT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL
CNGE1IPS-95
INDUSTRIAL 60/95W POWER OVER ETHERNET (POE++)
MIDSPAN INJECTOR FOR 10/100/1000T(X)

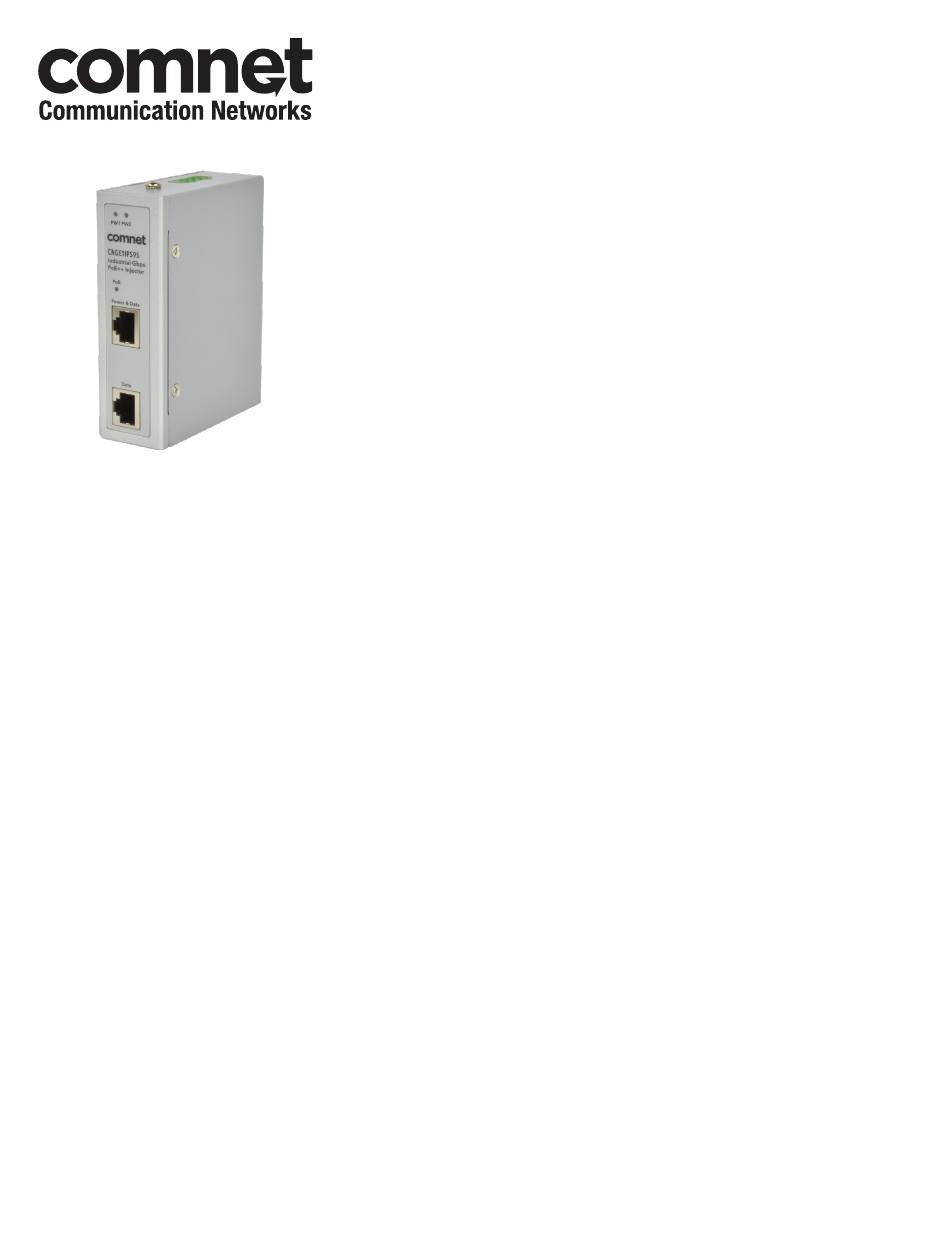

The ComNet CNGE1IPS95 is an industrial power over Ethernet (PoE+) midspan
injection module that injects 50-57 VDC at up to 95 W to any network cable.
Operating power and 10/100/1000T(X) Ethernet data are easily combined on one
cable, eliminating the need to install additional power outlets and electrical cabling.
The CNGE1IPS95 is fully compliant with the requirements of IEEE 802.3at for
Power Sourcing Equipment (PSE), and features auto detection of powered devices
(PDs). Transmission distances of up to 330 feet (100 meters) are supported, and
this injector supplies operating power for all PDs drawing a maximum of 95 watts.
Ideally suited to fiber optic, wireless, or other networks where it may be difficult to
furnish operating power to the PDs, the CNGE1IPS95 is a true plug-and-play product
requiring no user configuration or other set-up.
CNGE1IPS-95
INS_CNGE1IPS95 | 05/02/18 | PAGE 1
Advertisement
Table of Contents
Summary of Contents for Comnet CNGE1IPS-95
- Page 1 INDUSTRIAL 60/95W POWER OVER ETHERNET (POE++) MIDSPAN INJECTOR FOR 10/100/1000T(X) The ComNet CNGE1IPS95 is an industrial power over Ethernet (PoE+) midspan injection module that injects 50-57 VDC at up to 95 W to any network cable. Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling.
- Page 2 INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 Contents FCC Marking CE Marking Trademarks Introduction Installation package Power connection Specifications Housing Dimensions (mm) TECH SUPPORT: 1.888.678.9427 INS_CNGE1IPS95 | 05/02/18 | PAGE 2...
- Page 3 INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 FCC Marking This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 Introduction This rugged designed Industrial Gigabit PoE Injector supports high-powered PoE function, being able to power up a PD device up to 95 Watts. It will not only pass data traffic, but also provide PSE power to your PD WiFi or IP CAM application. This product has been rigorously tested with various PD models, including the 95-Watt Bosch MIC camera in harsh environment applications.
-
Page 5: Installation Package
INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 Installation package The following items are shipped with this device: » DIN-Rail Bracket » Wall-Mount Plates (2) » Screws (4) » 4-pin Terminal Block TECH SUPPORT: 1.888.678.9427 INS_CNGE1IPS95 | 05/02/18 | PAGE 5... -
Page 6: Power Connection
INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 Power connection This unit provides a 4-pin terminal block. It can be operated using 48-56 VDC power source. Always make sure that your input voltage is within this supported voltage range. To make power connection – Follow the printed polarity for V+, V- and Ground. Connect positive wire to V+, connect negative wire to V- and also connect neutral wire to ground. -
Page 7: Led Indicators
INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 LED Indicators Signal Definition Solid PoE is active PoE is inactive Flashing PoE is detecting Power 1 is connected No power detected at Power 1 input Power 2 is connected No power detected at Power 2 input TECH SUPPORT: 1.888.678.9427... -
Page 8: Specifications
INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 Specifications IEEE Standard IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for PoE IEEE802.3at for PoE+ Compliant with 95W Power over HDBaseT (PoH) standard (Microsemi) Network Connector 1xRJ-45 10/100/1000BaseT(X) Data... - Page 9 INSTALLATION AND OPERATION MANUAL CNGE1IPS-95 Certifications EN55022/24 ITE equipment EN55011 Industrial, Scientific and Medical (ISM) equipment Safety IEC EN60950-1 EMC/EMS CE, FCC, VCCI FCC Part 15 Subpart B Class A, CE EN 55022 Class A Vibration EN 50155 / EN 60068-2-6...
- Page 10 T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET TECH SUPPORT: 1.888.678.9427 © 2018 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. INS_CNGE1IPS95 | 05/02/18 | PAGE 10...
