CMM-9304-V2.1
Bluetooth 4.2/5.0 compatible module
1.0
Description
The CMM-9304-V2.1 module is a miniaturised Bluetooth® Low Energy module based on EM
Microelectronic's low power fully integrated Bluetooth® low energy single-chip EM9304. Built in with a
highly efficient PCB antenna, this small sized, low cost module boasts one of the best power
consumption characteristics combined with outstanding Bluetooth Low Energy performances.
The flexible architecture of the EM9304 allows it to act as a companion IC to any ASIC or MCU-based
product, or as a complete System-on-Chip (SoC).
The module offers various possibilities of control via a simple SPI/UART interface: Host Controller
Interface (HCI) with the internal Bluetooth® v5.0 link layer; proprietary Application Controller Interface
(ACI) with the in-built Bluetooth® v4.2 stack, several profiles, and over-the-air firmware (FOTA)
updating routines.
1.1
Features
o Utilize EM Microelectronic's Bluetooth® 5.0 subsystem qualified (QDID 93999) EM9304 chip
o Concurrent Master and Slave roles BLE compliant to Bluetooth® 5.0 specification
o Embedded Bluetooth® 4.2 stack and profiles, low-power Bluetooth® 5.0 physical layer, Link Layer
with security engine, and a Host Controller Interface (HCI)
o Low average current consumption
3.0 mA typical peak receiver current (3V powered)
5.2 mA typical peak transmitter current at 0.4 dBm (3V powered)
1.0 uA connect sleep mode current (3V powered)
0.005 uA disable mode current (3V powered)
o High sensitivity : -93dBm Bluetooth low energy receiver sensitivity for 255 bytes PDU
o Small-sized (14.0mm x 17.0mm)
o Integrated Antenna on module, with external antenna connection option
o Wide range programmable RF output (-34 to +6.1 dBm) for current consumption optimization.
o No Tuning necessary
o SPI interface/UART interface to external micro-controller
1.2

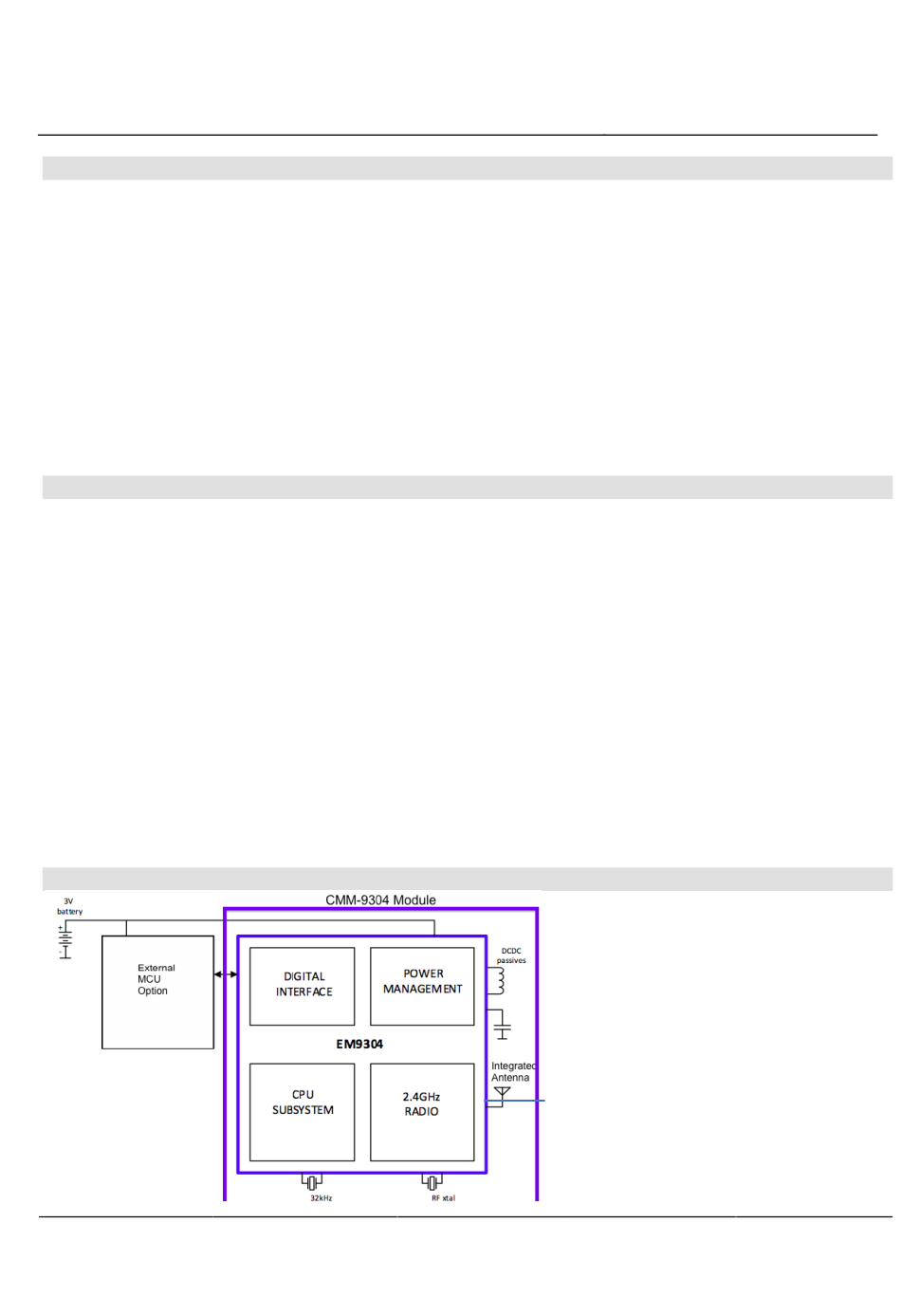

Block Diagram
SPEC No.
CMM-9304-V2.1
BLE module
Revision
State
2.8
2017-11-13
This Module is limited to OEM installation ONLY
C-MAX printed
2017-11-13
C-MAX
Version
English
1 of 11
Page
