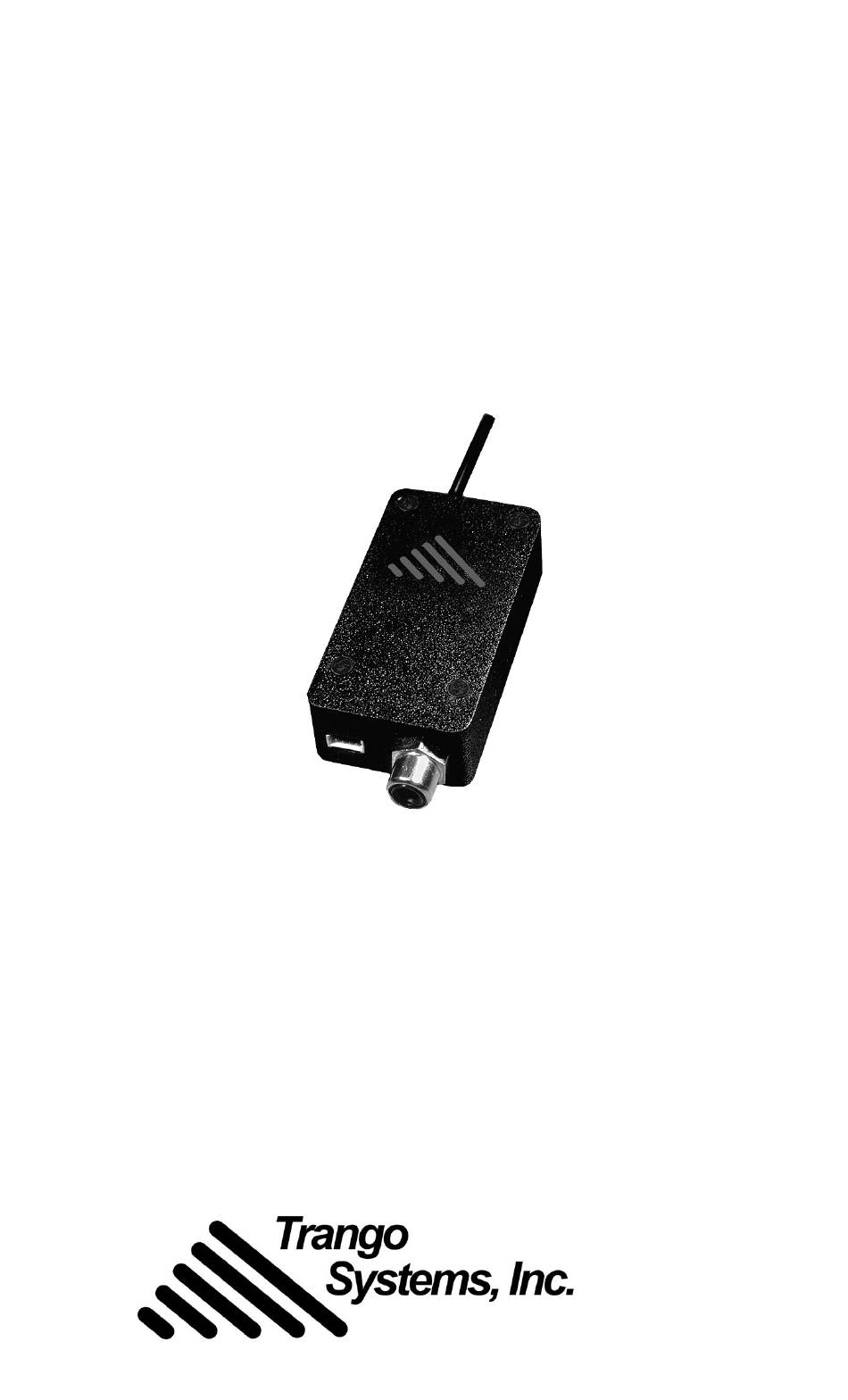

MTX-2500 ™ 2.4GHz Wireless Video/Audio Transmitter Operating Instructions THE LEADER IN WIRELESS VIDEO... - Page 2 (2) this device must accept any interference received, incluing interference that may cause undesired operation. ¤ M-MTX_A.p65 All rights reserved. © 2001 Trango Systems, Inc. 9939 Via Pasar, San Diego CA 92126-4559 +1 858-653-3900 techsupport@trangosys.com www.trangosys.com MTX-2500 Operating Instructions...
-
Page 3: System Description
The MTX-2500 ™ Wireless Video/Audio Transmitter Congratulations on choosing the MTX-2500 video/audio transmitter from Trango Systems. When unpacking the unit, verify that the follow- ing items are present: • MTX-2500 transmitter • attached omnidirectional antenna • combination input cable with connectors for power (nine-volt battery) and audio (RCA) If any items are missing, notify your sales representative. - Page 4 MONITOR VIDEOCAMERA or CAMCORDER CABLE 2 Connect the power/audio cable to the MTX-2500 and attach a nine- volt battery. Note: the unit will operate between 6 and 13.8 volts DC, if you desire to use a different power source. ...
-
Page 5: Receiver Operation
60° 45° 4 Move and adjust the orientation of the MTX-2500 and receiver un- til the best picture is obtained. The best picture will be obtained when orienting the MTX-2500 within the receiver antenna beam width, unobstructed, as shown. -
Page 6: Transmission Range
Service If the unit ever needs repair service, contact your Trango Systems, Inc., dealer for return authorization and shipping instructions. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 7: Troubleshooting
Video Too Dark. Make sure that any monitors and other peripheral equipment connected to the video source are set to high impedance ter- mination since the MTX-2500 transmitter has a built-in 75Ω termina- tion. Video Too Bright. Make sure that the receiver video output line is terminated with 75Ω. - Page 8 Trango Systems technical support online: www.trangosys.com voice: +1 858-653-3900...
