Telemetrics CAM-CMBKT Installation Instructions

CP-ITV Pan/Tilt Video Camera Mounting Accessories
The CAM-CMBKT is a light duty ceiling mounting bracket intended for use with the pan/tilt cameras in the Telemetrics CP-
ITV system. It is has a hollow body to allow concealed cable routing if desired. The adjustable head allows for 360 degree
rotation as well as varying tilt angles for a wide range of camera positions.
Total Load - 20 lbs.

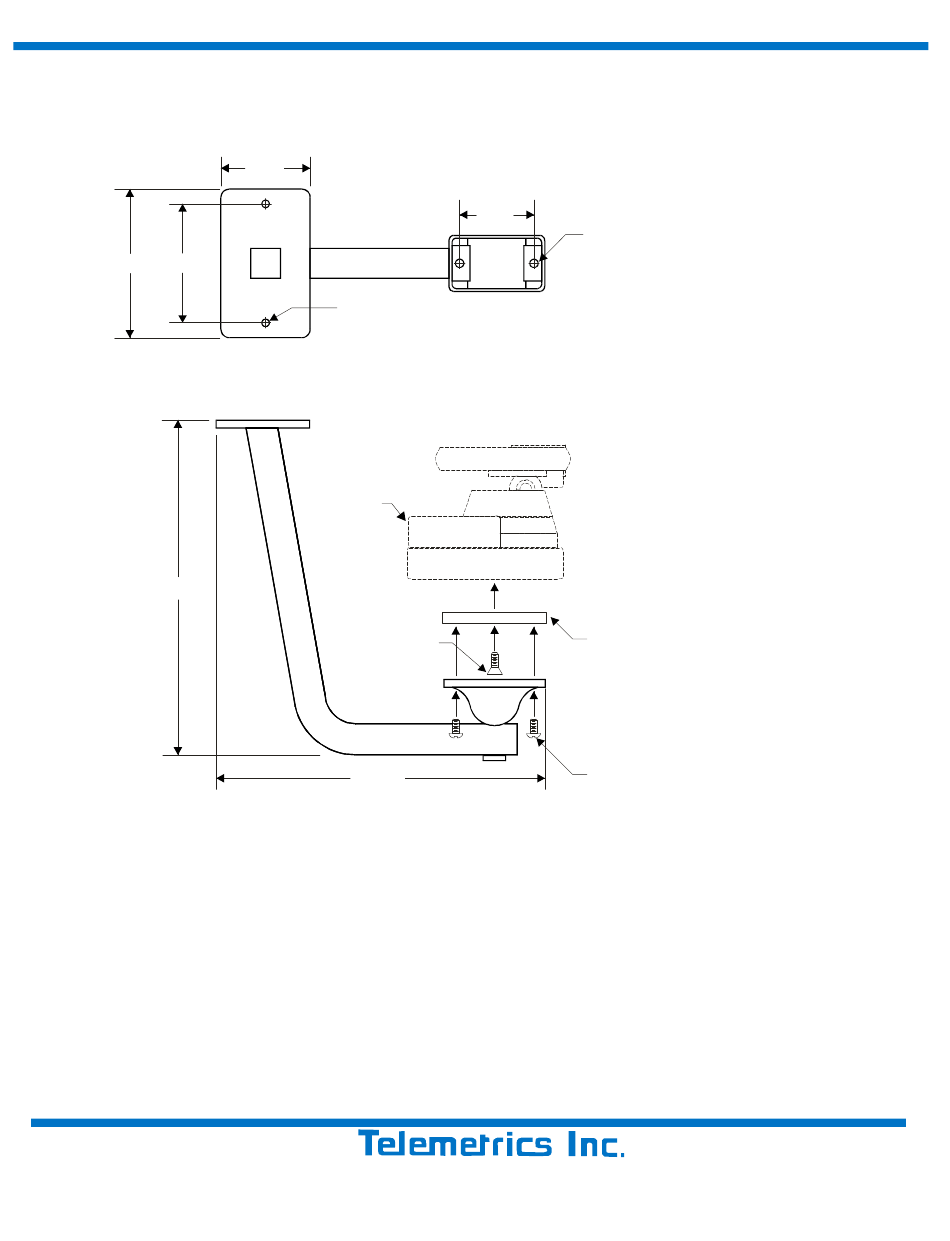

5.00" 4.00"
10.50"

Material List:

(1) Mounting Plate 54252 000
(1) ¼-20 x 5/8 FH Screw
(2) ¼-20 x ½ PH Screw
Installation Instructions:
1. Mount the bracket to the ceiling using the two ¼"holes and proper hardware for the mounting surface.
2. If routing the cables through the bracket, run the unterminated wiring through the hole allowing enough slack
for camera movement.
3. Terminate the wires with the required connectors.
4. Mount the adapter plate to the bottom of the camera using the ¼-20 flathead screw provided.
5. Mount the camera assembly to the bracket using the two ¼-20 pan head screws provided.
Ref: 14700162
Specifications and features subject to change without notice.
3.00"
.25"Dia
2 Holes
Camera
¼-20 x 5/8 FH
10.75"
Mahwah, New Jersey, U.S.A. 07430
Phone: (201)848-9818 Fax: (201)848-9819
www.telemetricsinc.com
2.50"
.28"Dia
2 Holes
Mounting Plate
54252 000
¼-20 x ½ PH
6 Leighton Place
CAM-CMBKT
Caution
Due to variation of wall and
ceiling construction, hardware
for mounting the brackets is not
provided. Exercise care when
securing bracket. Installation
should be verified for proper
fastening and safety.
3/03 printed in U.S.A.
