Summary of Contents for Sky Dragon SR210-20

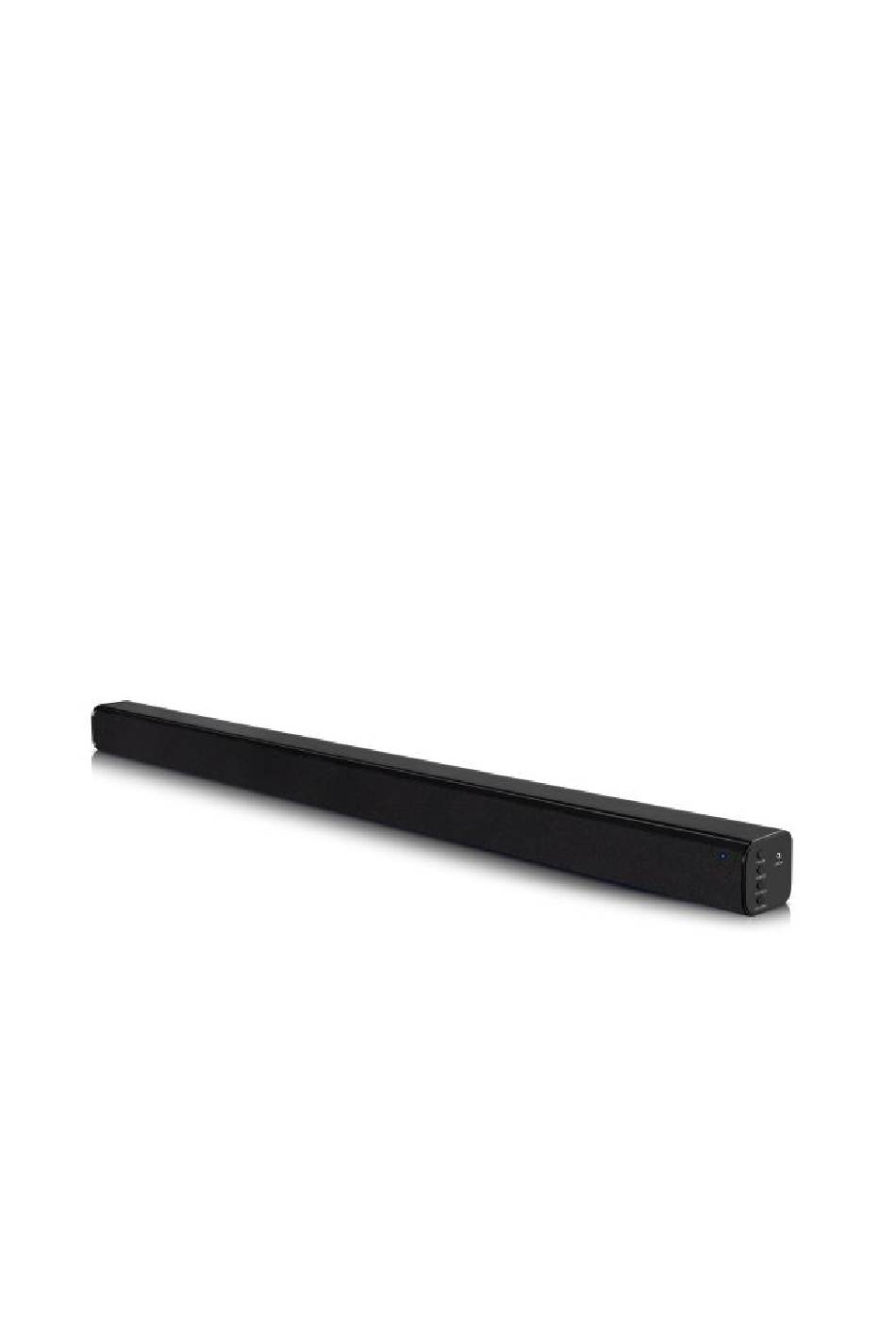

- Page 1 Bluetooth Soundbar Instruction manual SR210-20...
-
Page 2: Table Of Contents
Electrical conducts: ......................2 Technical conducts: ......................2 Operational conducts: ....................... 2 Environmrntal conducts: ....................2 Overview .......................... 3 Product........................ 3 Function indicator LED ..................3 Remote........................ 3 Operation ......................... 4 Install the Remote Control: ................. 4 Get Started: ......................4 Bluetooth Pairing: .................... -
Page 3: Electrical Conducts
Electrical conducts: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. Before you connect the appliance, ensure the voltage rating on the type plate corresponds to your mains voltage (type plate is located on the back side of the unit). Technical conducts: Repairs to electrical appliances should only be performed by qualified personnel. -
Page 4: Overview
Do not use this appliance outdoors. Overview Product /SORUCE：Short press boot, short press conversion function, long press shutdown; 2: VOL＋：Short or long volume up; 3: VOL－：Short or long volume down; 4: PAIR： Short or long press Bluetooth pair; 5: AUDIO IN; 6: AUX IN (L/R);... -
Page 5: Operation
8: MUTE ：Short press mute and open sound ：Short push Bluetooth mode; long press Bluetooth pair; 10: AUX IN：Short push AUX IN mode; 11: OPTICAL IN：Short push OPTICAL IN mode; 12: DIALOG ：Short click speech sound effect; 13: MOVIE ：Short press cinema sound effect; 14: VOL＋... -
Page 6: Optical Source
3: Turn on the Bluetooth function on your devices and the device will start to search for the Soundbar. 4: Select ”SR210-20” from the list of found devices. 5: If asked, enter the password”0000” and press OK. 6: When successfully paired with your device, the indicator light will be lit steadily. -
Page 7: Hdmi Source
2: Press the AUDIO IN button on the remote control to enter the mode. You can also short press the source button on the soundbar to choose the AUDIO IN source. 3: The indicator light will lit in green. Note: The playback is controlled by your device and by the buttons on the remote control and the soundbar. -
Page 8: Specifications
Specifications Product name SR210-20 Output power 20W*2 Speaker driver 100-240V ~50/60Hz Speaker frequency 2402MHz-2480MHz Bluetooth version V4.1 Bluetooth range Up to 6m Included in the packaging Soundbar, Remote control, AC adapter, RCA cable, User manual Dimensions 850*60*60mm Weight 1.75KG FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. - Page 9 Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
