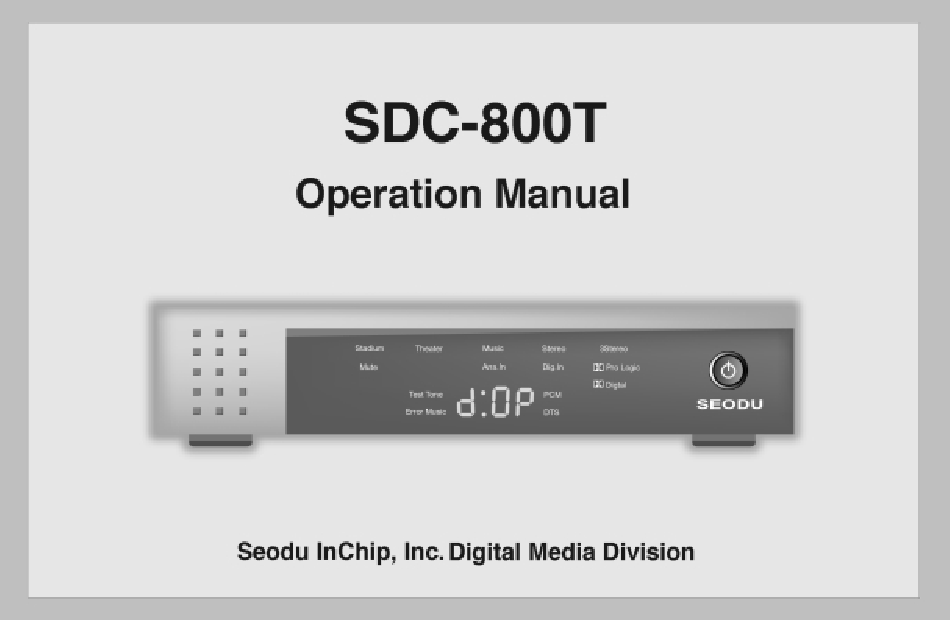

Seodu Inchip, Inc SDC-800T Operation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the SDC-800T and is the answer not in the manual?

Questions and answers

Summary of Contents for Seodu Inchip, Inc SDC-800T

Page 2 Safety & Regulatory Information The following sections contain notices for various countries: Notice for Canada Notice for the USA FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B This apparatus complies with the Class B limits for radio interence as specified in the Canadian digital device, pursuant to Part 15 of the FCC Rules.
Page 3 1. Le matériel ne peut étre source d’interférences et To prevent fire or shock 2. Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un fonctionnement indésirable. hazard, do not expose this appliance to rain or Compliance Manager Seodu Inchip, Inc moisture April 4, 2001...
Page 4 Important Safety Instruments Any mounting of the Decorder Amplifier should follow the manufacturer's instructions, Read Instructions All the safety and operating instructions should be read before the appliance is and should use a mounting accessory recommended by the manufacturer. operated. An Decorder Amplifier and cart combination should be moved with care.
Page 5 Power-Cord Protection Damage Requiring Service Power-supply cords should be routed so that they are not likely to be walked on or pinched Unplug the Decorder Amplifier from the wall outlet and refer service opening to by items placed upon or against them paying particular attention to cords at plugs, qualified service personnel under the following conditions: convenience receptacles, and the point where they exit from the Decorder Amplifier.
Page 6 DVD player and associated audio systems. To play games in 6 channel sound, install the sound card which supports various 3D APIs, like EAX, Direct 3D, Aureal, etc., in your system, connect its digital output to SDC-800T system and speaker kits, and execute the 3D games supported by these 3D APIs. Then you would hear and enjoy the fantastic 3D games in multi-channel sound. Some games are powered by Dolby Pro Logic or Dolby Digital.
Page 7: Table Of Contents
Contents Outside View ........................................8 l l Front Panel & LED Display ..................................8 l l Rear Panel......................................10 l l Remote Control ......................................12 Installation ........................................14 Connection........................................15 l l Input Setting ......................................15 l l Speaker Setting ......................................18 Operation ........................................25 Specification........................................26 Troubleshooting ......................................27 Glossary ........................................30...
Page 8: Outside View
Error Music CHARACTER DISPLAY LED POWER Button Displays useful information on current status, setting and input mode. Standby Power On/Off Switch of SDC-800T Normally it will show current input selection, i.e. d.OP in optical digital input mode l l LED Display d.CO...
Page 9 ¤ When incoming PCM stream is high sampling rate data, then it will display current sampling when performing sub-woofer speaker test rate, like INPUT LEDs F.88 when incoming PCM stream is 88.2 kHz sampled data Dig. In – Ana. In F.96 when incoming PCM stream is 96 kHz sampled data When pressing INPUT button, LED will be turned on, indicating if analog or digital input is selected.
Page 10: L L Rear Panel
Outside View l l Rear Panel Seodu SDC-800T Analog Digital Input Input Line Output DC12 V Speaker Mode Front L/R Rear L/R Center S. Woofer Front Coaxial Optical DC Adapter Input l l Rear L/R Input connector for AC-to-DC 12V adapter power supply.
Page 11 Input Connectors l l Digital Optical "Full-Range" speaker is the speaker capable of producing wide frequency Optical S/PDIF digital input from PC Sound Card or other digital audio signal range of 20 Hz to 20 KHz. equipment like DVD player. "Satellite"...
Page 12: L L Remote Control
Outside View l l Remote Control POWER Button (Power in Front Panel) Standby Power On/Off Switch of SDC-800T INPUT Button With every touching, inputs following will be selected Digital Optical : Select Optical Digital Input in rear panel Digital Coaxial : Select Coaxial Digital Input in rear panel...
Page 13 Note : Dolby Digital and DTS will be detected and decoded automatically Right : Trim Front Right speaker level by +10dB to -10 dB Left : Trim Front Left speaker level by +10dB to -10 dB Note Digital, Pro Logic, 3 Stereo and Stereo modes can be Center : Trim Center speaker level by +10dB to –10 dB...
Page 14: Installation
Connect the stereo line output of PC Sound Card to the Line-In of SDC-800T (2) If your PC Sound Card has S/PDIF Digital output, then connect them to Digital input of SDC-800T depending on the type of connector (Optical or Coaxial-RCA).
Page 15: Connection
Connection l l Input Setting_ with PC Sound Card, H/W MPEG2 Decoder, HDTV Card Seodu SDC-800T Seodu SDC-800T Analog Digital Input Analog Input Line Output DC12 V Digital Input Input Line Output DC12 V Speaker Speaker Mode Mode Front L/R...
Page 16 Input Setting_ with Game Console like Play Station Seodu SDC-800T Digital Input Analog Input Line Output DC12 V Speaker Mode Front L/R Rear L/R Center S. Woofer Front Coaxial Optical Optical Digital Out Audio Left Out Audio Right Out...
Page 17 Input Setting_ with Home Digital Audio Appliances like DVD Player Seodu SDC-800T Digital Input Analog Input Line Output DC12 V Speaker Mode Front L/R Rear L/R Center S. Woofer Coaxial Optical Front DVD Player, Portable CD Player, Boom-Box, etc...
Page 18: L L Speaker Setting
Speaker Setting_ when connecting SDC-800T to 4.1 or 5.1 channel power amplifier with large front L/R speaker. Seodu SDC-800T Seodu SDC-800T Seodu SDC-800T Analog Digital Input Analog Digital Input Digital Input Analog Input Line Output DC12 V Input...
Page 19 Line Output for S.Woofer, then you will get benefit of Bass Output for S.Woofer, then you will get benefit of Bass Management offered by Management offered by SDC-800T without any additional configuration setting. SDC-800T without any additional configuration setting.
Page 20 Line Output for S.Woofer, then you will get benefit of Bass with 2 sets of stereo multimedia speaker (with Woofer) to Front L/R and Rear Management offered by SDC-800T without any additional configuration setting. ¤ L/R. Attention to speaker setting using DIP switch. If you have high quality sub- woofer, simply connect it to Line Output for S.Woofer, then you will get benefit of...
Page 21 Rear L/R Center S. Woofer you will get benefit of Bass Management offered by Front Coaxial Optical SDC-800T without any additional configuration Dip Switch setting. Note Rear Right Rear Left Dedicated Sub-Woofer can be always added to system without any configuration.
Page 22 Front Coaxial Optical simply connect it to Line Output for S.Woofer, then you will get benefit of Bass Management offered by Dip Switch SDC-800T without any additional configuration setting. Note Sub-Woofer Front Left Front Right Dedicated Sub-Woofer can be always added to system without any configuration.
Page 23 Front Coaxial Optical woofer, simply connect it to Line Output for S.Woofer, Dip Switch then you will get benefit of Bass Management offered by SDC-800T without any additional configuration setting. Note Rear Right Rear Left Dedicated Sub-Woofer can be always added to system without any configuration.
Page 24 Line Front Coaxial Optical Output for S.Woofer, then you will get benefit of Bass Dip Switch Management offered by SDC-800T without any additional configuration setting. Note Rear Right Sub-Woofer Rear Left Dedicated Sub-Woofer can be always added to system without any configuration.
Page 25: Operation
Operation Installation and Speaker Setting As explained in previous chapter, complete the installation and speaker setup. Perform speaker test, and verify correct positioning and volume level. Executing PC S/W or Playing Audio Source Attached Execute S/W DVD Player, WinAMP or Media Player if you have connected the system to PC sound card. If you also have attached other audio source like portable CDP, start playing it.
Page 26: Specification
Specification Features Front Panel l l Multi-Channel Digital Audio Support l l Power On/Off Switch - Dolby Digital, DTS and Dolby Pro Logic support - Standby-mode power - Ideal for watching DVD movie and playing 3D games in PC l l Easy-to-Read LED Indicators l l Various Surround Sound Support - Program format display, various settings display - Bypass/...
Page 27: Troubleshooting
My system doesn’t work. l l Check the connected power amplifier and speaker system. Check SDC-800T output, power amplifier or speaker inputs are connected properly. l l First check to make sure that you have proper power supply. Check the connection of power amplifier to power supply, or volume level is If power adapter is connected, red LED signal appears at the front display panel.
Page 28 S/PDIF channel. Some DVDP provides separate Setup Menu option for enabling this feature. l l If the SDC-800T reproduces this Dolby Digital signal, 3.2.L, 2.0 character will appears at the front panel, and you can hear sound from several speakers.
Page 29 Dolby 5.1-channel in digital output, and SDC-800T has a capability of dealing with it properly. l l In case of analog output, SDC-800T analog input is for mini-stereo phone type and it is inconsistent with RCA output mostly applied with regular DVDP or LDP.
Page 30: Glossary
(44.1kHz, 16bit ADC), and with better sound quality. countries, more DVD titles in compliance with DTS and Dolby Digital have SDC-800T automatically detects and supports these high quality PCM streams, been released and will be released, more. boasting support for sampling rate up to 88.2kHz, 96kHz, and ADC What is Dolby Pro Logic? resolution of 24bit.
Page 31 DTS modes, and you can listen to music, play games, or enjoy movie with to avoid the change due to location limits of a speaker . these modes. Setting values in SDC-800T can be changed from 0 ms (default) to 15 ms. What is Down-Mix? What is Center Delay ?
Page 32 M e m o...
Page 36 Seodu, SDC-800T...
