Nokeval Kube-Sky-RHT-P-CO2-PIDVOC Manual

Hide thumbs

Advertisement

Table of Contents

Kube-Sky-RHT -P -CO2 -PIDVOC
Manual
ID9727 V1 19.6.2018
Firmware 1.0-1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kube-Sky-RHT-P-CO2-PIDVOC and is the answer not in the manual?

Questions and answers

Related Manuals for Nokeval Kube-Sky-RHT-P-CO2-PIDVOC

Summary of Contents for Nokeval Kube-Sky-RHT-P-CO2-PIDVOC

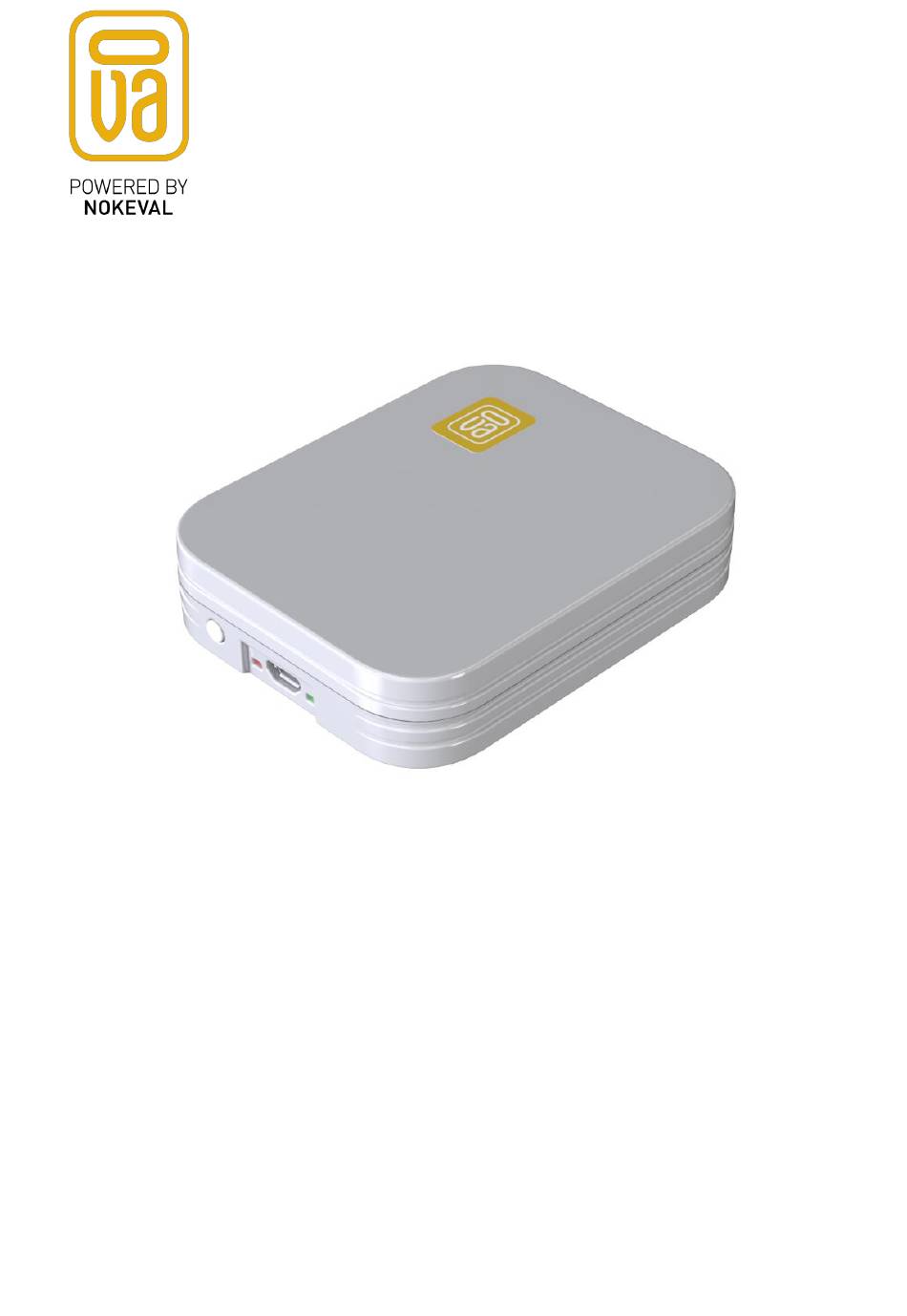

  • Page 1 Kube-Sky-RHT -P -CO2 -PIDVOC Manual ID9727 V1 19.6.2018 Firmware 1.0-1.0...

  • Page 2: Table Of Contents

    One radio transmission can last approx. 2 seconds (compared to 20 ms of the Nokeval MTR series). This means that the number of transmitters within the range must be limited in order to avoid collisions and to allow radio time for each.

  • Page 3: Installation

    Connect a Micro-USB-B cable to the connector, and the other end of the cable to a computer. • If Windows requests for a driver, download it at www.nokeval.com > Support, unzip it to a temporary folder, and show that directory as the location for the driver.
  • Page 4 Menu chart This is the configuration menu of firmware V1.0. The different versions may have slight differences and lacking features. The menu is divided to submenus for each quantity group. In addition to those, it has a submenu for the wireless network settings and another submenu for general settings. Temp+Humi Period[s] Conf...
  • Page 5 Gases-> CO2 -> Manucal This allows manually calibrating the CO2 offset. Enter the real CO2 level and press the Now button. Wait for a moment. Radio settings The Sky menu contains the settings for the wireless network. Network: To prevent mixing the different networks (and users) data, the network address should be set to some value not used nearby.
  • Page 6 • Bidirectional: After transmitting a packet, this device will listen for an acknowledgement from a receiver and retransmit up to two times if not getting acknowledged. If there is no acknowledgement, this device will discard the packet and try only once for the next time. This setting increases the probability of successful delivery significantly but does not guarantee it.
  • Page 7 Channel Physical quantity Unit Temperature °C or °F Relative humidity Absolute air pressure mbar Carbon dioxide concentration Volatile organic compound conc. Differential pressure PM1 particulate matter µg/m PM2.5 particulate matter µg/m PM10 particulate matter µg/m 40µm particulate matter These channel numbers are used when configuring the device for the Ovaport service or any other type of receiving system.

  • Page 8: Maintenance

    Maintenance Not used for a while If the device is not used for months, it is recommended to remove at least one battery. Checking the status Now and then, it is advisable to press the button to light up the indicator located next to the USB connector.

  • Page 9: Specifications

    Specifications Environment Storage temperature -30...+60 °C, non-condensing Operation temperature 0...+60 °C Operation humidity 5...95 %RH, non-condensing Protection class IP20 Enclosure material Plastic (ABS+PC) Measurements Weight RHT: 130 g RHT-P-CO2: 140 g with batteries RHT-PIDVOC: TBD Dimensions Width: 75 mm Height: 95 mm Depth: RHT 28 mm, -CO2 and -VOC 48 mm, including the wall mount Internal batteries Type...

  • Page 10: Warnings

    Warnings The device must not be disposed of in household waste. Observe local regulations concerning the disposal of electrical waste. The device contains a battery. Manufacturer Nokeval Oy Rounionkatu 107 FI-37150 Nokia Finland Phone +358 3 342 4800 (Mon-Fri 8:30-16:00 EET) http://www.nokeval.com/...
