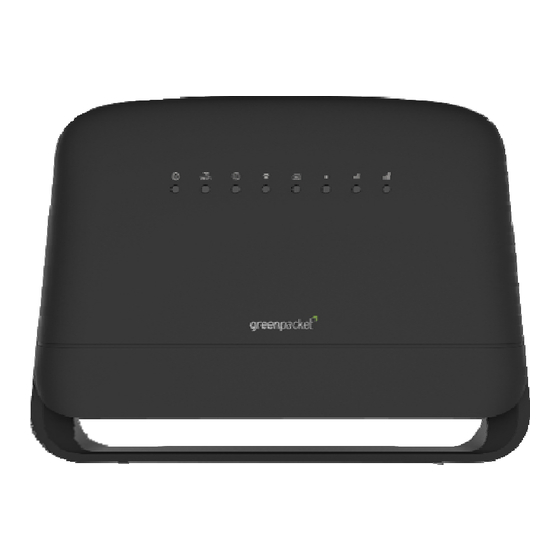

Summary of Contents for Green Packet DH-725

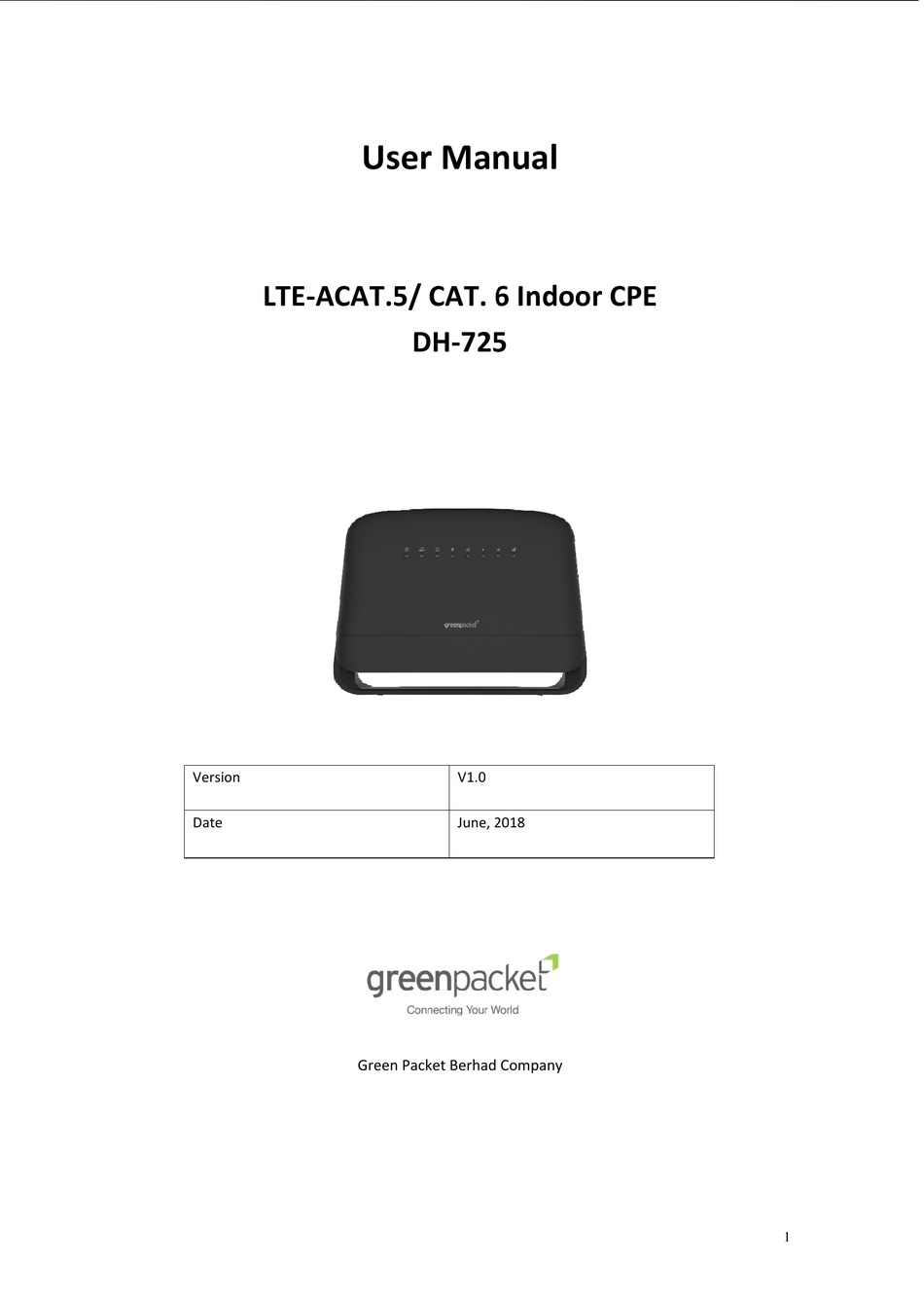

- Page 1 er Man nual LTE‐A ACAT.5/ / CAT. 6 6 Indoo or CPE DH‐725 5 Version V1.0 Date ...
-
Page 2: Hardware Specifications
2.4GHz 802.11 b/g/n Compliant Ethernet LAN port RJ‐45 port*2 10/100/1000 auto‐sensing, auto‐MDIX RJ‐11 POTS port RJ‐11 port*1 Optional feature LED Indicators Power/WiFi/WPS/Internet/SIM/Signal Signal strength 3 bars Strength Console 1.8V LVTTL signal Pin header Reset/Reboot button Tact switch In side box USIM 1.8V/3.0V 2FF USIM LTE Antenna Built‐in 4x4 4x4 support in Cat.5 Power supply Input: Universal range 100~240VAC Output: 12V/1A DC Green Packet Berhad VersionV2.00 Page2o f 9... - Page 3 2.2ID Design 1.1.1 A Appearance In ndex Index scription Dimension 250 (L)x 66 ( (W)x 180 (H) mm Weight 440g Color Black 2.3 Interface e and Button 2.4 LED Indic cators ED Indicators s Colou ur atus Descrip ption Stea ady On Power r On Power Blue e ...
- Page 4 Min Type Max units 1 0 40 C Operating temperature 2 Storage temperature ‐20 60 C 3 Operating humidity 0 95 % 4 Storage humidity 0 95 % Green Packet Berhad VersionV2.00 Page4o f 9...
- Page 5 DHCP Server in LAN Ready For NAT Mode, Supports 253 clients max. NTP Client Ready DNS Relay Ready For NAT Mode DDNS Client Ready For NAT Mode VPN Pass‐through – IPSec/PPTP/L2TP Ready For NAT Mode No configuration on GUI UPNP Ready HTTP(s) Server Ready Dynamic NAT/NAPT Ready For NAT Mode ALG Support (FTP/SIP/etc…) Ready Version V1.0 Page Green Packet Berhad...
- Page 6 WEP 64 – 5 ASCII characters or 10 HEX characters WEP 128 – 13 ASCII characters or 26 HEX Ready characters WPA/WPA2 Personal / PSK (TKIP) – ASCII string, 8 to 63 characters in length WPA/WPA2 Personal / PSK (AES) – ASCII string, 8 to 63 characters in length Bandwidth selection b/g/n (20M, 40M, 20/40MHz) Ready Version V1.0 Page Green Packet Berhad...
- Page 7 Supported with special IPK w/ Diagnostic & Monitoring Ready chipset DM tool 3. Appendix‐Deliverable Article Number Content Remark ‐ 1 x Assembled product Detail deliverables need to be defined DH‐725 ‐ 1x 12V1A Power adaptor by customer agreement ‐ 1x Quick installer guide Installation Quick Guide QIG (Can be customized) Packaging Brown Box, Device Label, Box Label Version V1.0 Green Packet Berhad Page...
-
Page 8: Fcc Regulations
FCC RF Exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for the transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter. Version V1.0 Page Green Packet Berhad... -
Page 9: Trademark Statement
Support Fax： +603 7450 8890 Copyright©Green Packet Berhad2011‐2014. Reserve all rights. Without going through the company's written permission, no organization or individual have the right to extract and duplicate the content of this document, in whole or in part. Any kind of spreading behavior without approval is prohibited. Trademark statement and otherGreenpacket trademarks are owned by Green Packet Berhad . Other trademarks or registered trademarks mentioned in this document are owned by all of their own。 Notes: Because of the product version upgrade or other reasons, the content of the document will not be updated on a regular basis. Unless otherwise agreed, this document is used only as a guide, all statements, information and advice in this document do not constitute any express or implied guarantee. Version V1.0 Page Green Packet Berhad...
