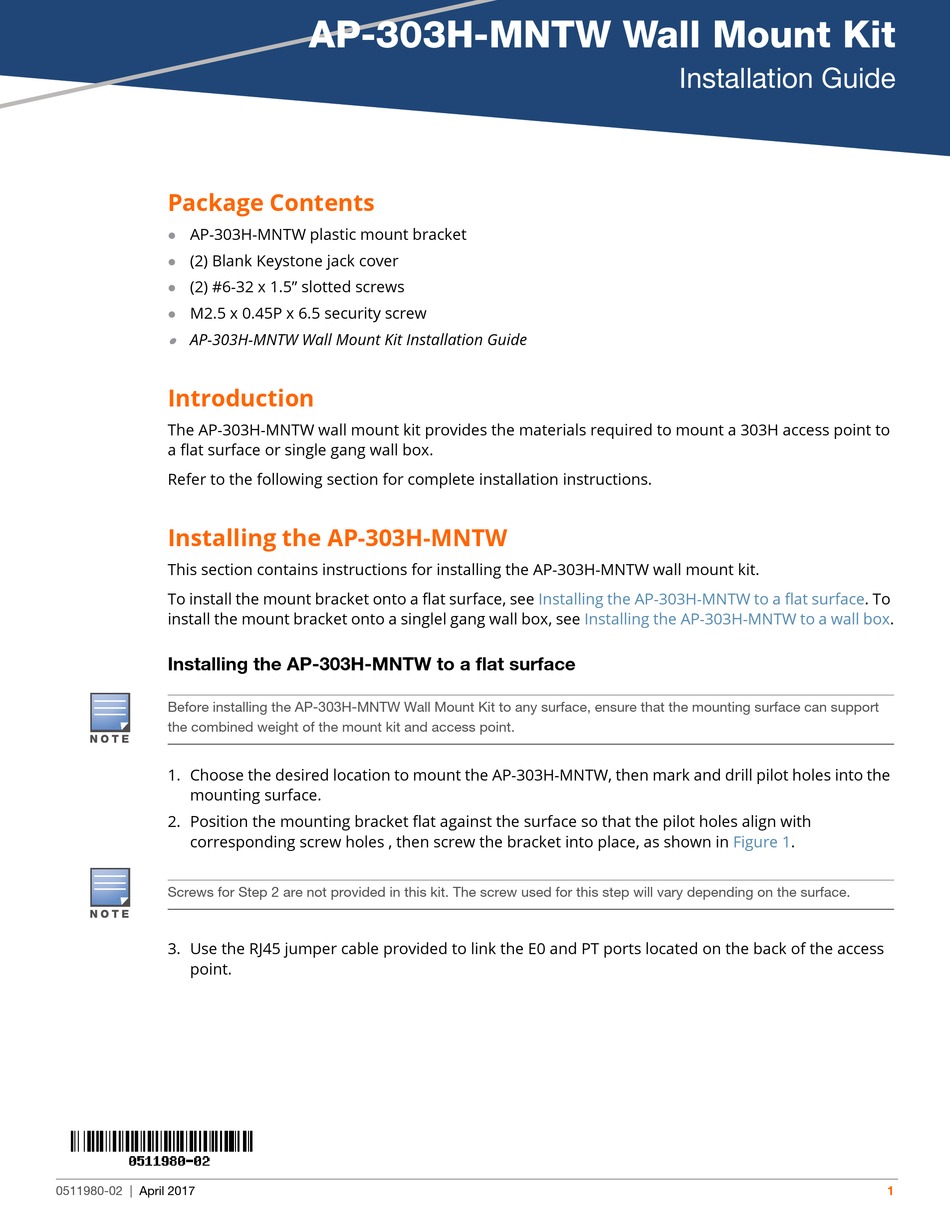

Package Contents
AP-303H-MNTW plastic mount bracket
(2) Blank Keystone jack cover
(2) #6-32 x 1.5" slotted screws
M2.5 x 0.45P x 6.5 security screw
AP-303H-MNTW Wall Mount Kit Installation Guide
Introduction
The AP-303H-MNTW wall mount kit provides the materials required to mount a 303H access point to
a flat surface or single gang wall box.
Refer to the following section for complete installation instructions.
Installing the AP-303H-MNTW
This section contains instructions for installing the AP-303H-MNTW wall mount kit.
To install the mount bracket onto a flat surface, see
install the mount bracket onto a singlel gang wall box, see
Installing the AP-303H-MNTW to a flat surface
Before installing the AP-303H-MNTW Wall Mount Kit to any surface, ensure that the mounting surface can support
the combined weight of the mount kit and access point.
1. Choose the desired location to mount the AP-303H-MNTW, then mark and drill pilot holes into the
mounting surface.
2. Position the mounting bracket flat against the surface so that the pilot holes align with
corresponding screw holes , then screw the bracket into place, as shown in
Screws for Step 2 are not provided in this kit. The screw used for this step will vary depending on the surface.
3. Use the RJ45 jumper cable provided to link the E0 and PT ports located on the back of the access
point.
0511980-02 |
April 2017
AP-303H-MNTW Wall Mount Kit
Installation Guide
Installing the AP-303H-MNTW to a flat
Installing the AP-303H-MNTW to a wall
surface. To
box.
Figure
1.
1
Advertisement
Table of Contents
Related Manuals for Hewlett Packard Enterprise AP-303H-MNTW
Summary of Contents for Hewlett Packard Enterprise AP-303H-MNTW
-
Page 1: Package Contents
Installing the AP-303H-MNTW to a flat surface Before installing the AP-303H-MNTW Wall Mount Kit to any surface, ensure that the mounting surface can support the combined weight of the mount kit and access point. 1. Choose the desired location to mount the AP-303H-MNTW, then mark and drill pilot holes into the mounting surface. - Page 2 Figure 1 Attaching the AP-303H-MNTW to a flat surface Installing the AP-303H-MNTW to a wall box 1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in Figure 2. Detach any RJ45 cables by unclipping the connectors from the wall plate, or cutting/ removing the UTP cable(s).
- Page 3 US: ANSI/NEMA OS 1 and OS 2 Figure 3 Attaching the wall mount to the wall box (worldwide single gang outlet box) Figure 4 Attaching the wall mount to the wall box (US single gang outlet box) AP-303H-MNTW Wall Mount Kit | Installation Guide...
- Page 4 5. (Optional) If there are any additional wires that are left unused for this installation, remove the blank Keystone jack cover(s) from the AP-303H-MNTW by squeezing the tabs on either side to disengage the clips and pull outward to remove the tab(s), as shown in...
- Page 5 7. Once the access point is attached to the wall mount, insert the security screw into the hole located on the right side of the mount and tighten. 8. Connect Ethernet cable(s) to the bottom of the access point as needed. © Copyright 2017 Hewlett Packard Enterprise Development LP AP-303H-MNTW Wall Mount Kit | Installation Guide...
