Summary of Contents for Sigma BATRIBIKE

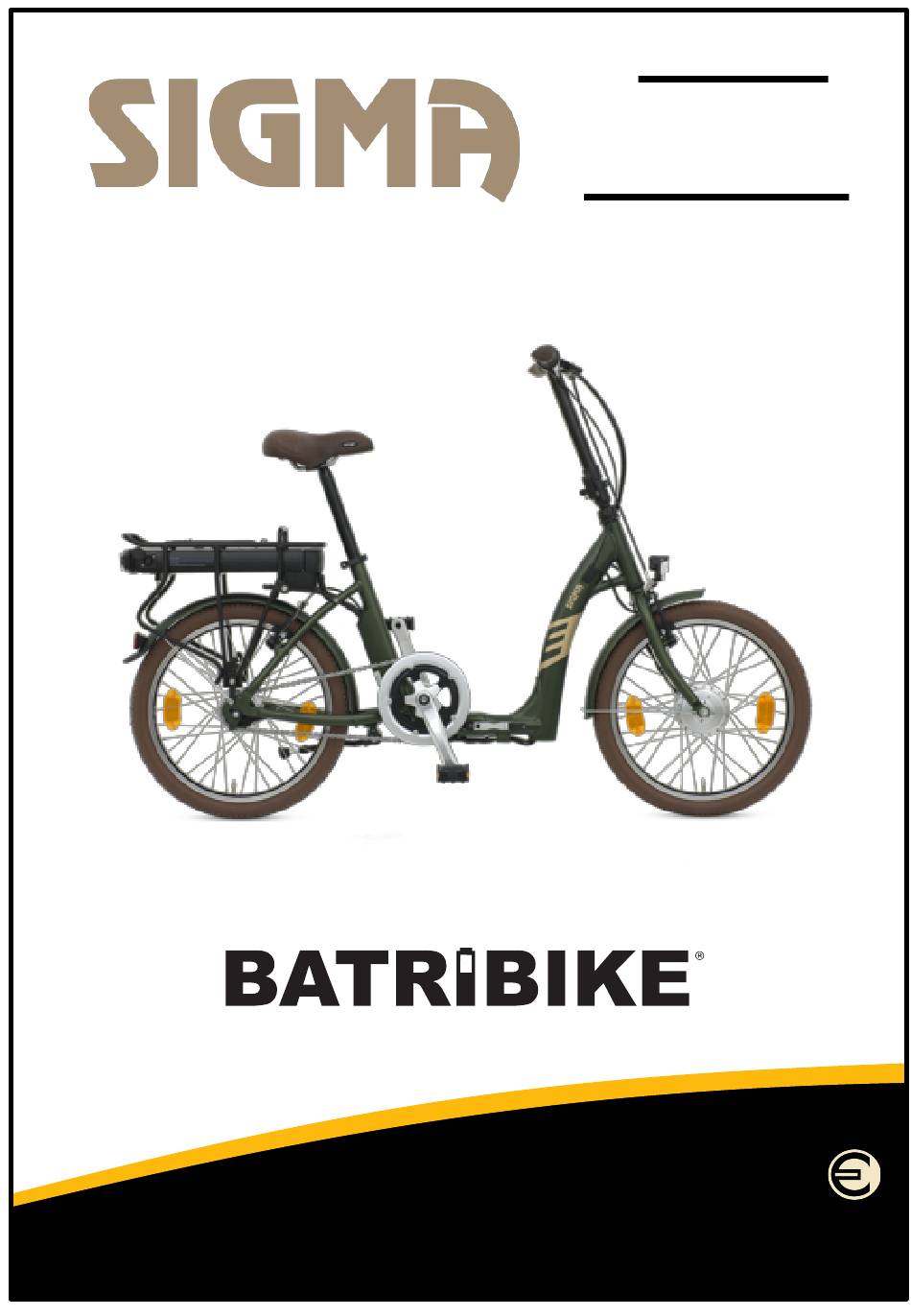

Page 1 Owner Manual ELECTRIC BICYCLES Hand Built in Europe batribike.com...
Page 2 YEAR IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.
Page 3: Table Of Contents
Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator may show charge this cannot be relied upon until the battery has had the initial full charge.
Page 4: Parts Identification
PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Front Hub Motor Bell Motor Connector (On Left Fork) Front Brake Lever Frame Folding Mechanism Display (LED shown) Folding Pedals Gear Indicator...
Page 5 OTHER ON INSIDE OF OTHER SIDE FRAME (Chainstay) SIDE HANDLEBAR DISPLAY OPTIONS STANDARD FITMENT (LED) SHOWN LEFT Mini LCD and CENTRE LCD (NOT SHOWN) ALSO AVAILABLE AS UPGRADES...
Page 6: Battery Care & Charging
BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. First time use Your battery will be supplied in a state of sleep from the factory. The first time you use the battery it requires activation by being fully charged.
Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.
Page 8: Using The Power Assistance
Usage Your BATRIBIKE electric bicycle has a choice of display options available. For the SIGMA the LED type is fitted as standard to the bike. LED Display See page 10 for operation The operation of the LED system provides adjustable SPEED in five selectable steps.
Page 9 Display Upgrades Mini LCD See separate manual for this upgrade. The operation of the Mini LCD system has four selectable POWER levels. Level 1 gives 25% of the power, level 2 - 50% up to level 4, 100% power. Speed range is from 0 to 15 mph in all levels. This is available as an easy to fit upgrade.
Page 10 LED Operation Switching On To use under electric power, switch on at the key switch on the side of the battery, then press and hold the DOWN button on the handlebar LED display until the blue lights are seen. Control Buttons By means of the three buttons, UP, DOWN and 6 Km/h, on the handlebar mounted display unit, the various functions of the power controller can...
Page 11 SOON AS POSSIBLE Bicycle Lights Your BATRIBIKE Electric Bicycle is supplied with powerful LED lights on the front and rear. The rear light is switched on whenever the battery is turned on via the key switch. The front light is activated by pressing the LIGHT button on the handlebar display.
Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 5 (Highest). The motor will then be activated upon pedalling. RANGE SHOWN WITH PEDAL ASSISTANCE FROM THE MOTOR STANDARD BATTERY LEVEL...
Page 13 If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
Page 14: Troubleshooting
TROUBLESHOOTING Diagnostic Error Messages If an error occurs the LED display will show a code by flashing the first battery light. Make a note of the number of flashes and turn off the bicycle power at both the LCD and the battery switch. After 2 minutes turn on the power again.
Page 15: Standard Bicycle Functions
STANDARD BICYCLE FUNCTIONS Gears Your BATRIBIKE is provided with 7 speed Shimano Nexus hub gears with RevoShift gear change. To change gear you use the right handlebar twist selector. Gear number 1 is low for hills and rough terrain and gear 7 is high for normal road use.
Page 16 The luggage rack provided is designed to carry a maximum load of 25kg. Make sure that any items carried are securely strapped and nothing is able to get caught in the rear wheel. All other operations of your BATRIBIKE Electric Bicycle are as per a normal pedal cycle.
Page 17: Adjusting To Suit The Rider
The height of the saddle can be adjusted to suit the rider. If you do not feel confident with making these adjustments then your BATRIBIKE Dealer will be able to set up the bike initially. The saddle height is adjusted...
Page 18: Folding The Bicycle
Folding the Bicycle Folding the Handlebars The SIGMA has a folding HANDLEBAR STEM CLAMP SAFETY LOCK frame. Follow the diagrams below for the procedure to use. PUSH & To unfold the bike, simply HOLD reverse the above OPEN procedure. CLAMP...
Page 19 Folding the Pedals The pedals can be folded by squeezing in as per the photo, and turning through 90 degrees. SQUEEZE TOGETHER TO RELEASE FOLD DOWN THROUGH 90º Turn the pedals to a suitable position so that they are not trapped when folding the frame.
Page 20: Maintenance Schedule
Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.
Page 21 After 3,000 miles (5,000 km) (or YEARLY if sooner) ● General inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. Tyre Pressures Recommended Tightening Torques Item Torque Item Torque The tyres should be...
Page 22: Warranty
Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●...
Page 23 5. In the unlikely event of a battery failure, the battery must be returned to Batribike, via your Batribike dealer for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer.
Page 24: Specifications
SIGMA - Specifications (SUBJECT TO CHANGE WITHOUT NOTICE) MOTOR GEARS 250W Front Hub mounted 7 Speed Shimano Nexus Hub Gears Promovec Motor with 3 year Warranty with Twist Type Gear Selector BRAKES WEIGHT of BIKE Tektro Vee brakes front and rear 17.9 kg (39.5 lbs) without battery...
Page 27 Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.
Page 28 Batribike Limited Unit 4, Ingleby Grange Ingleby Lincoln BATRIBIKE are LN1 2PQ Members of the Phone: 01427 787774 Bicycle Association of Great Britain E-mail: support@batribike.com ----- USER MANUAL SIGMA - ISSUE 3 - ©2019 Batribike Limited -----...
