Aqua Quip InstaTouch User Manual

SMART LIGHTING CONTROLLER
QUICK START GUIDE
Aqua-Quip's InstaTouch
InstaTouch-enabled underwater lights (models:
the lights being installed are InstaTouch-enabled by checking for the InstaTouch label on the rear
of the light, or by checking the instructions that came with the lights.

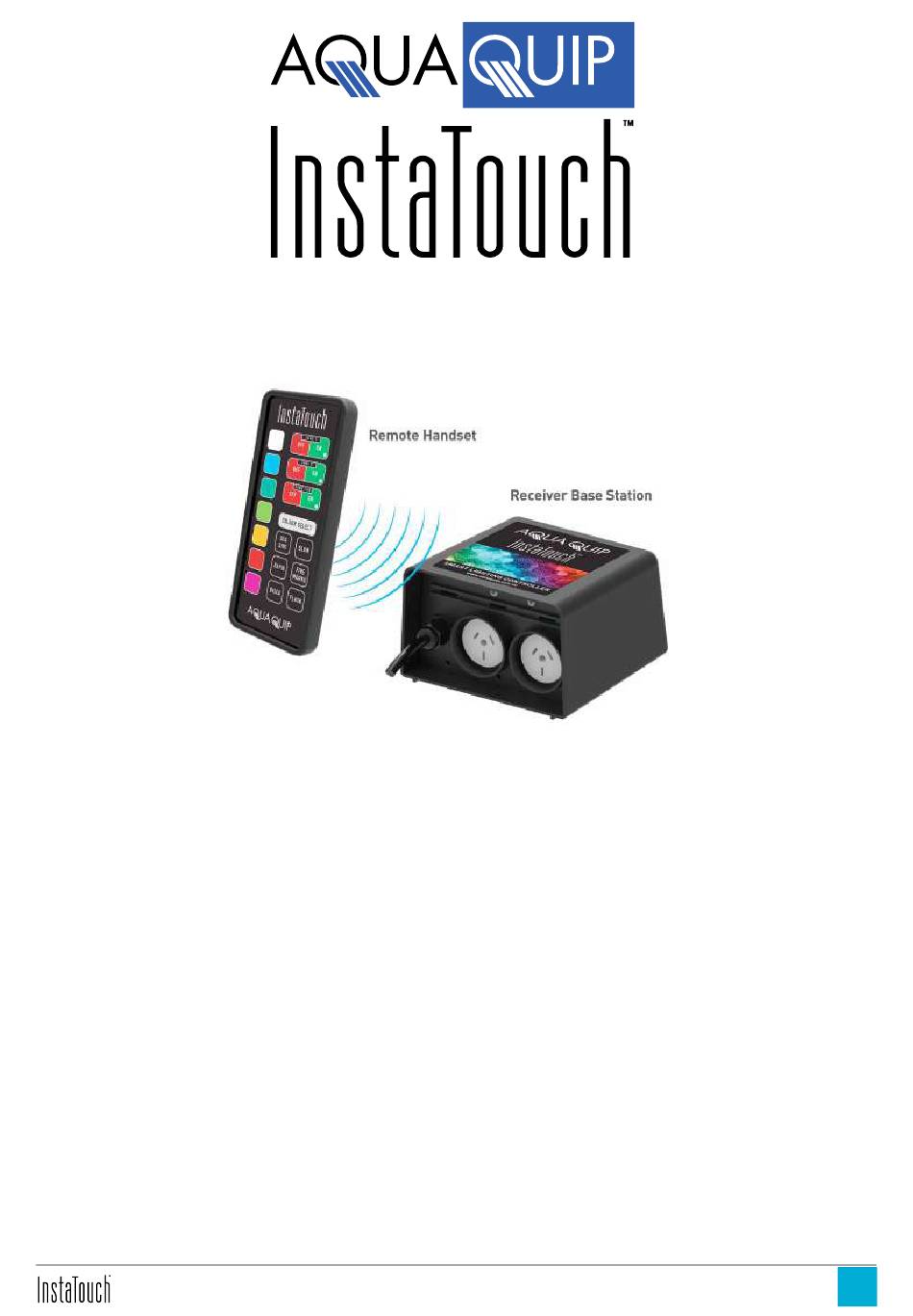

The InstaTouch remote-control consists of the Receiver (P/N: INS101) and the Handset (P/N:
INS102). The handset allows you to select six animated lighting shows, seven fixed colours
or your own colour selected from a scrolling palette, at four different brightness settings. The
colours, shows and brightness can be controlled to two zones (typically your Pool and Spa)
together or independently.

Quick Installation:

For
Note: plug & play
1. Unpack the InstaTouch receiver, handset, batteries and mounting screws.
2. Keep this User Guide for future reference.
3. Insert the batteries into the remote handset, see Diagram B, Page 2.
4. Plug your lighting transformers into the receiver.
5. Plug the receiver into the wall outlet (GPO) and turn it on. Your pool lights will turn on.
6. Wake up the handset by shaking or tapping it (indicator LEDs on the handset will temporarily
illuminate)
7. Start using your new lighting system!
To get the best from your InstaTouch Smart Lighting Controller, please read the rest of this User Guide.
S M A R T L I G H T I N G C O N T R O L L E R U S E R G U I D E
User Guide
remote-control system is designed to be used with Aqua-Quip's
convenience, your handset and receiver have already been "paired".
Evo2, EvoMAX, EvoFG and QC Series ). Ensure that
1
