Blue Ribbon BD300 Instruction Manual

Analog input process meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

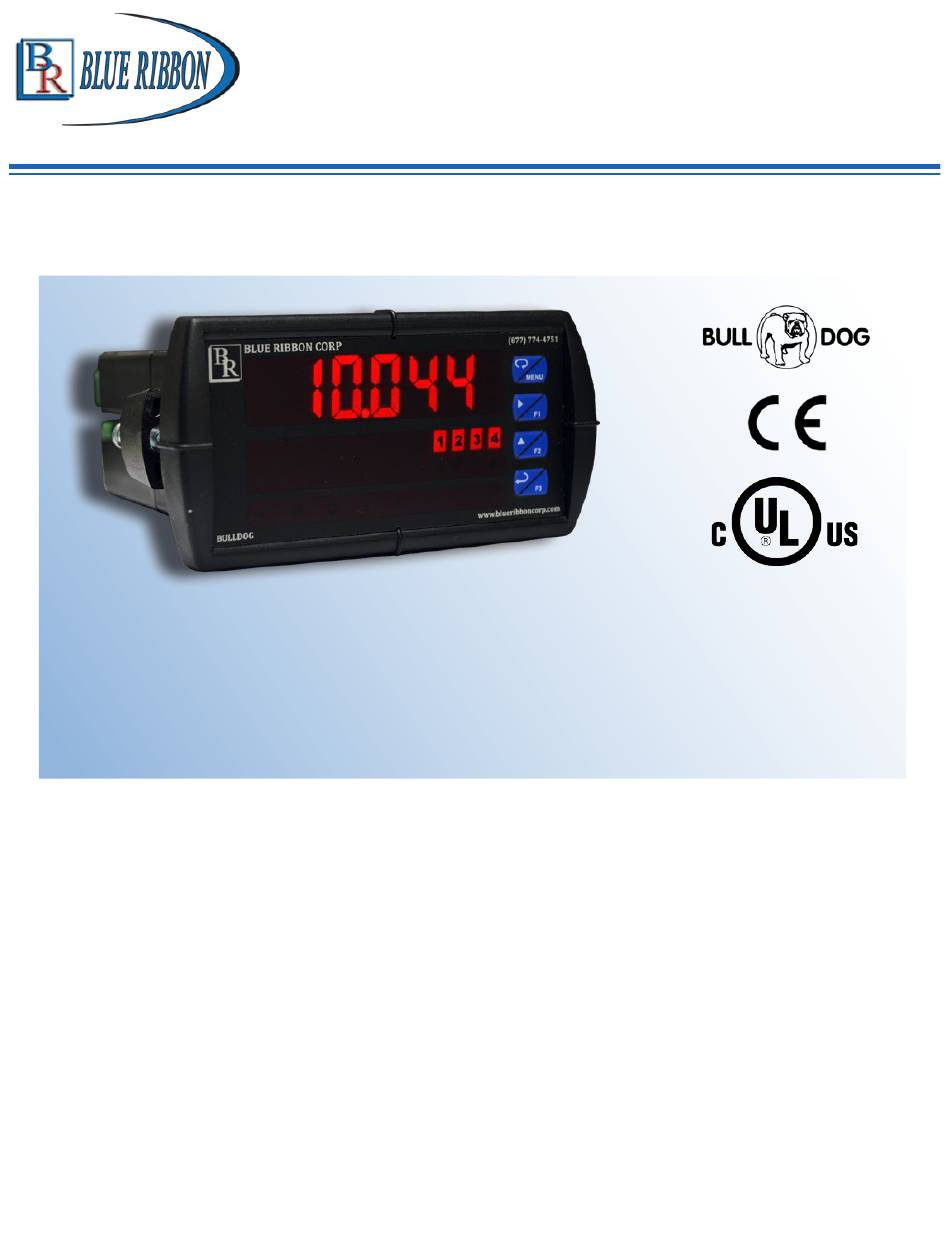

Blue Ribbon Corporation
Instruction Manual
Model BD300
•
0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
•
NEMA 4X, IP65 Front
•
Universal 85-265 VAC,or 12/24 VDC Input Power Models
•
Large Dual-Line 6-Digit Display, 0.60" & 0.46"
•
Dual-Scale for some Level Applications - Single Input
•
Sunlight Readable Display Models
•
Isolated 24 VDC Transmitter Power Supply
•
Signal Input Conditioning for Flow & Round Horizontal Tanks
•
Programmable Display & Function Keys
•
32-Point, Square Root, or Exponential Linearization
•
Multi-Pump Alternation Control
•
2 or 4 Relays + Isolated 4-20 mA Output Options
•
External 4-Relay & Digital I/O Expansion Modules
•
USB, RS-232, RS-485 Serial Communication Options
•
Tare Function
•
Modbus® RTU Communication Protocol Standard
•
Configure, Monitor, and Datalog from a PC with
Free BULLDOG Pro Software
Analog Input
Process Meter
