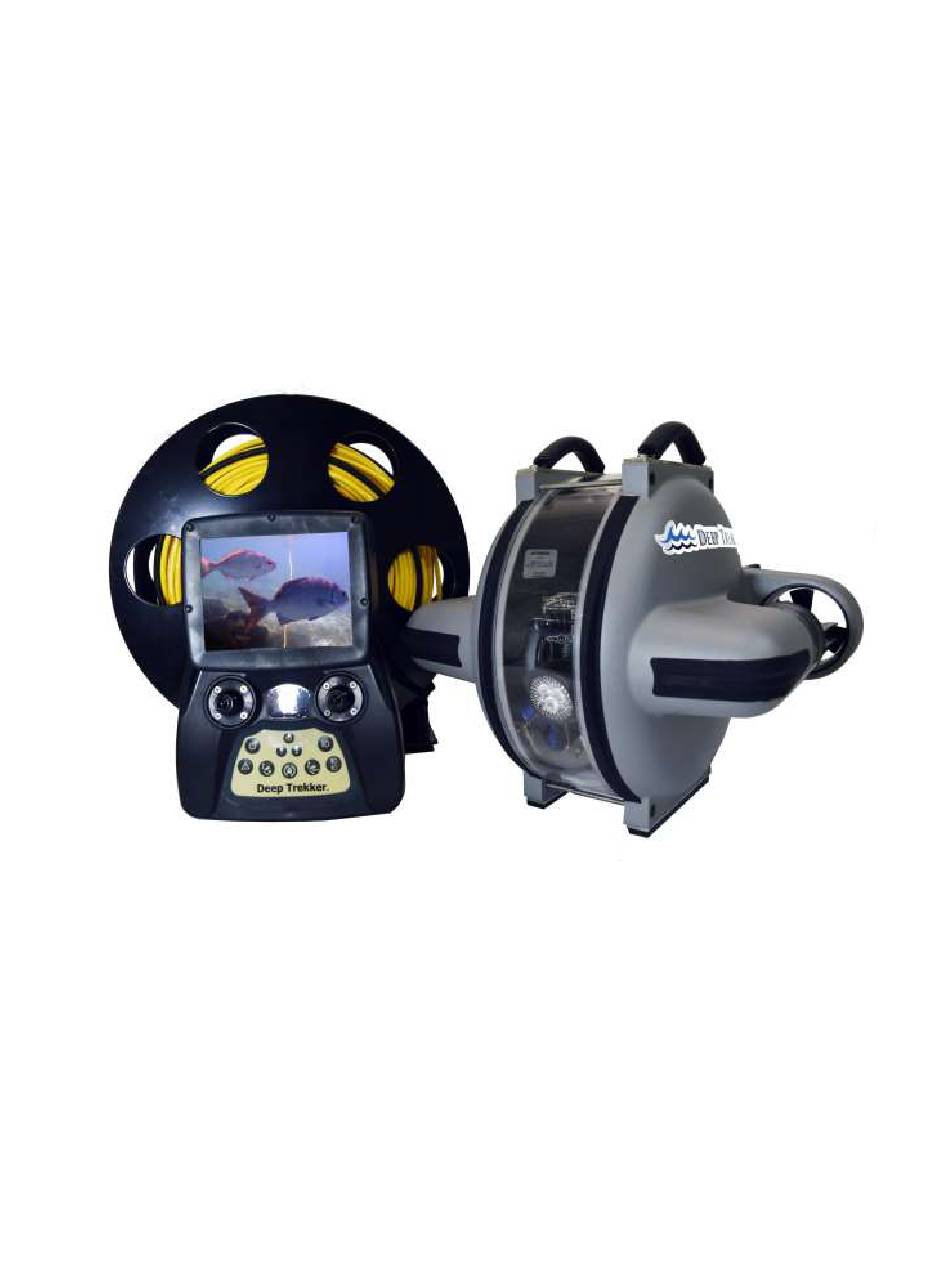

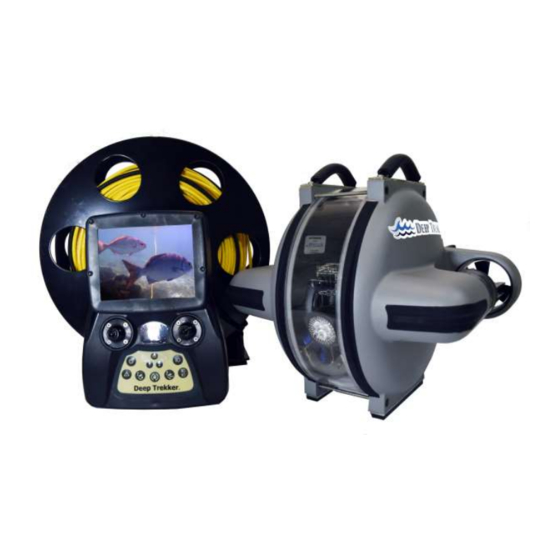

Deep Trekker DTG2 User Manual
Version 2.0 2016
06-9915-01-01 to 06-9915-01-100
06-9916-01-01 to 06-9915-01-200

Advertisement

Table of Contents
loading

Related Manuals for Deep Trekker DTG2

Summary of Contents for Deep Trekker DTG2

  • Page 1 Deep Trekker DTG2 User Manual Version 2.0 2016 06-9915-01-01 to 06-9915-01-100 06-9916-01-01 to 06-9915-01-200...

  • Page 2: Warning

    The density of each body of water is different, before operation in a new body of water, adjusting the weight of the ROV is necessary to avoid damage to the ROV or property around it. Each DTG2 ROV is equipped with ballast weights to place under the handles or on the bottom of the ROV.

  • Page 3: Table Of Contents

    DEEP TREKKER DTG2 USER MANUAL Contents Warning........................................2 Safety Precautions ....................................... 4 Manual Specification and Description Changes ............................5 Delivery and Inspection ....................................6 System Overview ......................................7 Calibrating the Buoyancy ................................... 11 Launching your First Dive ................................... 12 Operation ........................................13 On / Off ......................................

  • Page 4: Safety Precautions

    Safety Precautions Never attempt to swim after a stalled DTG2. Do not get in the water for any reason to retrieve your DTG2. Return the DTG2 by gently pulling it back to the boat by the tether. In cases where the tether is snagged or severed, contact a certified diver to perform the retrieval for you.

  • Page 5: Manual Specification And Description Changes

    DEEP TREKKER DTG2 USER MANUAL Manual Specification and Description Changes All pictures, descriptions, and specifications found in this instruction manual are subject to change without notice. Deep Trekker Inc. maintains no responsibility for inadvertent errors in this manual. DEEP TREKKER INC.

  • Page 6: Delivery And Inspection

    Deep Trekker support or your authorized Deep Trekker Dealer for assistance. The DTG2 is shipped to you with the two shipping set screws in the locked position, the DTG2 will not operate with these screws locked. This ensures that the rough motions associated with the delivery service do not damage the internal frame and the servo motor that turns it.

  • Page 7: System Overview

    DEEP TREKKER DTG2 USER MANUAL System Overview The DTG2 ROV is designed to operate in fresh or salt water between the temperatures of -5C [23F] to 45C [113F]. This unique ROV incorporates internal/onboard batteries, so the system is completely portable with no top side generator or box required. The tether is also much smaller and lighter than a tether designed to carry power.
  • Page 8 DEEP TREKKER DTG2 USER MANUAL Fig. 2B DEEP TREKKER INC.
  • Page 9 DEEP TREKKER DTG2 USER MANUAL Fig. 3A DEEP TREKKER INC.
  • Page 10 DEEP TREKKER DTG2 USER MANUAL Fig. 3B DEEP TREKKER INC.

  • Page 11: Calibrating The Buoyancy

    Calibrating the Buoyancy The DTG2 ROV is shipped from the factory calibrated for fresh water use. To adapt for salt water, simply add the provided ballast plates, as shown in Fig. 4, evenly to the top mounting points or bottom mounting points.

  • Page 12: Launching Your First Dive

    There should be no wind or current present. Lower the DTG2 into the water by the handles, or gently lower it in by the tether. Do not throw the DTG2 into the water for risk of striking an object.

  • Page 13: Operation

    – these will not shut down automatically. Driving Controls As shown in Fig. 5, the motion of the DTG2 is accomplished with only 2 joysticks. The left joystick completely controls the thruster in an intuitive manner. Driving the DTG2 on a lateral plane.

  • Page 14: Thruster Trim

    DEEP TREKKER DTG2 USER MANUAL Thruster Trim The right and left thrusters can be trimmed to ensure the ROV drives straight when the joystick is full forward. Small variances in the ROV can pull it slowly to one side. To adjust the thruster trim, place the ROV in an open body of water with no wave action or current.

  • Page 15: Primary Flood Lights

    DEEP TREKKER DTG2 USER MANUAL Primary Flood Lights The primary flood light button, shown in Fig. 3A, turns the primary flood lights on and off. The primary floodlights are located inside the ROV mounted below the camera. Auxiliary Flood Lights (Optional Equipment) The auxiliary flood light button shown in Fig.

  • Page 16: Pitch Lock

    DEEP TREKKER DTG2 USER MANUAL Pitch Lock By default, when the unit is turned on, the pitch angle of the ROV follows the present position of the pitch joystick (the right joystick). Since the joystick is “spring return to center”, the body will also return to a 0 degree (horizontal) pitch when the operator’s thumb is off the joystick.

  • Page 17: Led Indicators

    Once the debris is removed, turn on the system again and test the thrusters in and out of the water. If the thruster error LED turns on again, contact Deep Trekker support or your authorized Deep Trekker Dealer for assistance.

  • Page 18: Tether

    It is advised to have an assistant managing the tether as the ROV demands more let into the water, or pulled back out of the water. Leaving too much tether in the water will cause excess drag on the DTG2, and not having enough will restrict the ROV manoeuvrability.

  • Page 19: Shutdown

    Trekker Dealer for assistance. Wipe down the ROV with a towel or rag. If the DTG2 has been used in salt water it is advised to rinse it with fresh water to ensure it does not corrode. After the fresh water rinsing, wipe the ROV dry. If the optional carry case is used, do not close the lid after use.
  • Page 20 Note both the ROV and Controller chargers are ‘smart’, meaning there will be no harm in leaving the chargers plugged in overnight, or giving your DTG2 a quick charge for some extra life on your next dive. Leaving the batteries fully drained for long periods of time will cause permanent damage. We recommend fully charging them every 6 months to ensure they do not fully self-discharge over time.

  • Page 21: Storage

    It is recommended to charge the battery at least once every 6 months if the unit is not being used. If the ROV is stored in a sealed compartment such as the optional carry case offered by Deep Trekker Inc., the ROV and tether must be left to dry off 100% prior to sealing the case shut.

  • Page 22: Transporting

    DEEP TREKKER DTG2 USER MANUAL Transporting *It is important to store and transport your DTG2 in a fashion that does not rock the pitch system back and forth. This will cause premature failure because it is working the gear motor and gear train. This sort of failure is 100% unwarrantable.

  • Page 23: Optional Equipment - Sensor System

    DEEP TREKKER DTG2 USER MANUAL Optional Equipment - Sensor System The Deep Trekker sensor system adds significant intelligence to the DTG2 ROV. Included in this system are the following sensors: Depth sensor 0 to 152 m [0 to 500 ft]...

  • Page 24: Auto-Depth

    DEEP TREKKER DTG2 USER MANUAL Auto-Depth The auto-depth is activated by pressing #2 on the controller. It is also possible to change the target depth by scrolling up or down the gain arrows immediately after the auto-depth is activated. After 5 seconds without adjusting the target depth using these arrows, they will return to their normal gain adjust function.

  • Page 25: Turns Counter

    MENU button, select SETUP and then OSD. Here you can toggle it on or off. Date and time readings are not included in the Deep Trekker sensor system. This must be added using the recording device.

  • Page 26: Optional Equipment - Two Function Grabber

    DEEP TREKKER DTG2 USER MANUAL Optional Equipment – Two Function Grabber The Deep Trekker two function grabber upgrades the DTG2 from an observation-class micro ROV into a working-class micro ROV. The grabber is equipped with an open/close motion and a continuous bi-directional rotate motion.
  • Page 27 5) Plug in the grabber electrical connector and tighten by hand (not a wrench). Do not allow the plastic bulkhead mounted to the rear of the ROV to turn. If the plastic bulkhead appears loose, contact your authorized Deep Trekker Service center. 6) Install the dive plane.

  • Page 28: Optional Equipment - Auxiliary Lighting

    The lasers are mounted to the camera within the DTG2 and the dots are centred on the screen. This unique setup allows the laser to scale objects in the full field of view of the camera which is mounted on a 270 degree tilting arm.

  • Page 29: Optional Equipment - Auxiliary Camera(S)

    DEEP TREKKER DTG2 USER MANUAL Optional Equipment – Auxiliary Camera(s) Up to two additional cameras can be added to the DTG2 ROV system. The auxiliary cameras can be positioned to look to either side of the ROV, or added above it to look down at additional equipment, such as the grabber arm or mort retrieval system.

  • Page 30: Optional Equipment - Digital Video Recorder (Dvr)

    DEEP TREKKER DTG2 USER MANUAL Optional Equipment – Digital Video Recorder (DVR) The DVR is an essential tool for any ROV pilot, to record your investigations. Easily record your video to an SD card (provided) and/or record voice-over comments to inspections (optional).
  • Page 31 DEEP TREKKER DTG2 USER MANUAL Recording from the Deep Trekker Controller to the DVR 1. Connect the RCA cable to the Video Out Port on the back of the Deep Trekker controller to ‘CAM IN’ 2. Press POWER button for 3 seconds to turn on DVR.
  • Page 32 DEEP TREKKER DTG2 USER MANUAL Charging the Battery 1. Connect the charger plug to the DC In Jack (9). 2. Plug the power cord of the charger to an AC wall outlet. The charging starts automatically. 3. The LED Bar (2) will illuminate red to show the device is in charging mode. Charging time requires about 3 to 4 hours.
  • Page 33 Connecting to Computer and Monitor The live feed from the Deep Trekker Controller can be plugged into a larger monitor through the RCA Port. These steps explain how to connect the DVR to a computer or monitor only.
  • Page 34 Using the Infrared Remote Controller and Editing Settings 1. Connect your Deep Trekker controller to the DVR & insert the memory card. 2. Turn on the DVR before using the IR remote controller. 3. Aim the IR Remote Controller at the sensor to control the device.

  • Page 35: Optional Equipment - Video Glasses

    DTG2 sees directly in front of your eyes like a TV screen. The video glasses are plugged in from the AV in/out port on the video glasses into the front of the controller to the RCA Video out port.

  • Page 36: Mounting Provisions For Auxiliary Equipment

    DEEP TREKKER DTG2 USER MANUAL Mounting Provisions for Auxiliary Equipment There are 4 threaded holes found in the top and bottom feet that can be used for mounting auxiliary equipment. It is important that the underwater weight of any added equipment should not exceed 40 grams otherwise the fixed volume of the ROV will not be able to maintain neutral buoyancy.

  • Page 37: Maintenance

    ROV. Warranty is void if these seals are breached. This level of service must be left to an authorized Deep Trekker Service Center. The owner should not unplug the tether from the ROV unless absolutely necessary.

  • Page 38: Window Repair

    DEEP TREKKER DTG2 USER MANUAL Window Repair Lightly scratched windows can be polished back to a state of optical clarity. If scratches or dents are greater than 0.5mm deep, the window must be replaced due to the loss of structural integrity. For scratches and dents 0.5mm or less you can repair the window while it is installed on the ROV using the...

  • Page 39: Removing The Tether

    Removing the Tether In general, the tether should not be removed from the DTG2 ROV. The carrying case is designed to hold the DTG2, tether, and controller entirely in the one case. In the unlikely event that you do need to...

  • Page 40: Re-Installing The Tether

    DEEP TREKKER DTG2 USER MANUAL Re-Installing the Tether Take extreme caution when removing and attaching the tether. If not done properly severe damage can occur to the electrical pins. 1. Ensure the o-ring is defect free on the tether that is about to be installed. Add a...
  • Page 41 DEEP TREKKER DTG2 USER MANUAL 4. Insert the tether and by hand, turn the stainless steel nut 5 complete turns while holding the connector body directly behind it, fixed from rotation. If the tether is allowed to rotate while it is threading in, damage can occur to the pins.
  • Page 42 DEEP TREKKER DTG2 USER MANUAL 6. Fit the black bracket back onto the rear of the ROV allowing the tether to route as shown. 7. Fasten the black bracket onto the rear of the ROV using the 4 screws and Philips screw driver.

  • Page 43: Trouble Shooting

    DEEP TREKKER DTG2 USER MANUAL Trouble Shooting Below is a trouble shooting guide. If none of the possible solutions work, please contact Deep Trekker support or your authorized Deep Trekker Dealer for assistance. Problem Possible Solutions Pitch Joystick not working and ROV Ensure the 2 shipping screws are not engaged.
  • Page 44 4) Remove tether and try diagnostic cable. See section Diagnostics Cable. LED - no communication 1) Possible breach in hull - contact Deep Trekker (quickly flashing) support or your authorized Deep Trekker Dealer for assistance. Thrusters weak 1) Inspect propellers and guarding for debris causing blockage of water flow.

  • Page 45: Using The Diagnostics Cable

    If the LED no communication light is illuminated, using the diagnostics cable is the best way to understand where the issue may be. In the top of the Deep Trekker carrying case is a secured diagnostics cable. This cable is used to determine if a fault is caused from within the ROV itself or by a problem in the tether.

  • Page 46: Diagnostics Screens

    To access the Diagnostics Screens, Press the MENU button and then Select Diagnostics The DTG2 uses separate battery and electrical systems the ROV itself and within the controller. The systems communicate with each other via RS485 in operation. Since the sensors are not on a system that has motors or any “noisy”...
  • Page 47 DEEP TREKKER DTG2 USER MANUAL GAIN gain level set by controller (4-10) M LIGHT primary flood light intensity set by controller (fixed 100%) A LIGHT auxiliary flood light intensity set by controller (0% to +100%) TH-JS-X right hand joystick x raw voltage 8 bit Analog to Digital Conversion (ADC) value (0-1023)

  • Page 48: Parts And Service

    Replacement parts for the system that are only repairable by an authorized Deep Trekker repair center are not listed in this user manual. If the DTG2 is in need of one of these parts, please contact Deep Trekker support or your authorized Deep Trekker dealer for assistance.
  • Page 49 DEEP TREKKER DTG2 USER MANUAL 5005 CHARGER, (12.6V) CONTROLLER 0036 WEIGHT, BUOYANCY ADJUSTMEN 0278 PLUG, PORT W/O-RING 6120 PORT PLUG CHARGE 0456 PROPELLER DEEP TREKKER INC.

  • Page 50: Warranty

    This limited warranty is the sole and exclusive express warranty from Deep Trekker. Under the laws of certain states or provinces, there may be no implied warranties from Deep Trekker covering your Deep...
  • Page 51 Repairs will only be authorized after Deep Trekker is satisfied that there is a defect in material or workmanship. Your sole and exclusive remedy under this express warranty or any applicable implied warranty is the...
  • Page 52 This document contains the entire warranty given by Deep Trekker. Deep Trekker does not authorize any person or persons, including Deep Trekker dealers, to change the terms of this express limited warranty, which is Deep Trekker's only warranty. Deep Trekker reserves the right to change or improve the design or manufacture of Deep Trekker products without obligation to modify any products previously manufactured.
