Hitachi UB 18DSL Instruction Manual

1
4
Refl ector
326-194
Handle
Battery
Latch
English

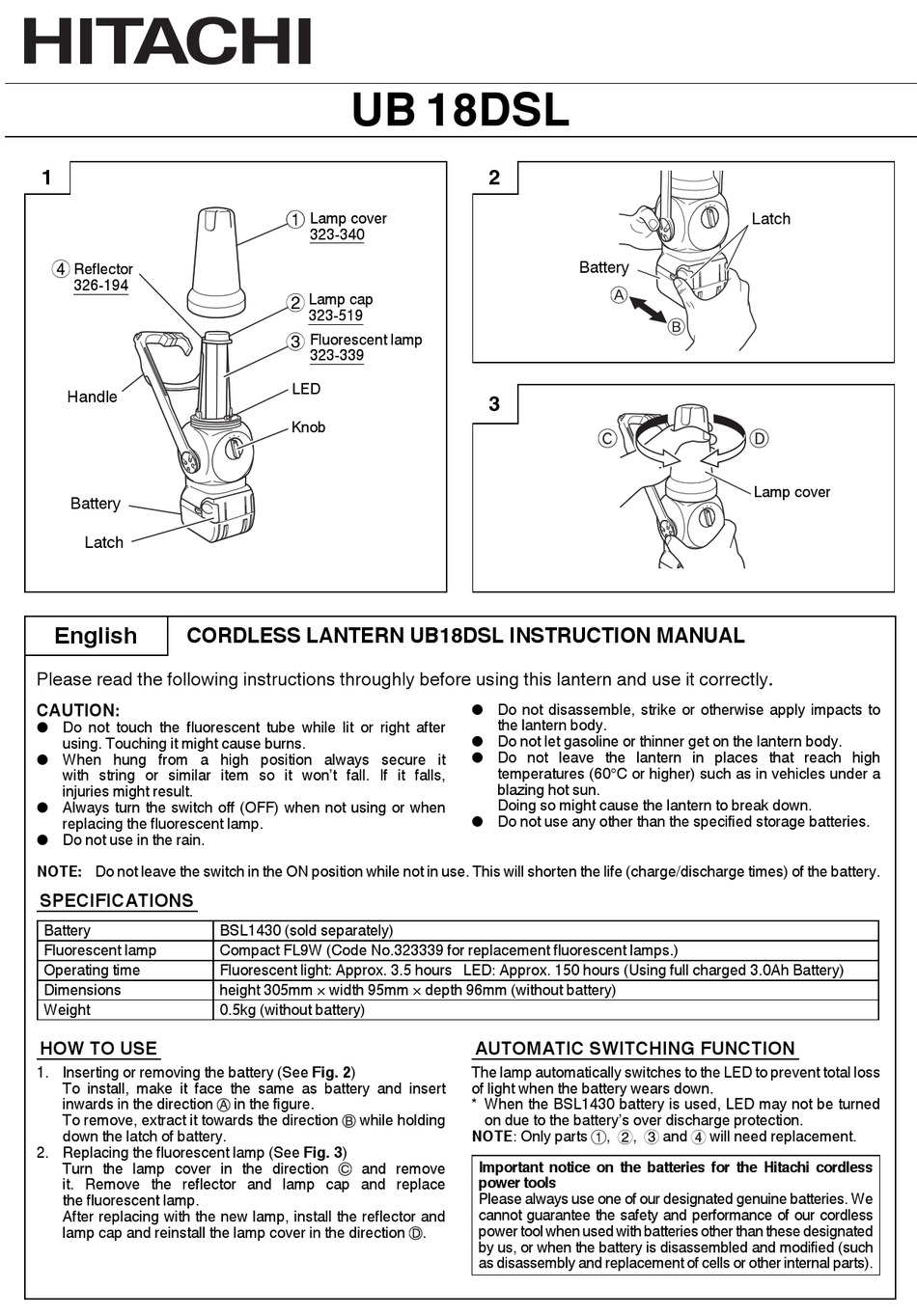

CORDLESS LANTERN UB18DSL INSTRUCTION MANUAL
Please read the following instructions throughly before using this lantern and use it correctly.
CAUTION:
● Do not touch the fl uorescent tube while lit or right after
using. Touching it might cause burns.
● When hung from a high position always secure it
with string or similar item so it won't fall. If it falls,
injuries might result.
● Always turn the switch off (OFF) when not using or when
replacing the fl uorescent lamp.
● Do not use in the rain.
NOTE: Do not leave the switch in the ON position while not in use. This will shorten the life (charge/discharge times) of the battery.

SPECIFICATIONS

Battery
Fluorescent lamp
Operating time
Dimensions
Weight
HOW TO USE
1. Inserting or removing the battery (See Fig. 2)
To install, make it face the same as battery and insert
inwards in the direction
To remove, extract it towards the direction
down the latch of battery.
2. Replacing the fl uorescent lamp (See Fig. 3)
Turn the lamp cover in the direction
it. Remove the refl ector and lamp cap and replace
the fl uorescent lamp.
After replacing with the new lamp, install the refl ector and
lamp cap and reinstall the lamp cover in the direction
UB 18DSL
Lamp cover
1
323-340
Lamp cap
2
323-519
Fluorescent lamp
3
323-339
LED
Knob
BSL1430 (sold separately)
Compact FL9W (Code No.323339 for replacement fl uorescent lamps.)
Fluorescent light: Approx. 3.5 hours LED: Approx. 150 hours (Using full charged 3.0Ah Battery)
height 305mm × width 95mm × depth 96mm (without battery)
0.5kg (without battery)
in the fi gure.
while holding
and remove
2
Battery
3
● Do not disassemble, strike or otherwise apply impacts to
the lantern body.
● Do not let gasoline or thinner get on the lantern body.
● Do not leave the lantern in places that reach high
temperatures (60°C or higher) such as in vehicles under a
blazing hot sun.
Doing so might cause the lantern to break down.
● Do not use any other than the specifi ed storage batteries.
AUTOMATIC SWITCHING FUNCTION
The lamp automatically switches to the LED to prevent total loss
of light when the battery wears down.
* When the BSL1430 battery is used, LED may not be turned
on due to the battery's over discharge protection.
NOTE: Only parts 1, 2, 3 and 4 will need replacement.
Important notice on the batteries for the Hitachi cordless
power tools
Please always use one of our designated genuine batteries. We
cannot guarantee the safety and performance of our cordless
power tool when used with batteries other than these designated
.
by us, or when the battery is disassembled and modifi ed (such
as disassembly and replacement of cells or other internal parts).
Latch
Lamp cover
