Summary of Contents for Xrosstech Cruisers

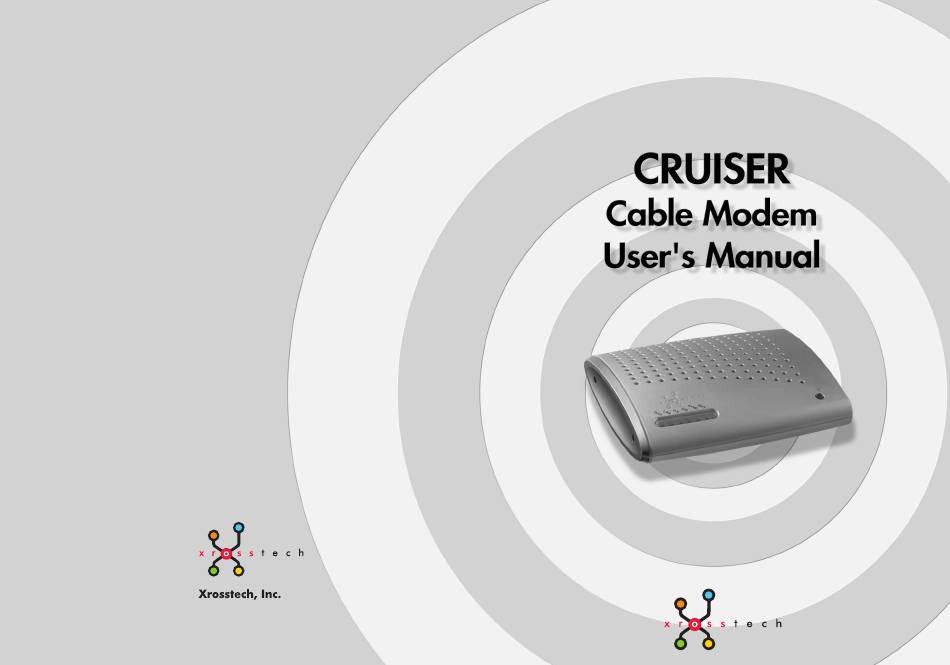

- Page 1 B-6~7F, 275-6, Samho Bldg,Yangjae-Dong Seocho-Ku, Seoul, Korea 137-130 TEL:82-2-3460-4500 FAX:82-2-578-7027 http://www.xrosstech.com E-mail :webmaster@xrosstech.com...
- Page 2 INFORMATION TO THE USER (Part 15, Section 15.105(b)) INFORMATION TO THE USER Preface This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
Table of Contents 1. Overview of CRUISER (XCM-2000) Cable Modem 1.1 Features 1.2 Appearance 1.3 Product Specifications 2. Installation of CRUISER (XCM-2000) Cable Modem 2.1 Preparations 2.2 Contents 2.3 Connection of Cable Modem (Household Version) 2.4 Connection of Cable Modem (Office Version) 3. -
Page 4: Overview Of Cruiser (Xcm-2000) Cable Modem
1. Overview of CRUISER (XCM-2000) Cable Modem 1.2 Appearance 1.1 Features Front The CRUISER (XCM-2000) cable modem has been developed to meet the specification, MCNS/DOCSIS V1.0. Hence, the CRUISER (XCM-2000) cable modem is compatible with any other cable modems which satisfy DOCSIS V1.0 and can interoperable with any DOCSIS V1.0 head-end systems (CMTS). -
Page 5: Product Specifications
1.3 Product Specifications 2. Installation of CRUISER (XCM-2000) Cable Modem Cable Modem Main Body 2.1 Preparations DOWNSTREAM UPSTREAM Center Frequency 91~857MHz 5~42MHz Modulation type 64/256QAM QPSK/16QAM The following preparations are required to access high- Max 30Mbps/64QAM Max 5.12Mbps/QPSK Data Rate Max 40Mbps/256QAM Max 10.24Mbps/16QAM speed data services using the CRUISER (XCM-2000) cable... -
Page 6: Connection Of Cable Modem (Household Version)
2.3 Connection of Cable Modem (Household Version) 2.2 Contents The CRUISER (XCM-2000) cable modem should be connected to the CATV network service line and user’ s devices as described below. The CRUISER (XCM-2000) cable modem package includes the followings On unpacking the modem package, you should check that there are all •Connect the coaxial cable from a ‘CATV’... -
Page 7: Connection Of Cable Modem (Office Version)
3. Use of CRUISER (XCM-2000) Cable Modem 2.4 Connection of Cable Modem (Office Version) 3.1 Verification of Functions The CRUISER (XCM-2000) cable modem should be connected to the CATV cable and user’ s devices as described below. The LEDs functions on the front panel of the CRUISER (XCM-2000) cable modem are as described below. - Page 8 The parts on the back panel of the CRUISER (XCM-2000) cable modem • • RDY(LED) function as described below. This LED indicates that the cable modem completed all preparatory procedures and is now ready to service. It should be always on while the modem normally operates. ETHERNET CABLE POWER...
-
Page 9: Trouble Shooting
3.2 Trouble shooting Please contact the dealer or call at the service center for usage or post-sale service of If you are not able to access Internet despite that ‘RDY’ and ‘SYNC’ are on, the CRUISER (XCM-2000) cable modem. We advise you to check the followings you can check the Ethernet port.
