Summary of Contents for Sify SMAC5700

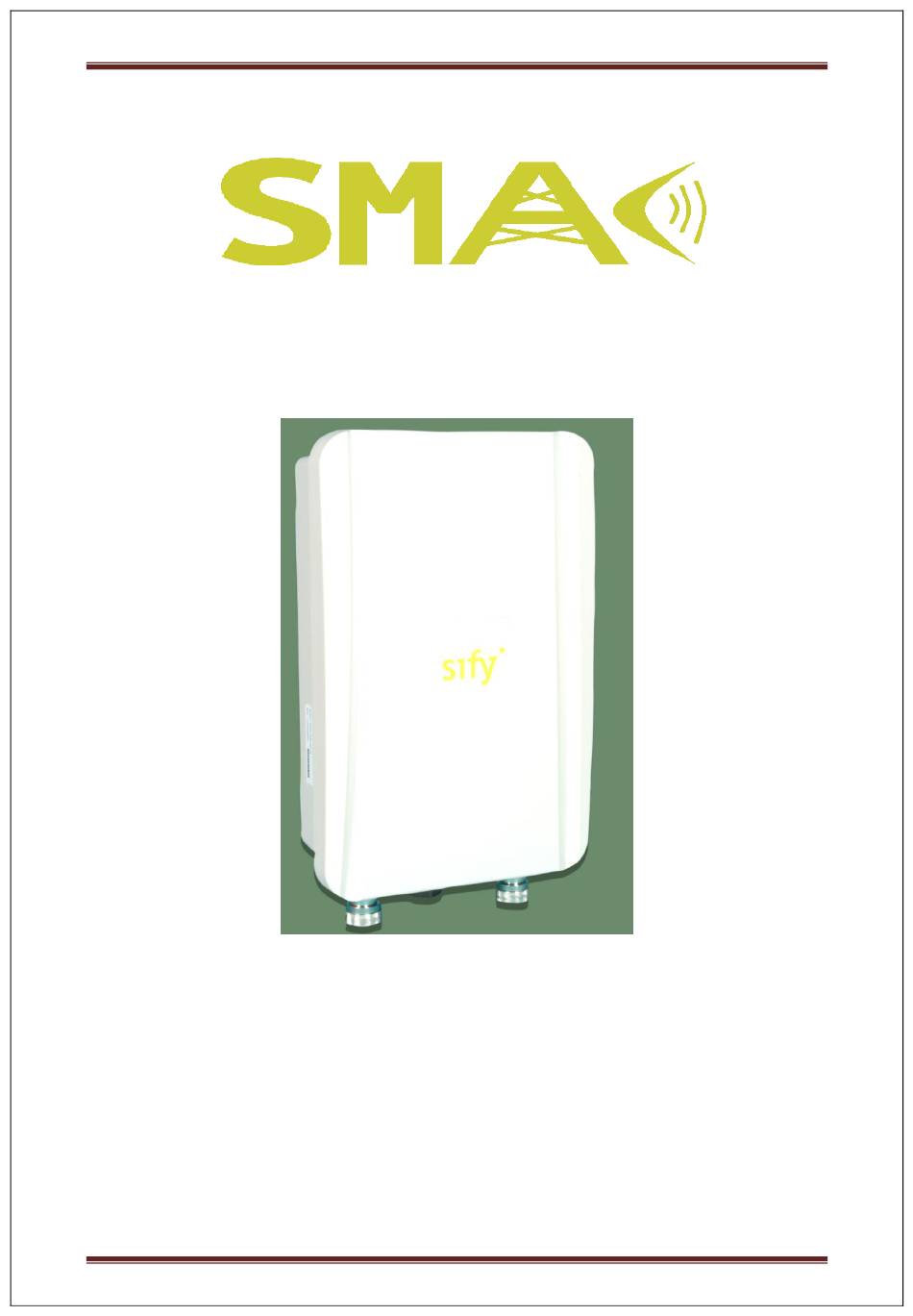

- Page 1 User Operating Manual USER OPERATING MANUAL RADIO Manufactured by, Senao Neworks. Sify Technologies LTD Page 1...
- Page 2 SENAO NETWORKS NO. 528 Fushing 3rd, Hwa-Ya tech. Park MANUFACTURER’S ADDRESS Kueishan, Tao Yuan 333, Taiwan FACTORY NAME SENAO NETWORKS NO. 528 Fushing 3rd, Hwa-Ya tech. Park Kueishan, Tao Yuan 333, Taiwan FACTORY ADDRESS VERSION Sify Technologies LTD Page 2...
- Page 3 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Sify Technologies LTD Page 3...
- Page 4 Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty. Sify Technologies LTD Page 4...
-
Page 5: Table Of Contents
1.5.6 Service Settings ........................19 1.6 Wireless Configuration ........................ 19 1.6.1 Wireless Network ......................... 19 1.6.2 Wireless Security Settings ....................21 1.6.3 Wireless MAC Filter ......................23 1.6.4 Wireless Advanced Settings ....................24 1.7 Management Settings ......................... 25 Sify Technologies LTD Page 5... - Page 6 1.7.5 Firmware Upgrade ....................... 28 1.7.6 Firmware Upgrade Settings ....................29 1.7.7 Time Settings ........................29 1.7.8 Log ............................30 1.7.9 Diagnostics ........................... 31 1.8 Device Discovery ......................... 31 1.8.1 Reset ............................32 1.9 LED Indication ..........................32 Sify Technologies LTD Page 6...
-
Page 7: Safety Precautions
Do not use product near water (i.e. wet basement, bathtub, sink or near a swimming pool, etc.), to avoid risk of electrocution Avoid using and/or connecting the equipment during an electrical storm, to avoid risk of electrocution. Sify Technologies LTD Page 7... -
Page 8: Odu
1.1 ODU Description Figure 1: Radio (SMAC5700) Thank you for using SMAC5700. It is a powerful, enhanced, enterprise scale product with functions Outdoor Base and Outdoor Subscriber. SMAC5700 uses the latest wireless technology 802.11n standard. It has faster transmit/receive wireless speed. SMAC5700 gives you a great advantage to save your time and cost to expend your network. -
Page 9: Technical Specification
User Operating Manual SMAC5700 is easily to install almost anywhere with Power over Ethernet for quick indoor installation and regular Power by Adapter. SMAC5700 can manage power level control, Narrow bandwidth selection, Traffic shaping and Real-time RSSI indicator. SMAC5700 is fully support of security encryption including Wi-Fi Protected Access (WPA2-PSK), 128 bit - AES Encryption and IEEE 802.1x with RADIUS. - Page 10 Source or Destination, Multicast traffic, Broadcast BANDWIDTH Flexible uplink and downlink bandwidth control CONTROL POWER POE (Power Over Ethernet ) Power adapter Input – 100-240V/ 0.6A ,50 to 60Hz Power adapter Output – 48VDC /0.5A Sify Technologies LTD Page 10...
-
Page 11: Odu (Radio)
A computer with an Ethernet interface and operating under Windows XP, Vista, 7 or Linux. Internet Browser that supports HTTP and JavaScript. 1.2 Hardware Overview Physical Interface 1 x LAN Port with PoE support 2 x RF port 1.3 Computer Configuration Instruction Sify Technologies LTD Page 11... -
Page 12: Assign A Static Ip
LAN properties window. IP Address entered in the TCP/IP Properties needs to be at the same subnet of the SMAC5700 IP Address. For example: SMAC5700’s default IP Address is 192.168.1.1 so the IP Address in the TCP/IP settings could be 192.168.1.10. -
Page 13: Status
User Operating Manual 2. Enter IP 192.168.1.1 into you address filter. If you have changed the SMAC5700 LAN IP address, make sure you enter the correct IP Address. 3. After connected to the SMAC5700 successfully, browser will pop out a Windows Security window. -
Page 14: Main
Click on the Wireless Client List link under the Status drop-down menu. This page displays the list of Clients that are associated to the SMAC5700. The MAC addresses and signal strength for each client is displayed. Click on the Refresh button to refresh the client list. -
Page 15: System Log
Click on the Connection Status link under the Status drop-down menu. This page displays the current status of the network, including network type, SSID, BSSID, connection status, wireless mode, current channel, security, data rate, noise level and signal strength. Sify Technologies LTD Page 15... -
Page 16: System
1.5 System 1.5.1 Switching Operation Mode The SMAC5700 supports operation modes: Outdoor Base, Outdoor Subscriber. In order to switching between the operating modes, please go to System -> click Operation mode. Operation Mode: Select an operation mode via Radio Button. -
Page 17: Ethernet Settings
Accept does not compile the changes, you must go to Status -> Save/Load to apply the new settings. IPV6 feature also included in this device. 1.5.3 Ethernet Settings Go to System -> Ethernet settings to change the speed and duplex of the device SMAC5700. Sify Technologies LTD Page 17... -
Page 18: Location
ID, customer mobile number & Link ID. 1.5.5 Spanning Tree Settings Go to System -> Spanning Tree settings to enable the spanning tree option and configure the STP parameters like hello time, Max Age, Forward Delay & Priority. Sify Technologies LTD Page 18... -
Page 19: Service Settings
Before you continue, please make sure you have chosen the correct operating mode. 1.6.1 Wireless Network This section is the basic wireless settings. Please read the description carefully and check the steps on chapter 10 in case you need more detail information. For Outdoor Base Mode Sify Technologies LTD Page 19... - Page 20 Just Edit to configure the profile. Accept does not compile the changes, you must go to Status -> Save/Load to apply the new settings. For Outdoor Subscriber Under Wireless Click wireless Network Sify Technologies LTD Page 20...
-
Page 21: Wireless Security Settings
1.6.2 Wireless Security Settings Wireless Security Settings section will guide you to the entire Security mode configuration: We strongly recommend that WPA2-PSK as your security settings. For Outdoor Base: Under Wireless Click wireless Network Sify Technologies LTD Page 21... - Page 22 Select Enabled from the drop down list to begin the configuration. Encryption Advanced Encryption System. Specify the security password. Passphrase Passphrase Length 64 Hexadecimal characters password length.(minimum 8 characters) For Outdoor Subscriber: Under Wireless Click wireless Network Sify Technologies LTD Page 22...
-
Page 23: Wireless Mac Filter
Wireless MAC Filters is used to Allow or Deny wireless clients, by their MAC addresses, accessing the Network. You can manually add a MAC address to restrict the permission to access SMAC5700. The default setting is Disable Wireless MAC Filters. ACL Mode can help to deny or allow certain Client to access the ACL Mode network. -
Page 24: Wireless Advanced Settings
In addition, if the heavy load traffic occurs, the wireless network can be recovered easily from interferences or collisions. Specify distance rage between AP and Clients. Longer distance Distance may lose high connection speed. Sify Technologies LTD Page 24... -
Page 25: Management Settings
Also we can provide Admin / User access & telnet by creating separate passwords. By default, this device is configured with a user name and password admin. For security reasons it is highly recommended that you create a new user name and password. Sify Technologies LTD Page 25... -
Page 26: Snmp Settings
(called protocol data units) to be sent to various parts of a network. Upon receiving these messages, SNMP-compatible devices (called agents) return data stored in their Management Information Bases. It can support SNMP V3 feature also. Sify Technologies LTD Page 26... -
Page 27: Backup/Restore Settings
This feature is very handy for administrators who have several devices that need to be configured with the same settings. Sify Technologies LTD Page 27... -
Page 28: Auto Reboot Settings
Click on Backup to save current configured settings. Save A Copy of Current Settings Restore Saved Settings SMAC5700 can restore a previous setting that has been saved. from a File Click on Browse to select the file and Restore. 1.7.4 Auto reboot settings Click on the Auto reboot setting link under the Management menu for auto rebooting the radio. -
Page 29: Firmware Upgrade Settings
User Operating Manual Upgrade process may take few minutes (approximate 3 minutes); please do not power off the device and it may cause the device crashed or unusable. SMAC5700 will restart automatically once the upgrade is completed. 1.7.6 Firmware Upgrade Settings Click on the Firmware Upgrade Settings link under the Management menu. -
Page 30: Log
Ethernet and Wireless interface. This log can be referred when an unknown error occurs on the system or when a report needs to be sent to the technical support department for debugging purposes. Sify Technologies LTD Page 30... -
Page 31: Diagnostics
1.8 Device Discovery . Click on the Device discovery link under the Management menu. This function displays the device information as well as associated SU information. Sify Technologies LTD Page 31... -
Page 32: Reset
Signal Strength WLAN_LED GREEN blinking fast Excellent (less than -63) GREEN blinking slow Good (-64 to -74 dBm) Alternate GREEN and AMBER Average (-75 to -80 dBm) AMBER blinking Poor (above -81 dBm) Wireless Link DOWN Sify Technologies LTD Page 32...
