Summary of Contents for Fence Mower FM30

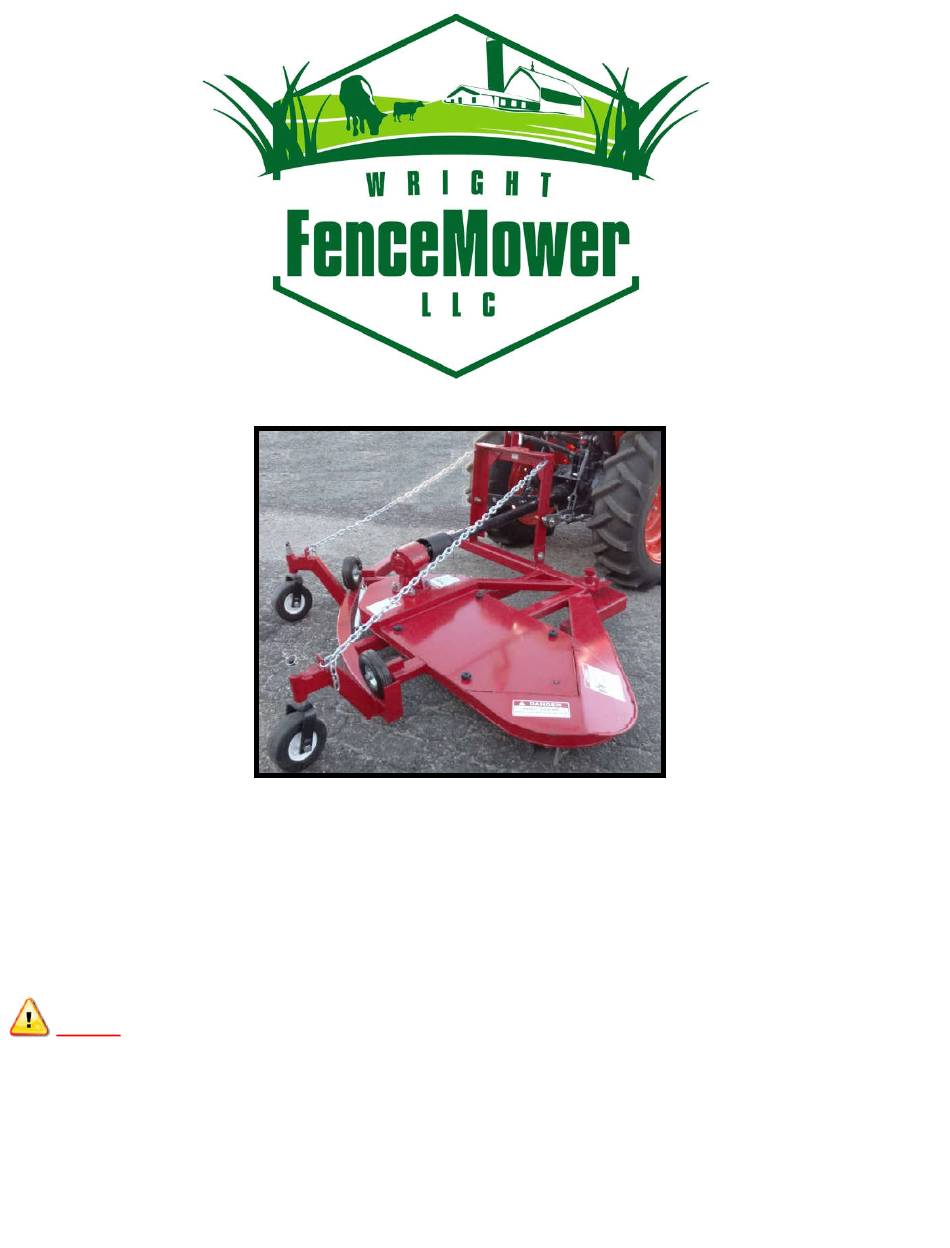

- Page 1 OPERATOR’S AND MAINTENANCE MANUAL FM30-FM60 FOR SERIAL #s STARTING WITH 1057 DANGER RELEASED 11/3/17 Read this manual and the manual for your tractor carefully to acquaint yourself with both machines before operating! For support and contact information Visit: www.fencemower.com Phone: 713-501-5356...
- Page 2 MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE Customer Pre-Operation Check List Reference Read, understand and follow the general safety rules listed in Page 2 this manual. Check decals for position and legibility Page 3 Check all blades for sharpness and condition. Page 7 ...
-
Page 3: Table Of Contents
Wright Fence Mower, LLC assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Wright Fence Mower, LLC reserves the right to revise and improve this product at any time. The illustrations in this manual are not intended for the safe and proper assembly or disassembly of this product, but for parts ordering reference only. -
Page 4: Section 1 Introduction
WARNING The upkeep of the fence mower is the responsibility of Indicates a potentially hazardous situation which, if not the user. This upkeep includes all shielding, guards, avoided, could result in death or serious injury. -
Page 5: Section 2 Safety Information
ALWAYS stop the tractor, disengage the PTO, set WARNING parking brake, turn off the tractor engine, remove key THE Fence Mower is designed for use only on tractors and wait for all rotary motion to stop BEFORE with 540-RPM power takeoff. Disengage the power dismounting the tractor. -
Page 6: General Safety Rules Continued
By law, you must replace any safety decals that are the machine. damaged or missing. You can order a replacement decal kit from Wright Fence Mower, LLC. Ask for part number 16808 when ordering. WARNING IN addition to the design and the confirmation of this... -
Page 7: Section 3 Assembly Instructions
• (2) ¾” bolts, washers, and nuts • (2) Category 1 lifting arm pins Step 17. Lower the fence mower to where the tail • (2) Chain with chain links attached • (1) PTO 1/2” bolt and nut (shear pin) wheels touch the ground. - Page 8 SECTION 3 Wright Fence Mower, LLC ASSEMBLY INSTRUCTIONS FM30-FM60 ASSEMBLY DIAGRAM/PHOTO...
-
Page 9: Section 4 Operating Instructions
Traveling Positioning Raise the mower to its maximum height when traveling. Position the fence mower as shown in the top view Additional ground clearance can be obtained by illustration. Once in position, you can engage the shortening the tractor hitch center arm. NEVER engage PTO and set the RPM’s to 540. -
Page 10: Section 5 Lubrication
Section 5 Wright Fence Mower, LLC LUBRICATION LUBRICATION Visually inspect the fence mower at least once a week. Lubricate parts with good lithium EP grease. If heavy, long-duration operation is expected, lubricate more frequently. Wipe off excess grease after lubricating. -
Page 11: Section 6 Maintenance
Section 6 Wright Fence Mower, LLC MAINTENANCE MAINTENANCE Danger NEVER attempt any checks, repairs or adjustments with the tractor engine running or the power take-off engaged. Adjustment of rotating parts while tractor engine is running can result in serious personal injury or death if the PTO accidentally engages. -
Page 12: Gearbox
Wright Fence Mower, LLC MAINTENANCE Gearbox Lube Level Input Shaft Seal and Cover Gasket After periods of heavy use (at least every 10 hours of Remove gearbox cover. operation), or after repairing the gearbox, or if lubricant Replace shaft seal and cover gasket. - Page 13 REFERENCE - FM 30 COMPLETE PARTS LIST...
- Page 14 16813 Driveshaft For FM-30 Key # Part No. Description Qty. 15112 Cross Kit (Series 4) 15579 Pin Kit 11436 Yoke - Tractor 15111 Yoke - Spline less 16725 Chain, Anti-Rotation 17796 Shield Kit - Complete Revised 11/23/16...
- Page 15 REFERENCE - FM 60 COMPLETE PARTS LIST...
- Page 16 16777 Driveshaft For FM-60 Key # Part No. Description Qty. 15112 Cross Kit (Series 4) 15579 Pin Kit 11436 Yoke - Tractor 15111 Yoke - Spline less 16725 Chain, Anti-Rotation 17796 Shield Kit - Complete Revised 11/23/16...
- Page 17 REFERENCE - FM-30 and FM-60...
- Page 18 11172 Gearbox FM-30 and FM-60 (40 H.P. Gearbox 1:1.93 Ratio) Key # Part No. Part Description Key # Part No. Part Description 15688 Input seal 15664 Pressure relief plug 15689 Face plate 15753 Gasket 15750 Ball bearing 16017 Output shaft w/gear 15690 Retaining ring 15750 Ball bearing 15475 Input shaft...
- Page 19 Bolt Torque Checking Bolt Torque NOTE: Bolt Torques shown are maximum The tables shown below give correct torque allowable values for ultimate safe working values for various bolts and capscrews. strength or external load-carrying capacity. Tighten all bolts to the torque specified in the The bolt torque are not applicable in cases chart unless otherwise noted.
- Page 20 Torque Specifications for Fine Threads Bolt Torque Fine Thread Diameter SAE-2 SAE-5 SAE-8 “A” LB-FT LB-FT LB-FT 1/4” - 28 5/16” - 24 3/8” - 24 7/16” - 20 1/2” - 20 9/16” - 18 5/8” - 18 3/4” - 16 7/8”...
-
Page 21: Warranty
Seller in writing of any defect in material or workmanship within sixty (60) days following the date of purchase. In no event will Wright Fence Mower, LLC be liable under this warranty unless written notice is received by the seller within one (1) year from the date of original retail sale. - Page 22 NOTES:...
- Page 23 NOTES:...
- Page 24 Wright Fence Mower, LLC For support and contact information Visit: www.fencemower.com or call: 713-501-5356...
