Summary of Contents for Shenzhen Combei Technology BP100A

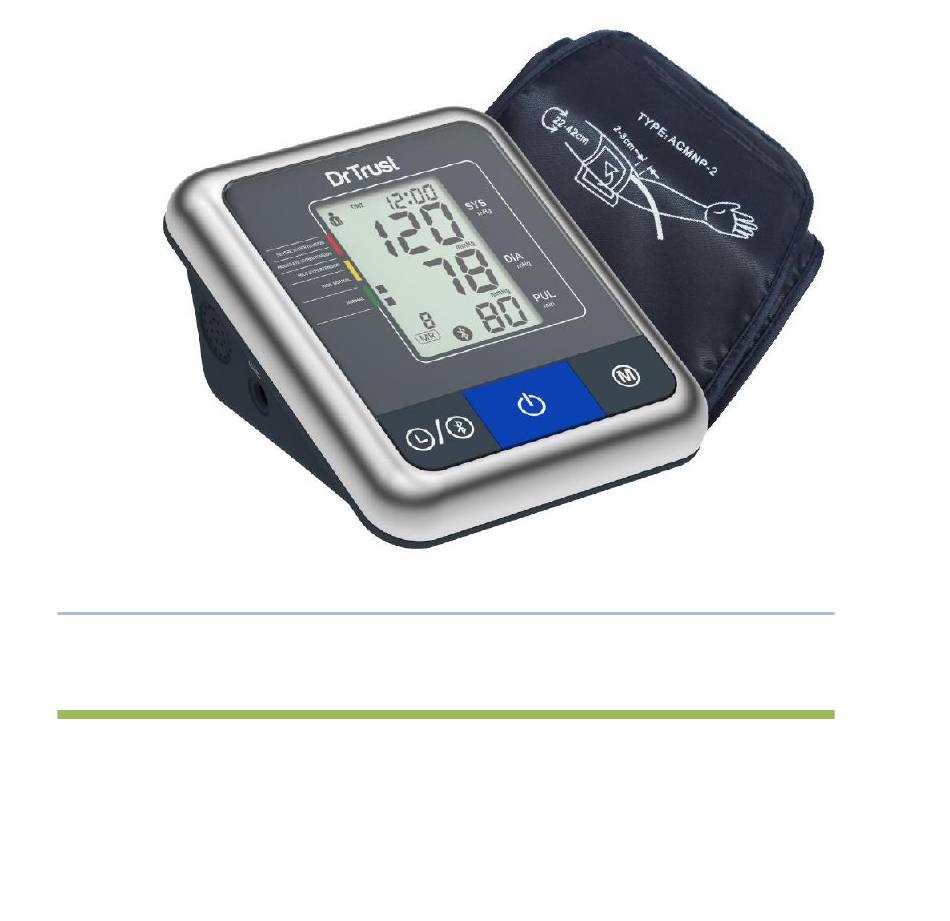

- Page 1 Digital Blood Pressure Monitor Automatic Upper Arm Style Instruction Manual Model No: BP100A IB Version:BP100A V1.1.4...
-
Page 2: Table Of Contents
Table Of Contents TABLE OF CONTENTS ....................2 1. INTRODUCTION ......................4 1.1. F BP100A ................... 4 EATURES OF THE 1.2. I ............. 4 MPORTANT INFORMATION ABOUT SELF MEASUREMENT 2. IMPORTANT INFORMATION ON THE SUBJECT OF BLOOD-PRESSURE AND ITS MEASUREMENT ........................5 2.1. - Page 3 10. SERVICE LIFE ......................19 11. BATTERY LIFE : ...................... 19 12.SAFEY,CARE AND DISPOSAL.................. 19 13.REFERENCE TO STANDARDS ................. 21 14.REMARK: ........................21 15. TECHNICAL SPECIFICATIONS ................22 16.MANUFACTURER'S DECLARATION ................. 23 17.MANUFACTURER INFORMATION : ................26 IB Version:BP100A V1.1.4...
-
Page 4: Introduction
1. Introduction 1.1. Features of the BP100A The blood-pressure monitor BP100A (with integrated time/date display) is a fully automatic, digital blood-pressure measuring device for use on the arm, which enables very fast and reliable measurement of the systolic and diastolic blood-pressure as well as the pulse frequency by way of the oscillometric method of measuring. -
Page 5: Important Information On The Subject Of Blood-Pressure And Its Measurement
To adjust the blood-pressure, the strength and frequency of the heart (Pulse), as well as the width of circulatory blood vessels is altered. The latter is effected by way of fine muscles in the blood-vessel walls. The level of arterial blood-pressure changes IB Version:BP100A V1.1.4... -
Page 6: Which Values Are Normal
Show these values to your doctor. Never use the results of your measurements to alter independently the drug doses prescribed by your doctor. IB Version:BP100A V1.1.4... -
Page 7: The Various Components Of The Blood-Pressure Monitor
«labile hypertension». Please consult your doctor if you suspect that this might be the case. Correctly measured diastolic blood-pressure values above 120mmHg require immediate medical treatment. 3. The various components of the blood-pressure monitor IB Version:BP100A V1.1.4... -
Page 8: Putting The Blood-Pressure Monitor Into Operation
4. Putting the blood-pressure monitor into operation IB Version:BP100A V1.1.4... -
Page 9: Inserting The Batteries
“sequentially to switch language to Hindi and mute (voice off) and go back to English and so on …Then press “ON/OFF” button to save your selection and exit. User selection: This advanced blood pressure monitor allows you to track blood pressure readings IB Version:BP100A V1.1.4... - Page 10 9. Press the TIME button again. The last two characters (Minutes) now blink. 10. The exact time can now be entered by pressing the MEMORY button 11. Press TIME button (or TIME / DATE or TIME): the unit of measurement will flash. IB Version:BP100A V1.1.4...
-
Page 11: Carrying Out A Measurement
Use a cushion for support if necessary. The performance of the automated sphygmomanometer can be affected by extremes of temperature, humidity and altitude. IB Version:BP100A V1.1.4... -
Page 12: Fitting The Cuff
Remain so for 2 minutes sitting quietly, before beginning with the measurement. d) Let legs uncrossed, feet flat on the floor, back and arm supported. 5.4. Measuring procedure After the cuff has been appropriately positioned, the measurement can begin: IB Version:BP100A V1.1.4... -
Page 13: Discontinuing A Measurement
The blood-pressure monitor automatically stores each of the last 120 measurement values. By pressing the MEMORY button, an average value of the last 3 measurements as well as the last measurement and the further last 120 measurements (MR119,MR118,…,MR1)can be displayed one after the other IB Version:BP100A V1.1.4... -
Page 14: Memory Full
BPM device, then hit start to test. The test data will be transmitted to your phone for storage. The operation method is as follows: 1. For the first time use: install the APP. After completion, the phone shows the app icon: software icons: IB Version:BP100A V1.1.4... -
Page 15: Appearance Of Ihb(Irregular Heart Beat) Detection
The LCD screen displays the “ ”symbol and flashes 4. After the device and mobile phone are successfully connected by bluetooth, the LCD screen of the device displays " ," and the mobile application switches to the test interface automatically (image4). IB Version:BP100A V1.1.4... - Page 16 " " button to return to the measurement interface. 6. Appearance of IHB (Irregular Heart Beat) Indicator for early Detection this symbol indicates that certain IHB ( irregular heart beat ) were detected during the IB Version:BP100A V1.1.4...
-
Page 17: Error Messages /Malfunctions
Contact you doctor if you continue to get unusual readings. Err8 The pressure in the cuff is too high (over 290 mmHg) Further Information - The level of blood-pressure is subject to fluctuations even with healthy people. IB Version:BP100A V1.1.4... - Page 18 1. Please read the following information and the points listed under value although the instrument functions «Common sources of error». Repeat the measurement. normally and the values displayed are Please note: Blood pressure fluctuates continually so normal successive measurements will show some variability. IB Version:BP100A V1.1.4...
-
Page 19: Care And Maintenance, Recalibration
Never open the device! Otherwise the manufacturer calibration becomes invalid! 9.Guarantee The blood-pressure monitor BP100A is guaranteed for 2 years from date of purchase. The guarantee does not apply to damage caused by improper handling, accidents, not following the operating instructions or alterations made to the instrument by third parties. - Page 20 A warning to remove primary batteries if the instruments is not likely to be used for some time Instrument care Clean the instrument only with a soft, dry cloth Disposal Batteries and electronic instruments must be disposed of in accordance with the locally IB Version:BP100A V1.1.4...
-
Page 21: Reference To Standards
The stipulations of the EU-Guidelines 93/42/EEC for Medical Products Class IIa have been fulfilled. 14.Remark: Some electrical and electrical equipments forbid to abandon and TUV NO. disposal at will Manufacturer’s name and address Reading Instruction Book before use IB Version:BP100A V1.1.4... -
Page 22: Technical Specifications
Memory function: 2 x 120 memories for 2 users (SYS, DIA, Pulse) Decompression: Constant exhaust valve system Power source: 4- size “AA” alkaline Batteries Operation temperature: 5~40°C/41~104°F Operation humidity: 15%~85%RH maximum Storage temperature: -10~55°C/14~131°F Storage humidity: 10%~95%RH maximum IB Version:BP100A V1.1.4... -
Page 23: Manufacturer's Declaration
EN60601-1,EN60601-1-2 15.Manufacturer's Declaration The BP100A is intended for use in the electromagnetic environment specified below. The customer or the user of the BP100A should assure that it is used in such an environment. Electromagnetic Emissions: (IEC60601-1-2) - Page 24 IEC60601-1-2 IEC60601-1-2 Immunity test Electromagnetic environment - guidance test level test level Portable and mobile RF communications equipment should be used no closer to any partof the BP100A, IB Version:BP100A V1.1.4...
- Page 25 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the BP100A is used exceeds the applicable RF compliance level above, the BP100A should be observed to verify normal operation.
-
Page 26: Manufacturer Information
The BP100A is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BP100A can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the BP100A as recommended below, according to the maximum output power of the communications equipment. - Page 27 RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 5mm between the radiator & your body. IB Version:BP100A V1.1.4...
