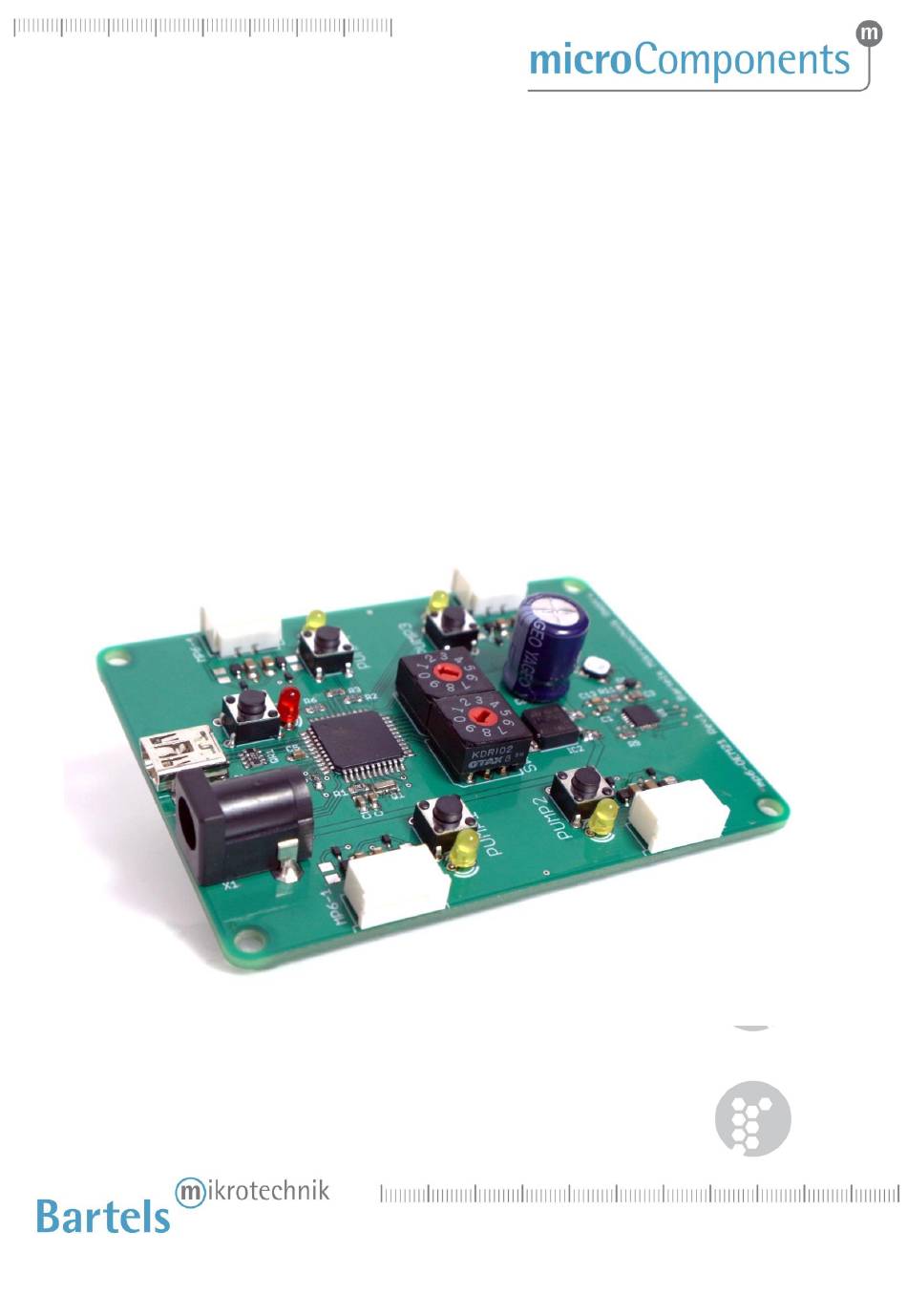

Operating Manual
for
mp6-QuadEVA board
Sold in North America by:
Servoflo Corporation
75 Allen Street Lexington, MA 02421
Tel: 781-862-9572
www.servoflo.com / info@servoflo.com
Bartels Mikrotechnik GmbH, Konrad-Adenauer-Allee 11, 44263 Dortmund, Germany
www.bartels-mikrotechnik.de, info@bartels-mikrotechnik.de
1
(03.2018) rev.4
Tel: +49-231-47730-500, Fax: +49-231-47730-501
Advertisement
Table of Contents
Summary of Contents for Servoflo mp6-QuadEVA
- Page 1 Operating Manual mp6-QuadEVA board Sold in North America by: Servoflo Corporation 75 Allen Street Lexington, MA 02421 Tel: 781-862-9572 www.servoflo.com / info@servoflo.com Bartels Mikrotechnik GmbH, Konrad-Adenauer-Allee 11, 44263 Dortmund, Germany www.bartels-mikrotechnik.de, info@bartels-mikrotechnik.de (03.2018) rev.4 Tel: +49-231-47730-500, Fax: +49-231-47730-501...
-
Page 2: Table Of Contents
Content Introduction ..................................3 Proper use ................................... 3 Intended purpose ..............................3 Misuse ..................................3 Staff selection and qualification ........................3 Safety notice ................................4 Overview ..................................... 5 Interface and mode of operation ..........................7 Push-button ................................7 Rotary knob: pump voltage ..........................7 Rotary knob: pump frequency .......................... -
Page 3: Introduction
2 Proper use Intended purpose The mp6-QuadEVA was designed to control up to four micropumps for gas pumping, i.e. four pieces of mp6-AIR micropumps. Nevertheless it is also possible to pump liquids, either with the mp6-AIR, mp6-pp or the standard mp6 pump;... -
Page 4: Safety Notice
Safety notice The mp6-QuadEVA generates voltages of up to 260 Vpp. All parts of the evaluation board can carry voltages in this range. Therefore, the board should only be used by qualified personnel. Although the output power of the module is very low, proper insulation according to the application conditions needs to be considered by the customer. -
Page 5: Overview
3 Overview The mp6-QuadEVA will only be available as a set of the following components: mp6-QuadEVA Board power supply 7.5 V; 1000 mA Mini-USB cable 4x micropump mp6-AIR software and driver CD (optional, software and driver will be send via Email) - Page 6 4. Mini USB connector 5. DC connector 6. LED signaling activated pump (one per pump) 7. Rotary knob for pump voltage setting (SW1) 8. Rotary knob for pump frequency setting (SW2) 9. Push-button to turn the pump on/off (one per pump) Bartels Mikrotechnik GmbH, Konrad-Adenauer-Allee 11, 44263 Dortmund, Germany www.bartels-mikrotechnik.de, info@bartels-mikrotechnik.de (03.2018) rev.4...
-
Page 7: Interface And Mode Of Operation
4 Interface and mode of operation The board does not have any main switch. When connecting the power supply to the DC connector (5) the board is ready for operation. Connecting to a PC is optional. The board can be operated without PC connection. -
Page 8: Rotary Knob: Pump Frequency
Rotary knob: pump frequency With the rotary knob “SW2” (8) it is possible to change the frequency for all pumps, please use a small flat blade screwdriver. The table below lists the possible frequencies: position SW2 pump frequency 50 Hz 75 Hz 100 Hz 200 Hz... -
Page 9: Local Control
The appropriate driver for the board will be send via Email. The mp6-QuadEVA can also be used via LabView, Matlab and the like. Using LabView, please ensure that the “NI Serial” package is installed. This will be installed in regular cases together with LabView, but sometimes this option is skipped during install. -
Page 10: For "Windows 7
Connect the control unit with the USB port. A message appears that new hardware was found. Step 3: Open the device manager and double click the item "mp6-QuadEVA driver" filed under "additional hardware" (or similar). In the pop up window click on "update driver" and select the directory including the driver files (e.g. -
Page 11: Software
Ensure that the board is connected to the PC and the driver is installed. After the software has started the COM-port for the mp6-QuadEVA board has to be selected. If it is not present in the dropdown list please verify that the board is correctly connected and press on “Update” to refresh the list. -
Page 12: Maintenance
5 Maintenance Cooling The board may create some heat at the control chip when under continuous operation and at max performance. It was successfully tested for the duration of one hour at 800 Hz, 250 V and four connected pumps; no active cooling was applied. However, it is recommended to take care of sufficient air flow to remove excess heat or consider installing some active cooling on the board. -
Page 13: Dimensions
6 Dimensions 80 mm (3.15 in.) Height over all: 16 mm (0.63 in.) 60 mm (2.36 in.) Figure 7 Dimensions of the mp6-QuadEVA Bartels Mikrotechnik GmbH, Konrad-Adenauer-Allee 11, 44263 Dortmund, Germany www.bartels-mikrotechnik.de, info@bartels-mikrotechnik.de (03.2018) rev.4 Tel: +49-231-47730-500, Fax: +49-231-47730-501... -
Page 14: Technical Data And Performance Charts
Order code: mp6-QuadEVA evaluation board The mp6-QuadEVA is an evaluation board that allows controlling up to four mp6 micropumps simultaneously with one setting and up to a frequency of 800 Hz. It is possible to change pump voltage and pump frequency directly with the rotary control elements at the board or via USB. -
Page 15: Serial Solution
Right diagram: Amplitude drop behavior of mp6-QuadEVA. 8 Serial solution The mp6-QuadEVA was designed as an evaluation board and does not represent the right solution for serial products. However, the circuit can be adapted for various applications. On request we offer such a development for your customized solution. Additionally it is possible to order the schematics, part list and source code for a licensing fee. - Page 16 Bartels Mikrotechnik GmbH Konrad-Adenauer-Allee 11 44263 Dortmund Germany www.bartels-mikrotechnik.de info@bartels-mikrotechnik.de For tutorials and further information Visit our BLOG: http://blog.bartels-mikrotechnik.de Or our YouTube channel: https://www.youtube.com/user/BartelsMikrotechnik You can also find us here: Facebook Twitter Xinq Instagram LinkedIN Tel: +49-231-47730-500 Fax: +49-231-47730-501 Bartels Mikrotechnik GmbH, Konrad-Adenauer-Allee 11, 44263 Dortmund, Germany www.bartels-mikrotechnik.de, info@bartels-mikrotechnik.de (03.2018) rev.4 Tel: +49-231-47730-500, Fax: +49-231-47730-501...
