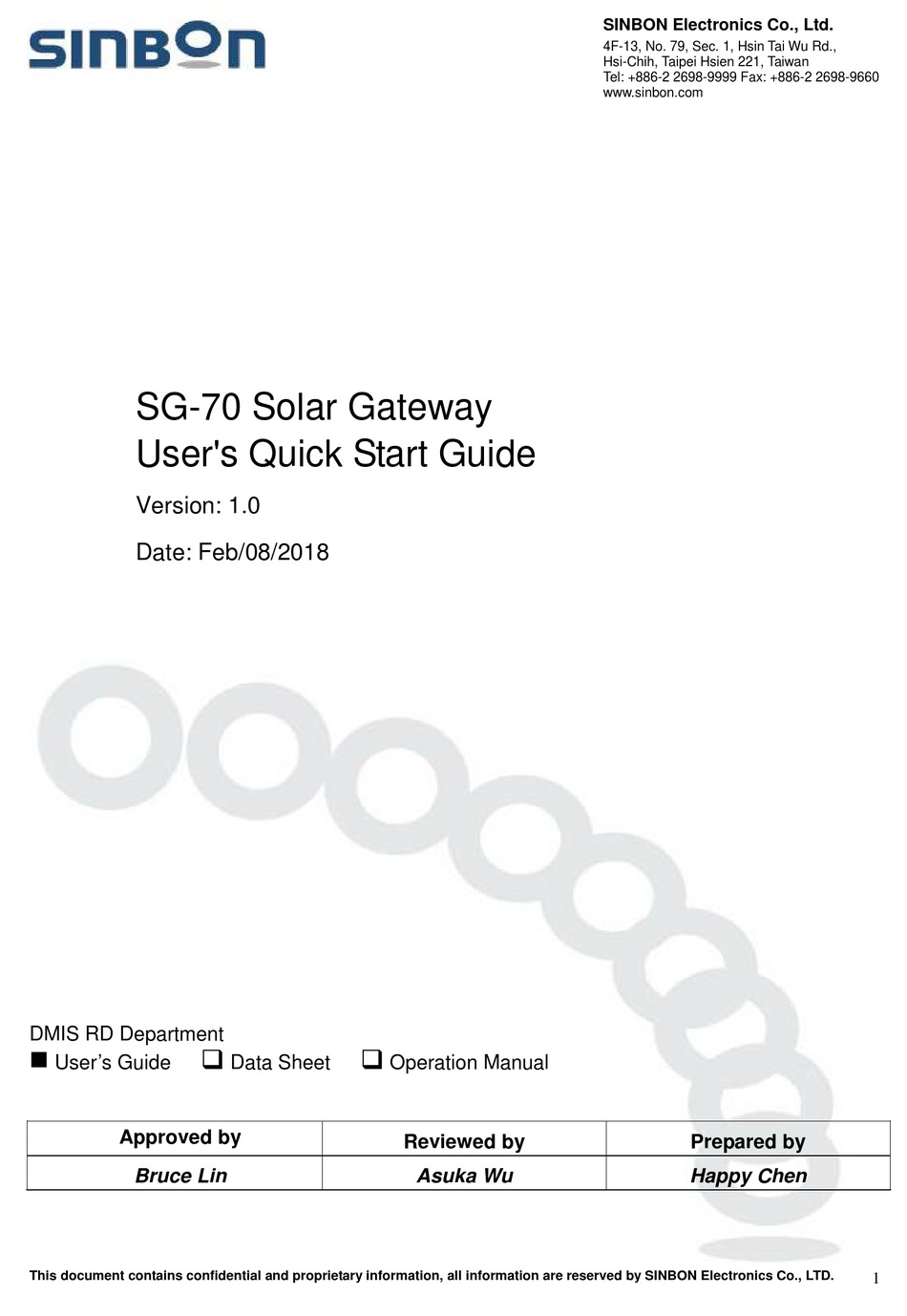

SG-70 Solar Gateway

User's Quick Start Guide

Version: 1.0

Date: Feb/08/2018

DMIS RD Department





User's Guide

Approved by

Bruce Lin

This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.



Data Sheet

Operation Manual

Reviewed by

Asuka Wu

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,

Hsi-Chih, Taipei Hsien 221, Taiwan

Tel: +886-2 2698-9999 Fax: +886-2 2698-9660

www.sinbon.com

Prepared by

Happy Chen

Table of Contents

Need help?

Do you have a question about the SG-70 and is the answer not in the manual?

Questions and answers

Summary of Contents for SINBON SG-70

Page 1 DMIS RD Department    User’s Guide Data Sheet Operation Manual Approved by Reviewed by Prepared by Bruce Lin Asuka Wu Happy Chen This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 2 We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 3: Table Of Contents
6. LED Status descriptions…………………………………………………………17 7. Reset to the factory default setup instruction……………………………….17 8. Troubleshooting……………………………………………………………...…...18 9. Product specifications…………………………………………………………...18 10. Label…………………………………………………………………………..19 11. Dimension………………………………………………………………………….19 12. Safety Notices…………………………………………………….……………….20 13. FCC Statement…………………………………………………………………….20 This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 4: Introduction
SG-70 Solar 5 dBi Dipole Waterproof M4-0.7-12 Brss Clamp core for Gateway Antenna connector screw Ethernet cable 1pcs 1pcs 1set 4pcs 1pcs 3. Hardware overview. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 5: Solar Gateway Installation
LAN cable: 2 pcs, The one for LAN port and others for WAN port used (without attach, the cable length, according to the real environment decision).  M4-0.7x12 screw: 4 pcs(In the Solar gateway package). This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 6 The LAN port used Ethernet cable assembly with waterproof connector; the kits have 4 parts. *Please do not discard the waterproof washer! It will be used later! (Step1). The LAN cable through the part 1. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 7 Hsi-Chih, Taipei Hsien 221, Taiwan Tel: +886-2 2698-9999 Fax: +886-2 2698-9660 www.sinbon.com (Step2). The LAN cable through the part 2. (Step3). The LAN cable through the part 2. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 8 (Step4). The L part 3 through the part 2. (Step5). The part 1 Spin pre-installation and lock into the part 3, assembly complete. *Please don’t lock it This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 9 (Step6). The waterproof connector kits part 4 waterproof washer, set on the Ethernet port at the Solar gateway. (Step7). Connect the Ethernet cable to the Ethernet port at the Solar gateway. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 10 (Step9). The Second LAN cable for WAN port used, after the RJ45 connector front end 12cm, the Ethernet cable around 1 circle on the clamp core. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 11 LED is fixed light. (Step11). The LAN ports Ethernet cable is connect with the “POE port” at the POE adapter. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 12 (Step12). The WAN port Ethernet cable is connect with the “LAN port” at the POE adapter and others side connect to the PC or NB. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 13 Tel: +886-2 2698-9999 Fax: +886-2 2698-9660 www.sinbon.com (Step13). Use screws locked the Solar gateway on the wall. (Pure wall hanging type & box hanging type). This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 14 Solar gateway power LED is light. *Database activity and Wireless activity LEDS, after complete all system setting, will be function, in the stage no light is right! This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 15: The Solar Gateway Basic Local Network Configuration
(Step2) Open browser, key in the URL http://192.168.0.100/ after complete press enter.  In the login page, enter the following information, complete press Login User Name: admin Password: admin This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 16 (Step4). In the wire page, the local networks default setting as follows. Change DHCP setup to ON, finish enter the Confirm  IP Address：192.168.0.100  Subnet Mask：255.250.250.0  Default Gateway：192.168.0.1  DHCP : ON This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 17: Led Status Descriptions
7. Reset to the factory default setup instruction. (Step1). At the system turn on mode, press and hold the SG-70 the reset button. (Step2). After the Power LED is flash 3 time and waiting 10 seconds the system will be restart the system completed.
Page 18: Troubleshooting
AC 100~240V/50~60Hz Operating : -20ºC to 65ºC Temperature Storage: -30ºC to 70ºC Humidity 0 % to 95% non-condensing Ingress Protection Rating IP65 Certifications FCC only This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 19: Label
Tel: +886-2 2698-9999 Fax: +886-2 2698-9660 www.sinbon.com 10. Label Item Description Label location A9310451-001(SG-7 0) Label location_201 Certification label A9310451-001(SG-7 0) Reg label_2017120 11. Dimension This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 20: Safety Notices
(2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
Page 21 4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, Taipei Hsien 221, Taiwan Tel: +886-2 2698-9999 Fax: +886-2 2698-9660 www.sinbon.com authority to operate the equipment. This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.
