Summary of Contents for Trion AIR BOSS

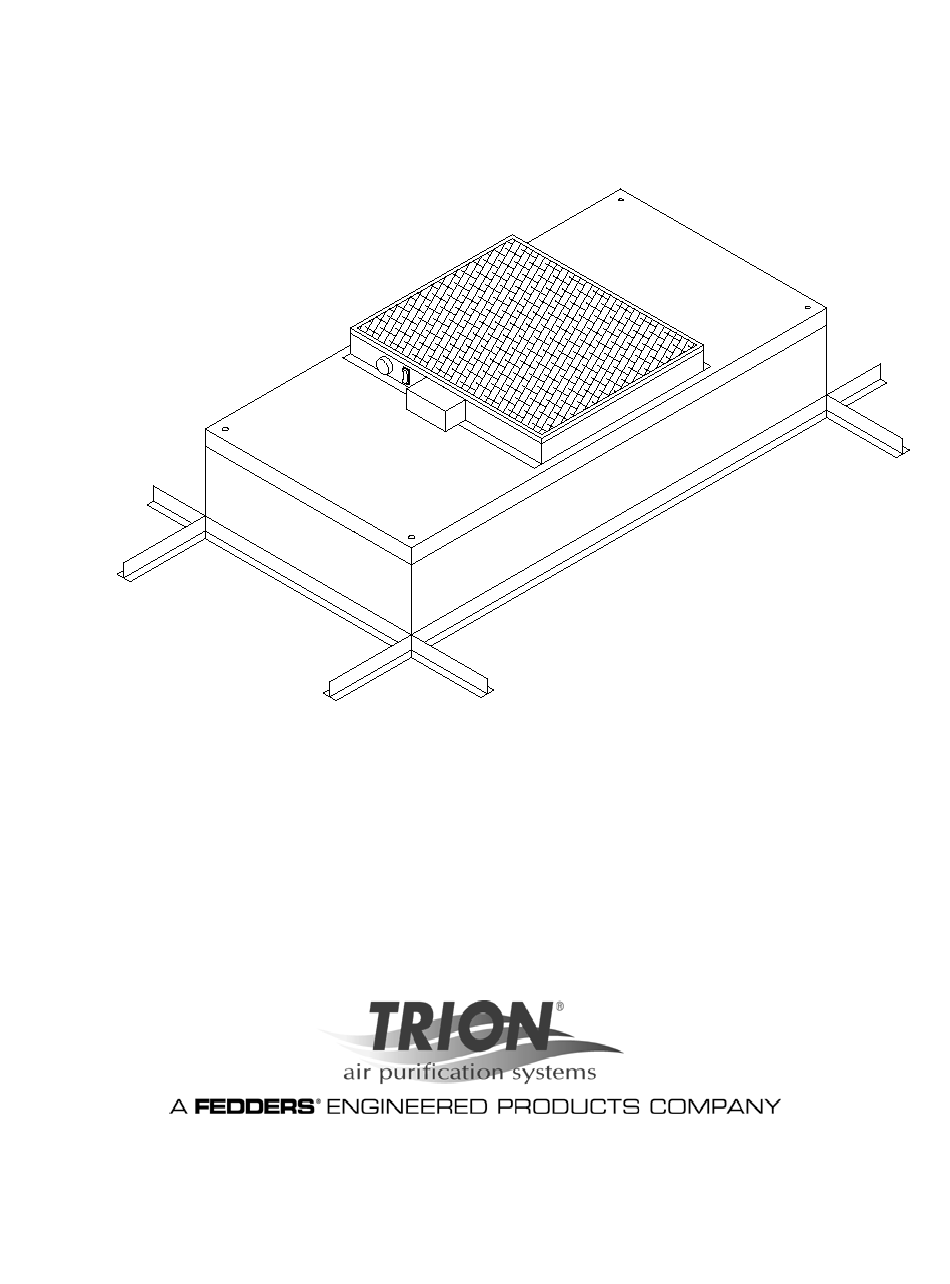

- Page 1 *** READ AND SAVE THESE INSTRUCTIONS *** TRION AIR BOSS DUST ELIMINATOR OWNER’S MANUAL 101 McNeill Road • Sanford, NC 27330 (919) 775-2201 • Fax: (919) 774-8771 • (800) 884-0002 www.trioninc.com MANUAL PART NO. 149739-001 • December 2002...
- Page 2 If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application. Use this unit in the manner intended by the manufacturer. If you have any questions, contact the manufacturer. Trion, Inc. 101 McNeill Road Sanford, North Carolina 27330, U.S.A. Tel:...
-
Page 3: Table Of Contents
Table of Contents Title Page INSTALLATION……………………………………………………………………….. 2 SERVICE: CLEANING THE ELIMINATOR PREFILTER………..………………… 4 III. SERVICE: REMOVAL AND REPLACEMENT OF THE HEPA FILTER……………5 SERVICE: REMOVAL AND INSTALLATION OF THE MOTOR…………………..6 ON/OFF SWITCH-SPEED/AIRFLOW ADJUSTMENTS……………………………...8 TROUBLE SHOOTING…………………………………………………………………9 VII. ELIMINATOR WIRING DIAGRAMS…………………………………………………10 VIII. ELIMINATOR REPLACEMENT PARTS LIST………………………….…………….11 WARRANTY……………………………………………………………………………12 TESTING…………………………………………………………….………………….13 ELIMINATOR OWNER’S MANUAL... -
Page 4: Installation
INSTALLATION Note: The ELIMINATOR’s Filter Unit is completely assembled at the factory with the exception of the prefilter, optional ¼” (0.64 cm)-20 eyebolts, and the “tee” bar gasketing that are used when hanging the unit from an overhead structure. Step 1A. Store units on 4’... - Page 5 Step 2A. Place the filter face side of the unit flat to the floor. Step 2B. If optional eyebolts are ordered, screw the four eyebolts into the nutserts on the lid assembly before lifting into an overhead position. Step 3. Raise the unit and secure it into place using “S”...
-
Page 6: Service: Cleaning The Eliminator Prefilter
SERVICE: Cleaning the ELIMINATOR’s Prefilter WARNING! Disconnect the unit from the electrical power source before attempting any service. Note: To keep the filter in top operating condition, washing the foam prefilter is recommended every three to six months. Step 1. To gain access to the prefilter, remove the ceiling panel next to the unit, if applicable. -
Page 7: Service: Removal And Replacement Of The Hepa Filter
III. SERVICE: Removal and replacement of the HEPA filter. WARNING! Disconnect the unit from the electrical power source before attempting any service. Step 1. To gain access to the HEPA filter, remove the ceiling panel next to the unit, if applicable. -
Page 8: Service: Removal And Installation Of The Motor
Disconnect the unit from the electrical power source before attempting any service. WARNING! Electrical service should be performed by licensed electricians or authorized Trion service technicians. Step 1. To gain access to the motor, remove the ceiling panel next to the unit, if applicable. - Page 9 ELIMINATOR OWNER’S MANUAL Page 6 Step 7. Remove the six screws to free the venturi ring and the motor/blower assembly from the lid assembly. (see Figure 6). Step 8. Using a 5/32” (0.42 cm) Allen wrench, remove the blower wheel from the motor shaft.
- Page 10 ELIMINATOR OWNER’S MANUAL Page 7 ON/OFF Switch/Speed Control – Speed/Airflow adjustment: A. All Eliminator units are equipped with a two-position toggle switch, which is located on the front side of the electrical junction box on top of the unit. B. The top position is “OFF”. The bottom position is “ON”. (See Figure 4). C.
-
Page 11: Trouble Shooting
WARNING! Disconnect electrical power to the unit before attempting any electrical related service. ELIMINATOR OWNER’S MANUAL Page 8 Trouble Shooting: Low Air Velocity Step 1. Check prefilter media; replace or clean as necessary. Step 2. Adjust variable speed control for higher blower output. Step 3. -
Page 12: Eliminator Wiring Diagrams
ELIMINATOR OWNER’S MANUAL Page 9 VII. ELIMINATOR Wiring Diagrams Figure 5... -
Page 13: Eliminator Replacement Parts List
Power Cord 10” (25.40 cm) or 12” (30.48 cm) diameter A/C intake collar ULPA filter Replacement parts are available through your authorized Trion representative. If you cannot locate a representative in your area, contact Customer Service at: TRION, Inc. 101 McNeill Road Sanford, North Carolina 27330, U.S.A. - Page 14 ELIMINATOR OWNER’S MANUAL Page 11 2X4 ELIMINATOR WITH 1/8 HP MOTOR 0.40 0.30 800 RPM 0.20 700 RPM 600 RPM 0.10 500 RPM 400 RPM 0.00 AIR FLOW (FPM)
-
Page 15: Warranty
(3) years. The HEPA filter shall only be warranted against loading for a period of two (2) years when operated in clean room conditions. Trion’s sole obligation under this warranty is to repair or replace any parts of the equipment which are defective for a period of three (3) years from the invoice date, provided that the repair or replacement is actually performed within the three (3) year period from the invoice date. -
Page 16: Testing
TESTING Each ELIMINATOR filter unit is thoroughly tested at the factory before shipment. However, because of the “rigors” of shipping, TRION encourages its re-test after installation. TRION recommends that the customer contact an independent organization, with technicians trained and experienced in performance evaluation and maintenance of clean air equipment.
