Related Manuals for Radia 5315 Speed Demon 5
Summary of Contents for Radia 5315 Speed Demon 5

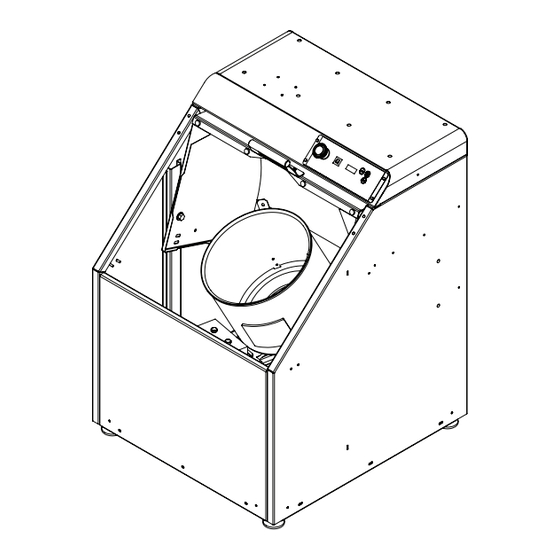

- Page 1 Owner’s Manual: 5315 Speed Demon 5 Five-Gallon Vortex Mixer Models 0-5315-PB (110V, 60 Hz Digital Display) www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
-
Page 2: Table Of Contents
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 Table of Contents Safety Information Trouble Shooting 1.1 Safety Precaution Labels Wiring Diagram 1.2 Saftey Precaution Summary Introduction Exploded Views 2.1 Application 8.1 Electrical Assembly 2.2 Specifications 8.2 Enclosure Assembly 8.3 Drive, Bottom Assembly Unpacking &... -
Page 3: Safety Information
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 1. Saftey Information Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE. -
Page 4: Safety Precaution Labels
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 Safety Information, Continued.. 1.1 Safety Precaution Labels WARNING WARNING ADVERTENCIA ADVERTENCIA AVERTISSEMENT AVERTISSEMENT -This machine is not explosion proof rated. - Machine must be properly grounded before use; improper grounding could -Review product label, Material saftey Data Sheet, and HMIS rating of cause electric shock and injury. -
Page 5: Saftey Precaution Summary
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 Safety Information, Continued.. 1.2 Safety Precaution Summary WARNING! To avoid electric shock, don’t get the timer, control panel, or wiring wet. DO NOT attempt to replace any damaged electrical wire or components. Improper This machine is not explosion proof rated. -
Page 6: Introduction
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 2. Introduction 2.1 Application 2.2 Specifications Unit Size, 5315PB: W 26.3 in. (66.7 cm) D 28 in. Congratulations on your purchase of the (71.1 cm) H 36.5 in. (927 cm) Speed Demon 5 Vortex Mixer. -
Page 7: Unpacking & Install
1.2, Safety Precaution Summary, for grounding information). NOTE: If the machine needs to be shipped any time, contact Radia Products to obtain the appropriate instruction sheet, part no. 1785025 and shipping block assembly, part no. 9784291. See section 9, Ordering, for ordering information. -
Page 8: Operation
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 4. Operation 4.1 Control Panel E-Stop (A): Only use to immediately cut the power to the machine • • Circuit Breaker (B): Reset power after cause for circuit trip is fixed. •... -
Page 9: Install A Container
If the container handle wasn’t properly secured, press the STOP button on the control panel. NOTE: If colorant has been added to the paint, be sure to reattach paint can lid tightly (using the RADIA PRODUCTS Lid Press, Part No. 0-5080). Figure 1... -
Page 10: Troubleshooting
Machine door does not make Reset by pressing circuit breaker contact with limit switch back in Faulty door limit switch Contact Radia's Customer Care Faulty controller Contact Radia's Customer Care Faulty motor Contact Radia's Customer Care Worn, damaged, or loose drive... -
Page 11: Wiring Diagram
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 7. Wiring Diagrams www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 12: Exploded Views
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 8. Exploded Views 8.1 Electrical Assembly Description Description 9786816 PLATE, DIGITAL TIMER 5784827 e-stop switch 9781367 Screw Hex Thd Form #8 X .50 9787227 GUARD, LIMIT SWITCH 9786232 SPACER 10 5783815 Switch, Limit 1hp 5786234 TIMER, DIGITAL, HORIZONTAL DISPLAY, 120V 11 9781840 Nut, Keps #8-32 9783595 Nut, Lock, Nylon 4-40... -
Page 13: Enclosure Assembly
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.2 Enclosure Assembly Description Description 9787223 PANEL WELDMENT, RIGHT - 5315 12 9784361 BUSHING, STEEL 9787218 COVER WELDMENT - 5315 13 9782362 BUSHING, BRONZE 9787214 PANEL WELDMENT, LEFT - 5315 14 9780886 SCREW HEX 3_8-16 X 1.00 9787216 PANEL, FRONT-5315 15 9106254 Bumper, Foot... -
Page 14: Drive, Bottom Assembly
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.3 Drive, Bottom Assembly Description Description 6784582 Speed Reducer Kit - 5315 9780886 SCREW HEX 3_8-16 X 1.00 6786030 MOTOR, AC, 1 HP, 56C FOOT MOUNT 9780193 Nut, Nylock 3_8-16 9784259 Plate, Top - Mix Frame 9782319 KEY STOCK 3_8 X 3_8 X 4.00 9784258 Bracket, Gearbox... -
Page 15: Drive, Middle Assembly
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.4 Drive, Middle Assembly ID Description ID Description 9784228 Gear, Ring 9784360 COUNTERWEIGHT - 5315 9784261 Retainer, Ring Gear 9784299 Screw Hex 3_8-16 x 4.50 Partial Thread 9784282 SCREW, SOC HD CAP 5_16 -18 X 1.25 9780193 Nut, Nylock 3_8-16 6787072 Bearing Housing Assy, Drive Shaft - 5315... -
Page 16: Drive, Can Holder Assembly
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.5 Drive, Can Holder Assembly Description Description 9784230 Arm, Orbit 9784264 Holder, Can - 5315 9784348 CAN DRIVE WELDMENT 5315 9784327 Plate, Round - 5315 9784229 Gear, Pinion 10 6785232 Ring, Rubbe r 9782316 Bushing, Trantorque 11 9782904 Screw Button 5_16-18 x .75... -
Page 17: Frame Assemblyl
1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.5 Frame Assembly Description Description 9784249 Base Weldment - 5315 10 9784255 Damper, Disc 9784250 FRAME, SUSPENDED - 5315 11 6784738 ISOLATOR ASSEMBLY - 5315 9784252 Spring, Extension 12 9780182 Nut, Nylock 5_16-18 9781543 Screw Hex 3_8 X 2_25 13 9784326 Bumper, Single Round Stud... -
Page 18: Ordering
5315 ECO 18-0034 July 2018 9. Ordering Replacment Parts HOW TO ORDER REPLACEMENT PARTS Replacement parts can be ordered from Radia by telephone, fax, or email: RADIA 800-221-1083 763-533-2969 763-533-0015 (FAX) orders@radiaproducts.com If you need help in determining the proper part(s) to order, please call Customer Care. -
Page 19: Warranty
Radia equipment with structures, accessories, equipment, or materials not supplied by Radia. Subject to the limitations set forth above, Radia shall (i) repair or replace the equipment (or the defective part) or (ii) credit or refund the price of such equipment. Costs of labor and transportation for service of machines under this warranty will also be covered during the warranty period if Radia elects to repair or replace the equipment. - Page 20 1784242 Rev X Owner’s Manual: 5315 ECO 18-0034 July 2018 For sales or service, please contact RADIA Attn: Customer Service Department 14900 21st Ave N Plymouth, Mn 55447 U.S. Telephone: 800.221.1083 International Telephone: 763.533.2969 Fax: 763.533.0015 E-mail: info@radiaproducts.com www.radiaproducts.com For instructional "How To" videos please visit: www.radiaproducts.com...
