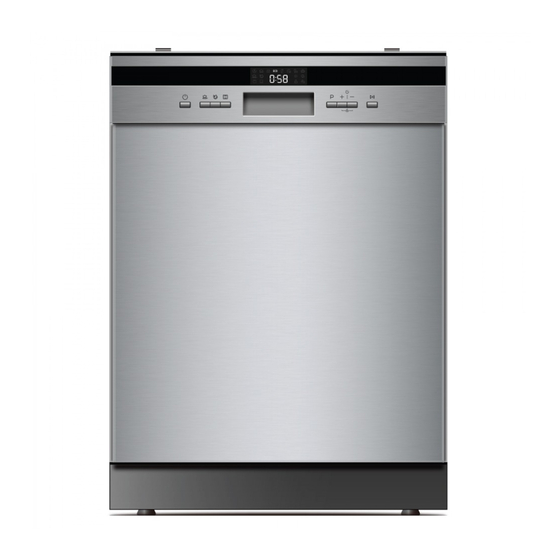

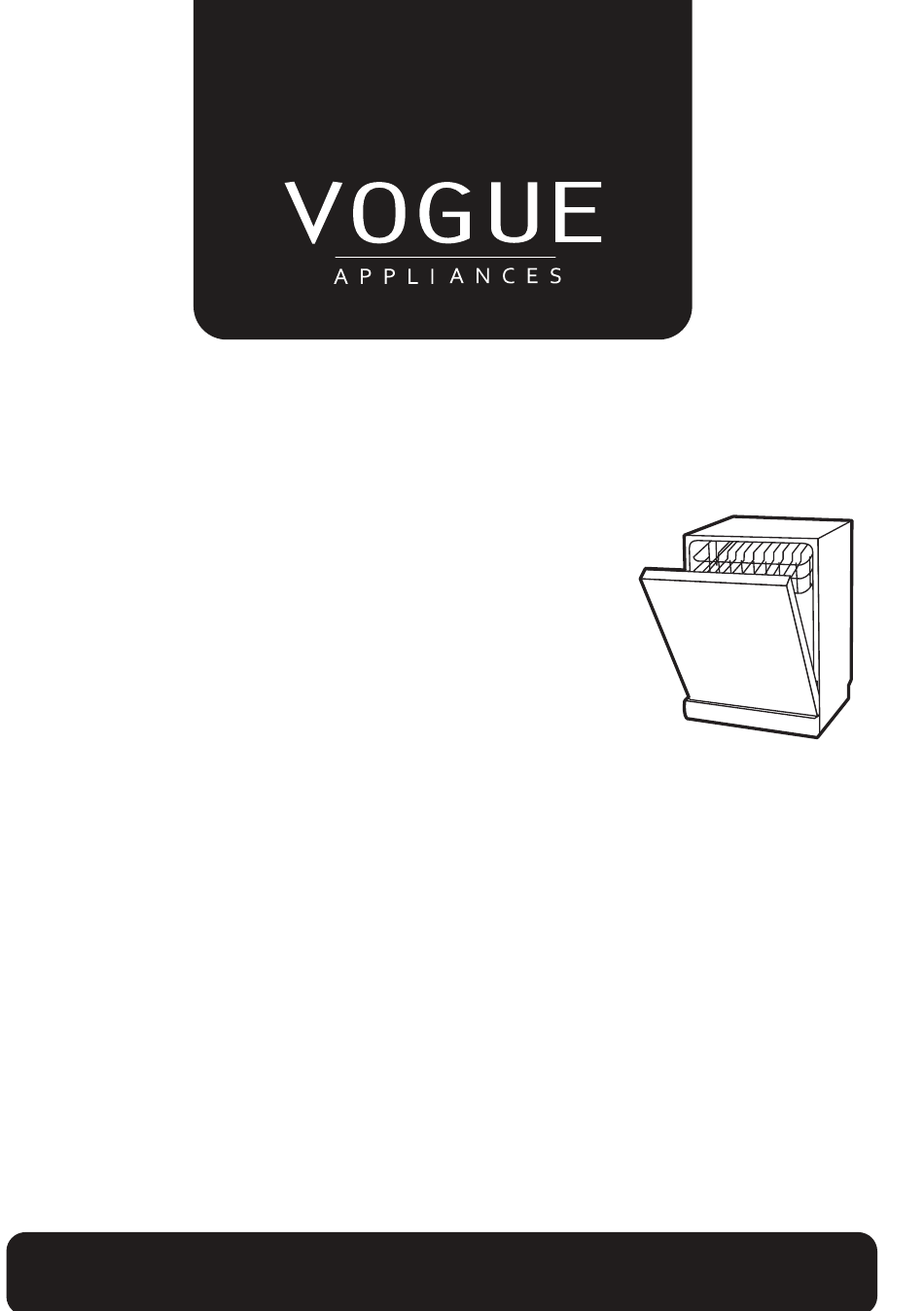

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE VOGUE 15 Place Dishwasher Stainless Steel 340530 To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the f irst time...
-
Page 2: Table Of Contents
CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION... - Page 3 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 4: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel 6 7 6 Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Press this button to improve the cleaning efficiency. (only Auto, Extra Cleaning Intensive, Heavy, ECO, Glass and 90 min have this function) When pressing this button, corresponding indicator will be lit. - Page 5 Press the button to add or decrease the delay time, maximum Delay -/+ 6 6 6 24 hours delay can be defined. This option allows you to lock the buttons on the control panel - except the Power button - so children cannot accidently start the dishwasher by pressing the buttons on the panel.
- Page 6 Display Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low Warning on dishwasher rinse aid and requires a refill. indicator Water Faucet If the “ ” indicator is lit, it means the water faucet closed. Upper Faucet If only the “...
-
Page 7: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... - Page 8 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another.
- Page 9 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 10: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 11: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator Remove the rinse aid reservoir cap Pour the rinse aid into the dispenser, by rotating it counterclockwise. being careful not to overfill. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 12: Filling The Detergent Dispenser
Filling The Detergent Dispenser Open the detergent dispenser flap by pushing the detergent dispenser release catch. Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. -
Page 13: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Energy Water... -
Page 14: Starting A Cycle Wash
Description Energy Water Running Detergent Rinse Program Of Cycle (Kwh) Time(min) Pre/Main Wash(45℃) Rinse(55℃) 12.5 Rapid Rinse(55℃) Prewash 0.02 Soak NOTE: *AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with *AS/NZS 2007.1. Starting A Cycle Wash 1. -
Page 15: Forget To Add A Dish
1. Press the Start/Pause button to pause the washing. 2. Press program button for more than 3 seconds - the program will cancel. 3. Press the program button to select the desired program. 4. Press the Start/Pause button, after 10 seconds, the dishwasher will start. 3 sec Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. -
Page 16: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. Not reaching required Malfunction of heating element. -
Page 17: Technical Information
TECHNICAL INFORMATION Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) - Page 18 Product fiche Manufacturer Vogue Type / Description 340530 Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.641kWh Water consumption of the standard cleaning cycle 11.8 liter Power consumption of off-mode 0.45 W...
