Right Side

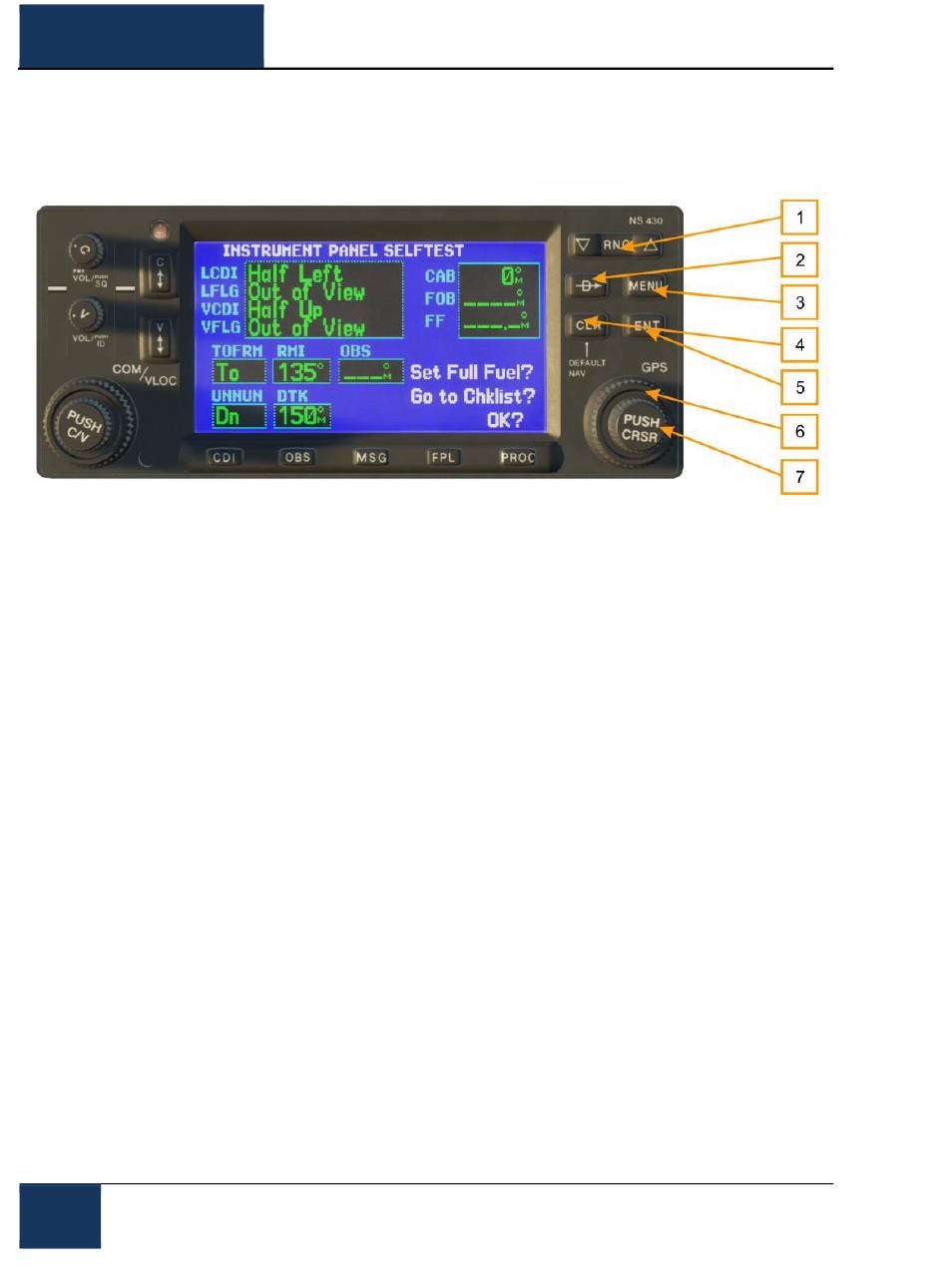

Figure 2: Right side controls
1. Range (RNG)
2. Direct
3. Menu (MENU)
4. Clear (CLR)
The range (RNG) button allows the user to change the map scale. Press the upwards arrow in order
to zoom out, and the downwards arrow to zoom in. The direct-to button allows the user to enter a
destination waypoint, and shows a direct course to the chosen location. The menu (MENU) button
brings up a context-sensitive list of options which allows the user to set or make changes to certain
parameters and access additional functions. The clear (CLR) button is used to delete information or
clear set options. Press and hold the button to immediately bring up the NAVDef screen. The enter
(ENT) button is used to confirm an operation or enter data. It is also used to confirm information upon
startup. The large right knob is used to choose between page groups (NAV, WPT, AUX, NRST.) It is
also used to control the on-screen cursor. The small right knob is used to choose between pages
under the selected page group (listed above.) Press this knob to bring up the on-screen cursor. The
cursor allows the user to enter data and/or make selections a list of options.
8
BELSIMTEK
DCS [NS 430]
5. Enter (ENT)
6. Large right knob
7. Small right knob
