Summary of Contents for HomeDefender HD-G005

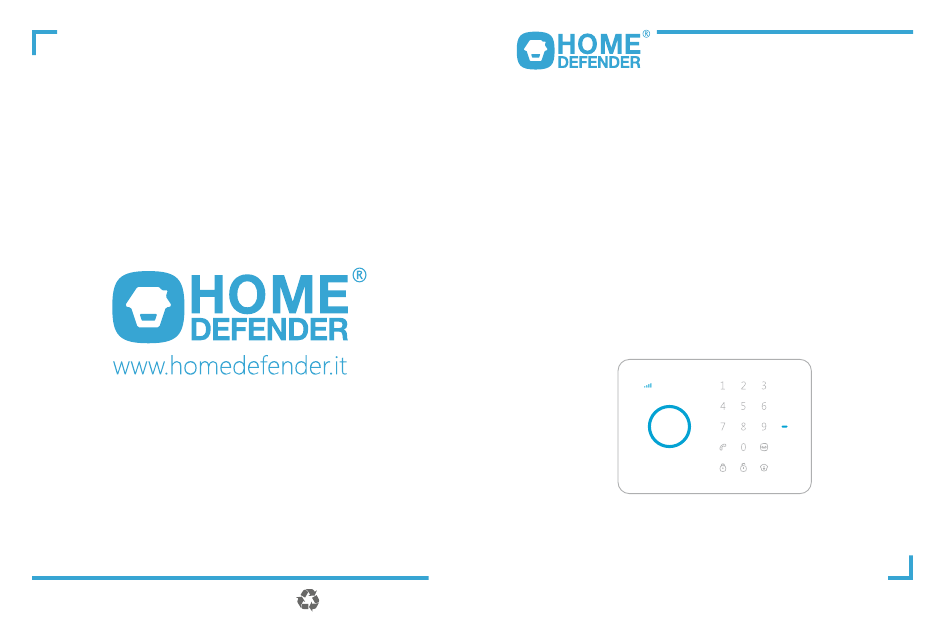

- Page 1 SECURITY KIT GSM PROTECT YOUR HOME INSTALLATION AND USER MANUAL HD-G005 GSM - SMS - RFID - TOUCH Wireless Security Alarm System Printed in Hong Kong PA: HD-G5/EN-Aug.2012-V1.1...
- Page 2 HomeDefender intruder’s alarm is a secure and efficient Content of Package: wireless alarm system protecting persons and property promptly indicating any attempt of intrusions by means of Control panel complete with audible and visual alarms and with telephone calls and SMS internal siren, GSM dialer, RFID messages.
- Page 3 Alarm System Positioning plan Characteristics In order to ensure an efficient and secure protection of the installation place (home or office) all weak points need to be carefully identified. • ARM + Auror CPU Every sensor identifies an individual zone and is recognised sequen- •...
- Page 4 DOMESTIC SECURITY function can be armed by configuring the smoke, water and gas detectors and arming perimetric sensors installed in zones not subject to access (H24 Mode: it always arms HD-G005 is a domestic security system with GSM dialer that provides regardless of the system status).
-
Page 5: Control Panel: Front
Control Panel: Back Control Panel: Front GSM Signal Indicator Tamper Switch Search GSM signal: flashes every second Normal GSM signal: flashes every 2 seconds Speaker Status Indicator Touch Panel Microphone Back up batteries SIM card slot 2 Inputs for wired sensors Output for Electronic lock Output for wired siren ≤... -
Page 6: Control Panel Functions
Record / Play Voice Memo Control Panel: functions The system enables a 10 seconds voice message to be recorded for family members and/or colleagues. The message can also be recorded remotely by sending an SMS. Using the control panel proceed as follows: Touch to the 10 second voice message. -
Page 7: Speed Dial
RFID tags Speed Dial A specific telephone number can be recorded for Speed Dials RFID is a technology that enables objects to be identified by means of (SMS “8” Command - page 18). radio frequencies (Radio Frequency IDentification). Touch to Speed Dial. The LED lights on. It consists of a read/write system and devices that contain the To end the phone call touch again. -
Page 8: Sms Operation
SMS Operation Send: The advanced functions of the system must be programmed by means of SMS communications. Make sure you have credit left and that the system has been unblocked with the PIN code before inserting the SIM card into the slot located on the back of the control panel. - Page 9 SMS Command “0”: Disarm SMS Command “1”: Arm The “0” command disarms the alarm system. The “1” command arms the alarm system. The protected levels can now be accessed. All the sensors are armed. All the sensors are disarmed except for the sensors programmed in Send: H24 Mode that will always stay armed.
- Page 10 SMS Command “3”: Remote Monitoring SMS Command “00”: Setting Inquiry The “00” command asks the system to summarise the programmed The “3” command activate the call back function. settings and the current status. The control panel calls back the number from where the command In reply, as well as the system status (disarm, arm, arm home mode), came from.
- Page 11 SMS Command “6”: Store Alarm SMS No. SMS Command “5”: Store Alarm Phone No. The “6” command displays and records the 5 reference telephone for The “5” command displays and records the 5 reference telephone the emergency SMS’s. numbers for managing the system and for the emergency calls. Send: Send: N.B.:...
- Page 12 SMS Command “8”: Store Speed Dial Phone No. SMS Command “7”: Store SMS No. for RFID Tags The “8” command stores the telephone number to speed dial call The “7” command stores the telephone number to send an SMS every from the control panel (Speed Dial–...
- Page 13 SMS Command “91~99”: Change Zone Name Send: 92 The “9” command changes the names of the first 9 zones recognised by the first 9 detectors installed in sequential order (e.g. detector 1 = zone 1, detector 2 = zone 2, etc.) Each line of the message can contain a maximum of 30 characters (limit imposed by the SMS messages).
- Page 14 SMS Command “11”: Entry and Exit Delay Time SMS Command “10”: RFID Tags SMS Notice The “10” command enables the names of the users to be assigned to The “11” command enables the delay time to be set in seconds in all the first 4 RFID tags, so that the system administrator is informed by the zones for arming and disarming the alarm.
- Page 15 SMS Command “13”: Disarm Password SMS Command “12”: Siren Volume/Ringing Time The “12” command enables the volume of the internal siren to be The “13” command enables the password to be modified as needed adjusted as well as the time of the reproduction cycle. to disarm the alarm system from the keyboard of the control panel.
- Page 16 SMS Command “21”: Delete Sensors SMS Command “14”: Single Zone Delay Time The “14” command enables the delay time to be set in seconds for The “21” command enables all the wireless accessories connected to arming and disarming the alarm only on the detectors suitably the control panel to be deleted.
- Page 17 Arm and Disarm with Phone Call Wireless Pairing Procedure WIRELESS ACCESSORIES: the alarm system kit includes 1 magnetic door/window sensor and 1 PIR movement sensor already connected Call the number of the control panel and hang up when you hear it to the control panel and configured as follows: ringing.
-
Page 18: Technical Specification
(not included in the kit). GSM/SMS/RFID Touch Alarm System Kit Model: Unlike the pairing procedures for the wireless accessories to the HD-G005 control panel, the external siren follows another one. Control Panel Power Supply: Input: AC 110-240V/50-60Hz... -
Page 19: Home Mode
Remote Control HD-RC80 Disarm LED Indicator Disarm Home Mode Emergengy Press the Disarm Key on the Remote Control to Disarm the System. The Control Panel will beep twice and the LED light will turn off. After an intrusion had been detected, press the key to disarm the system and switch off the siren. - Page 20 Arm / Disarm in Silence Setting Zone Mode Every sensor can be set in such a way that it can respond to the type of anti-intrusion required mode. To do this it is necessary to set the jumpers located close to the battery on each sensor.
-
Page 21: Installation
Door / Window Sensor HD-W100 Installation The door / window magnetic contact can be mounted on doors, • Remove the battery protection strip. windows and anything else that opens and closes. • Position the transmitter on the door frame and the magnet on the It consists of a central unit, transmitter with magnetic switch, and a door. - Page 22 PIR Motion Sensor HD-P900 Battery Primo Utilizzo: Open the case and remove HD-P900 motion sensor is a sophisticated passive infra-red ray instru- Infrared Sensor the battery protection strip ment (P.I.R.). to activate the sensor. It consist of digital dual-cor digital fuzzy logic infrared control chip The automatic test procedure Zone Mode and intelligent analisys which effectively identify interference signal...
- Page 23 Installation Operative Range Thanks to the wide angle of volumetric coverage and the orientation system, the motion sensor can easily be installed: • within closed environments; • within trepassing points; • at right angles to any movement. View from above Side View Side View Note:...
-
Page 24: Personal Memo
The EU marking on the product and/or on the packaging and/or on any use notices that accompany the product itself “indicate presumption of compliance with the Directives” referred to above. HomeDefender keeps its own Technical Archive containing the documentation that shows that the product has been examined to establish its compliance.
