Summary of Contents for Freetalker RD-018

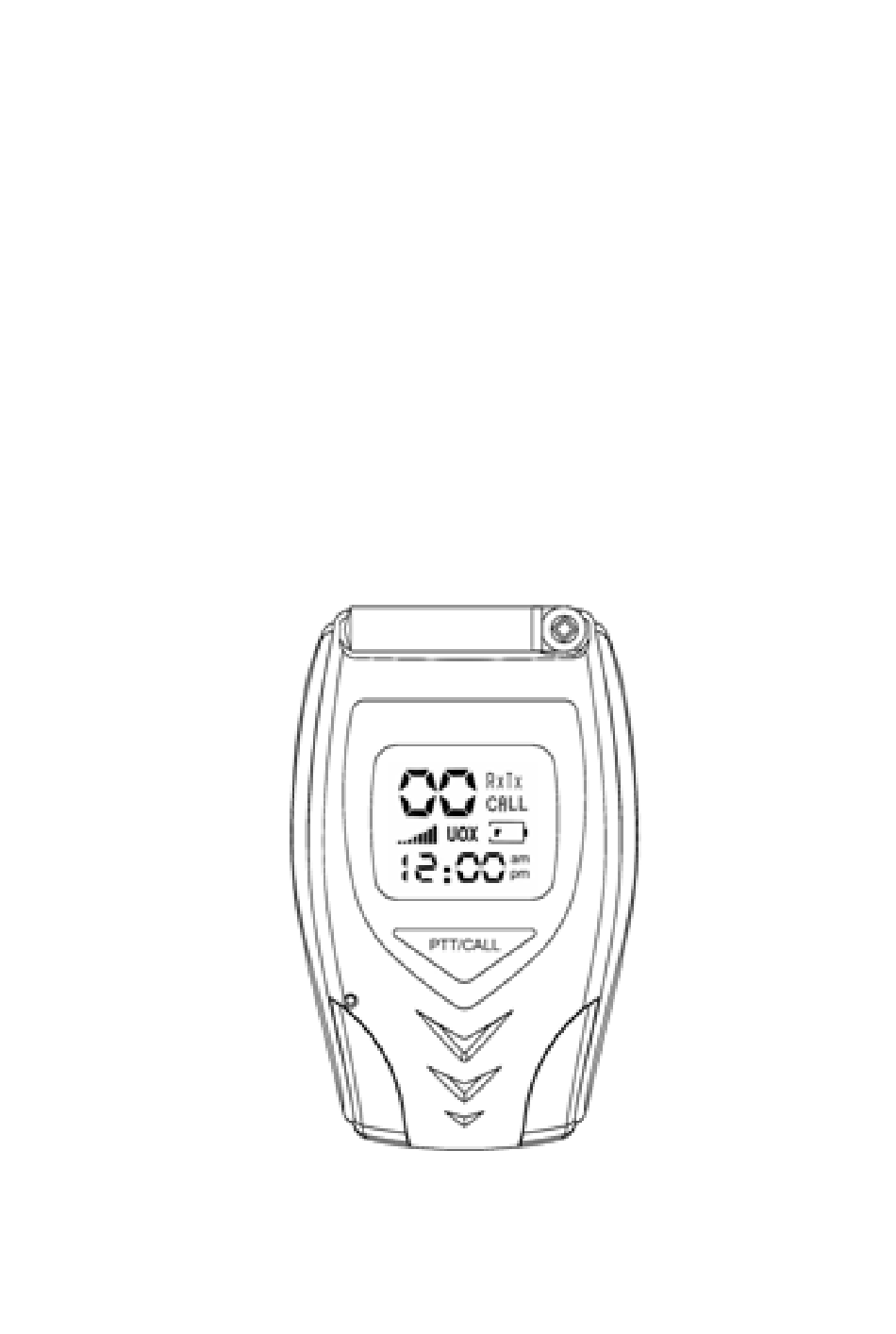

- Page 1 Freetalker RD-018 Manual...
- Page 2 CONGRATULATIONS! This communicator is the newest generation in personal two-way communications, It’s a lightweight, compact two-way communication device that can be used to stay connected with family or friends at parks, shopping malls, sporting events, concerts-virtually any indoor or outdoor activity. Here are some of the communicators excellent features: ·Wrist Watch Style with Adjustable Band ·Multi Channels(Channels depend on different countries)
-
Page 3: To Be Safe And Sure
BUTTONS and CONTROLS 9.Power/Menu (Multi Function)-Press and hold to Turn unit ON/OFF. A quick, single press accesses the Menu and Watch setting. 10.Red Button (Multi Function) – Press and hold to transmit voice communication. Press twice in a rapid action to transmit call tone. 11.Up-Adjusts volume level (default), and makes channel and watch adjustments in Menu mode. - Page 4 Battery Compartment Battery Cover Latch Compartment Cover CAUTION: To reduce the risk of personal injury, use only the battery listed in the instruction book. The communicator has a built in Power Saver feature for maximum battery life. When the communicator is not being used, conserve battery power by pressing the Power Key to turn OFF the unit , Remove the battery if the unit will not be used for a long period of time.
- Page 5 NOTE: The communicator comes with internal battery protection however, during long-term storage, it is strongly recommended that you recharge the battery every 6 months or remove the battery if the unit will not be used for a long period of tim Battery Level and Low Battery Operation In Watch and Communicator Mode the Low Battery Level icon will not appear on the display unless the unit detects that the battery is low.
- Page 6 Menu Key Watch Mode Communicator Mode Mode Communicator Channel 1-22 38 Group CTCSS Hours(Watch) Minutes(Watch) NOTE: In Watch Mode, no button/key will function unless pressing menu key for about 3 seconds to enter Communicator Mode. To set the Time Your Communicator has a 12-hour (AM/PM) Time Clock, which can be set as follows: 1.In Communicator mode, enter to Menu mode by pressing the Menu key repeatly unitil a short key-beep tone is heard.
-
Page 7: Ctcss Code
Minutes segment is flashing, A short keybeep tone will be generated. 4. Press the Up or Down key to increase or decrease the Minutes number displayed, A short keybeep tone is generated at each key press. To engage auto-repeat, press and hold the Up or Down key. 5.Exit the Menu mode to return to Communicator Mode, by pressing the Menu key briefly or the unit will automatically time out of Menu mode and enter Communicator Mode about 10 seconds after the last key is... - Page 8 3.When you are finished speaking, release the Red Button. You are now ready to receive incoming transmissions. While receiving transmission, the R X icon appears on the display. Sending a Call Alert Tone To send a Call Alert Tone, Press the Red Button twice in a rapid action. The Call Alert Tone will be automatically transmitted for a factory-set fixed length of time.
- Page 9 battery life. If it senses no transmission within 5 seconds, it automatically switches to power save mode. The communicator can still receive transmission in this mode. The Backlit Display Feature Your unit’s LCD backlight display automatically lights up for 5 seconds with the press of any key.
-
Page 10: Care And Safety
Hazardous Environments: Do not operate the communicator in hazardous environments , explosion or fire may result. Do not operate the communicator near unshielded electrical blasting caps. Under certain conditions, communicators can interfere with blasting operations and may cause an explosion. Turn your communicator to the OFF position to prevent accidental transmission when in a blasting area or in areas posted :“Turn off two-way radios.”... -
Page 11: Specifications
SPECIFICATIONS Power Source 3.7V Lithium-Ion Battery Output Power (TX) 0.3W ERP maximum Battery Life Varies per user Range About 1.5 Miles Channel and Frequency (MHz) Chart** USA(22ch) Ch. Frequency Frequency Frequency Frequency 462.5625 462.7125 467.6875 462.6500 462.5875 467.5625 467.7125 462.6750 462.6125 467.5875 462.5500... - Page 12 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
