Summary of Contents for Sercomm UE Tester

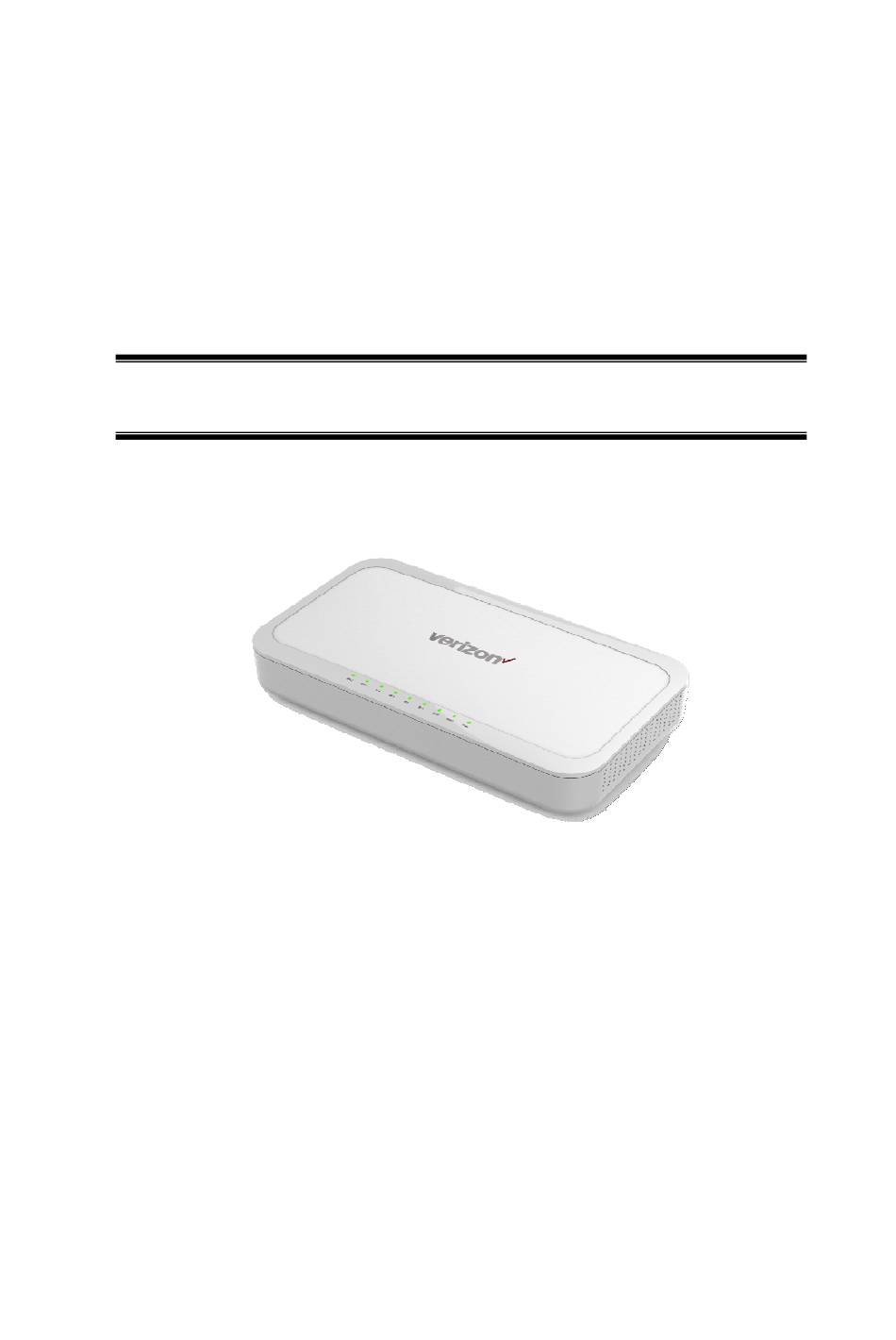

- Page 1 Verizon LTE UE Tester Model: INTTP202134134 Quick Installation Guide Manufacture By: Sercomm Corporation 8F, No. 3-1, YuanQu Street, Nankang, Taipei 115, Taiwan, R.O.C.
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ..................... 1 Package Contents ......................1 Key Feature ........................1 LEDs ........................... 2 Rear Panel .......................... 3 CHAPTER 2 INITIAL INSTALLATION ................4 Procedure ........................... 4 CHAPTER 3 SPECIFICATIONS ................... -
Page 5: Chapter 1 Introduction
Introduction This Chapter provides an overview of the device's features and capabilities. The LTE INTTP202134134 series UE Tester is a Desktop Small Cell LTE Device Tester handles multiple scenarios, running different protocols simultaneously, and provides a com- plete, independent solution. -
Page 6: Leds
LEDs Top-mounted LED POWER (Red) On - Power On/Normal Operation Off - Power off WAN1 (Red/Green) On Green - CPU1 LAN active On Red - CPU1 LAN inactive WAN2 (Red/Green) On Green – CPU2 LAN active On Red – CPU2 LAN inactive RF1 (Red/Green) On Green –... -
Page 7: Rear Panel
Rear Panel Power Input: 12 Vdc, 9A, Power Jack to Power Adaptor Reset 1 This button is used to reset or restore to factory default for CPU1 Reset 2 This button is used to reset or restore to factory default for CPU1 Ethernet Use standard LAN cable (RJ45 connectors) to connect to backhaul /broadband router... -
Page 8: Chapter 2 Initial Installation
Connect the supplied power adapter to the UE Tester. Use only the power adapter pro- vided. Using a different one may cause hardware damage. 3. Connect LAN Cable Use a standard LAN cable to connect the device to the Ethernet port on the UE Tester and to LAN/PC 4. Check the LEDs The Power LED should be ON. -
Page 9: Chapter 3 Specifications
Chapter 3 Specifications General Specification Connectivity 10x SMA RF connector for External Antennas Four Gigabit Ethernet LAN ports Power Supply External Power Adapter: Input: AC100 ～ 240V~1.6A, 50Hz/60Hz, Altitude 0 to 5000 Meters Output: 12 Vdc, 9A Operating Requirement Operating Temp. 0ºC to 40ºC Storage Temp. -
Page 10: Regulatory Requirements
Regulatory Requirements 類別 Area Standard Note FCC Part 15B FCC Part 24E/27/22H/27F/PAG FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Safety Information
Safety Information All instructions, warning and caution statements that accompany this equipment must be strictly followed at all times to ensure its safe use. Observe all warning and caution symbols that are fixed to this equipment. This electrical equipment is designed with the utmost care for the safety of those who install and use it. - Page 12 At least one other trained person must be in attendance, who can immediately and safely disconnect the system if necessary. This second person must be trained in first aid for emergency purposes Some parts of all electrical installations are energized. Failure to follow safe work Practices and the safety warnings may lead to bodily injury and property damage.
-
Page 13: Device Surface Cleaning
Always unplug/disconnect power before apply any cleaning to 13245 UE Tester. Warning Do not submerse the 13245 UE Tester or its accessories in water or allow water to enter into the case; this may lead to electrical shock and/or damage... -
Page 14: Accessories
Accessories Item Description 919902120PH AC/DC Adapter (without power core) AC100 ～ 240V~1.6A, 50Hz/60Hz auto switching, 12 V DC, 9A 3-Pin Power Supply Cord US, with grounding conduc- 459000B0IS External Antenna 617202CPWY...
