HangZhou RuiDeng Technologies Co., Ltd
Contents

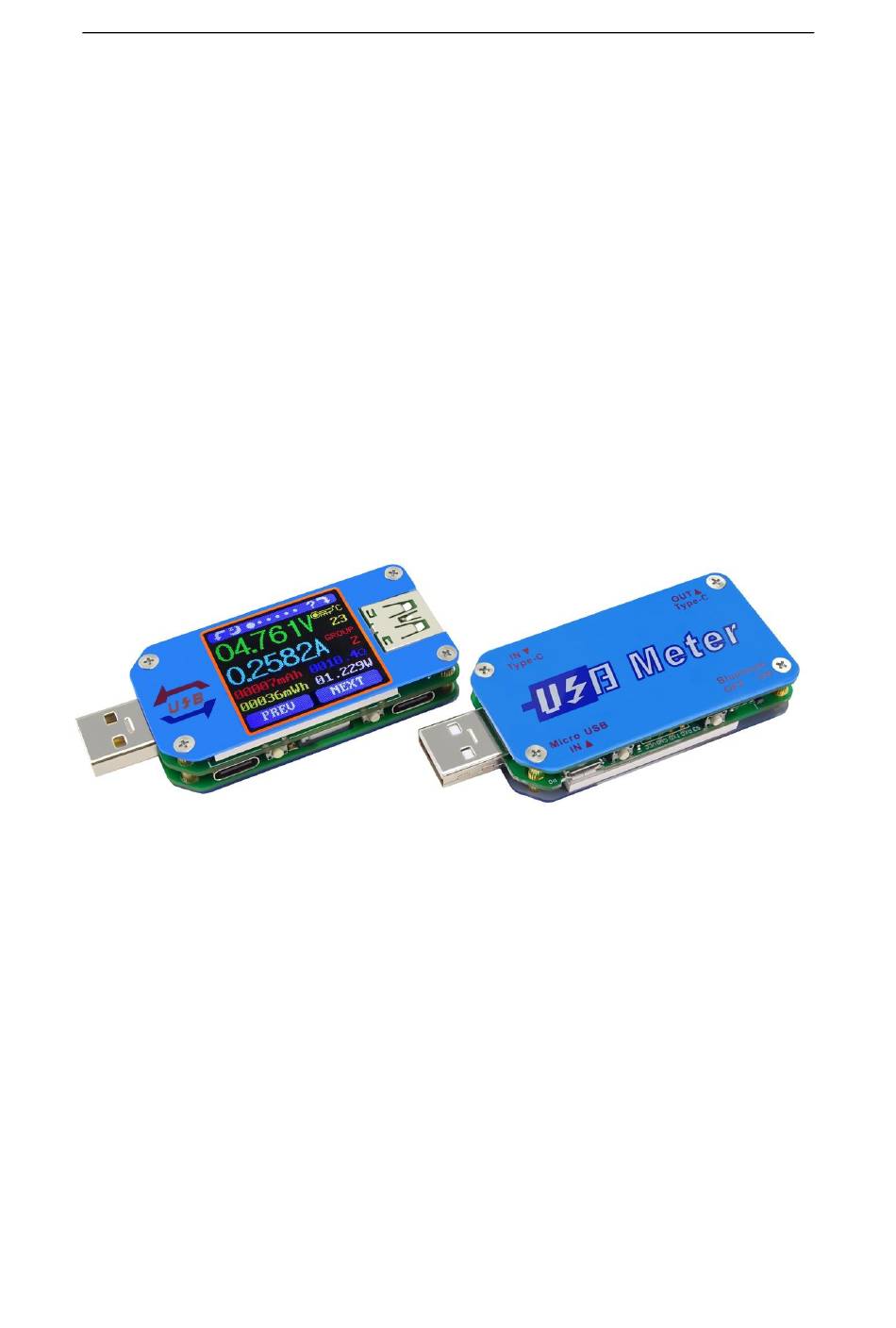

Instructions for USB Tester with Full Colour Display
The PC Control Software Installation Instruction ............................................................... 7-18
UM25C Android APP Instruction ...................................................................................... 19-22
Instructions for USB Tester with Full Colour Display
Dear Customer,
Thank you for purchasing this Full Colour USB Tester from Hangzhou Ruideng Technologies Co.,
Ltd. Prior to using this product we recommended that you briefly familiarize yourself with these
instructions. In order to ensure the correct operation and use of the device. We also advise that
you keep these instructions in a safe place for future reference as may be needed.
Technical Parameters:
Model: UM25/UM25C
Voltage measurement range:4-24.000V
Current measurement range: 0-5.0000A
Capacity accumulation range: 0-99999mAh
Energy accumulation range:0-99999mWh
Load impedance range: 0.8Ω-9999.9Ω
Temperature range:-10℃~100℃/0℉~200℉
Screen brightness setting: Levels 0-5
Voltage graphing range: 4-24.00V
Product weight:23.74g(UM25C)/19.26g (UM25)
(No packaging)；54.56g(UM25C)/50.08g (UM25)( With packaging)
Dimensions：71.2mmx30.5mmx12.4mm(UM25C)/71.2mmx30.5mmx11.3mm(UM25)
Quick charge recognition mode： QC2.0、 QC3.0、 APPLE 2.4A/2.1A/ 1A/0.5A、 Android DCP、 SAMSUNG
Function Interfaces
.................................................... 1-6
Display screen：1.44
Voltage measurement resolution:0.001V
Current measurement resolution: 0.0001A
Voltage measurement accuracy:± （0.5‰+2digits）
Current measurement accuracy:± （1‰ +4 digits）
Time measurement range:0-99h59min59s
Temperature measurement error:± 3℃/ ± 6℉
Delay off the screen time：0-9minutes
Current graphing range:0-5.000A
Refresh rate: 2Hz
- 1 -
-Model: UM25/UM25C
Inch color LCD display
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RuiDeng UM25
Summary of Contents for RuiDeng UM25
- Page 1 -Model: UM25/UM25C Dear Customer, Thank you for purchasing this Full Colour USB Tester from Hangzhou Ruideng Technologies Co., Ltd. Prior to using this product we recommended that you briefly familiarize yourself with these instructions. In order to ensure the correct operation and use of the device. We also advise that you keep these instructions in a safe place for future reference as may be needed.
- Page 2 HangZhou RuiDeng Technologies Co., Ltd Measurement Main Quick Charge Recognition Charging Recording Interface Interface Interface Data Connection Cable Measurement Graphing System Parameter Setting Impedance Measurement Interface Interface Interface The Core Function: PC Bluetooth Communication Android Phone APP Control Quick Charge Recognition...
- Page 3 HangZhou RuiDeng Technologies Co., Ltd B：Multifunction buttons (4) C：Bluetooth Switch D：USB A Female Port E：USB A Male Port F：Type-C Input Port (Only VBUS、GND、CC1、CC2 four wires) G：1.44 Inch Color Screen H：Type-C Output Port (Only VBUS、GND、CC1、CC2 four wires) I：Bluetooth Indicator: When connected to the host computer control software, the Bluetooth indicator changes from flashing to steady state.
- Page 4 HangZhou RuiDeng Technologies Co., Ltd With Data Groups 1-9 selected the current mAh and mWh are saved after power off. They will continue accumulating the next time the tester is powered on. When the data group selected is 0 then the current value of mAh and mWh will be temporarily saved at power off.
- Page 5 HangZhou RuiDeng Technologies Co., Ltd differential voltage method to measure the resistance of a data connection cable 23：USB Tester directly connected to the power supply with Voltage and Current values displayed 24：USB Tester connected via a data connection cable with Voltage and Current values displayed.
- Page 6 HangZhou RuiDeng Technologies Co., Ltd to enter into setting state, press “NEXT” button to step through the options of auto screen off theme background color and theme foreground time, brightness level, temperature display units, color . Stop on the value you wish to change then press the "PREV" button to change the setting.
- Page 7 HangZhou RuiDeng Technologies Co., Ltd The PC Control Software Installation Instruction -mode: UM25C Note: This product only supports Windows 7 and above. 1 Unzip the installation package Note: Before unzip the installation package , please install the font package “Arial Unicode MS”.
- Page 8 HangZhou RuiDeng Technologies Co., Ltd - 8 -...
- Page 9 HangZhou RuiDeng Technologies Co., Ltd 3 Bluetooth connection 3.1 open the bluetooth switch on the UM25C. 3.2 Use the compute to search bluetooth device. - 9 -...
- Page 10 HangZhou RuiDeng Technologies Co., Ltd - 10 -...
- Page 11 HangZhou RuiDeng Technologies Co., Ltd 3.3 View bluetooth setting Select the device connected with bluetooth, view the bluetooth series port COM what PC was using. Efferent direction COM (UM25C’Port’) is bluetooth connection port. (note: at win7 system, select bluetooth device, right-click to view properties, display the following widows, view COM port of bluetooth setting, select efferent direction series port to connect.
- Page 12 HangZhou RuiDeng Technologies Co., Ltd 3.4 Connect bluetooth: - 12 -...
- Page 13 HangZhou RuiDeng Technologies Co., Ltd 3.5 When the Bluetooth indicator changes from blinking to static, click “Connect” 4. Function Introduction 4.1 Program interface overview: - 13 -...
- Page 14 HangZhou RuiDeng Technologies Co., Ltd 1: Basic functions: Previous page, Next pages, Rotate screen, 2: Corresponding data group: data group switch (click the corresponding number to switch directly into this data group ), data group data clear 3: Corresponding the main display interface 1: main measurement interface...
- Page 15 HangZhou RuiDeng Technologies Co., Ltd 4.2.1: Automatically adjust the X axis: - 15 -...
- Page 16 HangZhou RuiDeng Technologies Co., Ltd 4.2.2: Export data to the clipboard: Format : Reference point number on X Axis, Voltage value at that reference point. Read times - Voltage graph Voltage(V) - Voltage graph Read times - Current graph Current(A) - Current graph 0 23.998 0 0.0002...
- Page 17 HangZhou RuiDeng Technologies Co., Ltd 4.2.5: Clear chart: Note: 1. for desktop, when you use the bluetooth adapter to make bluetooth connection, Please don’t use the adapter own driver, and use the windows system bluetooth driver, otherwise the module can’t make SSP series port communication. If you have installed the adaptor driver, you can uninstall it and unplug the adaptor, then plug in again, the system will install it automatically.
- Page 18 HangZhou RuiDeng Technologies Co., Ltd 5. The exported data is only for Microsoft Office Excel. - 18 -...
- Page 19 HangZhou RuiDeng Technologies Co., Ltd UM25C Android APP Instruction 1, APP Installation: NOTE：The APP only support Android 5.0 and above UM25C Android APP download： http://www.mediafire.com/folder/q2b8h079hpywq/UM25 http://www.mediafire.com/folder/q2b8h079hpywq/UM25 1.1 APP download link : , choose UM25C android APP file to download, you can use the computer to download , then sent the phone, or use the phone download directly.
- Page 20 HangZhou RuiDeng Technologies Co., Ltd Installation APP icon as the picture 2.1 Click APP icon, the interface as the following: 1: Export data to the mobile phone folder （ phone SD card root director, repeat to - 20 -...
- Page 21 HangZhou RuiDeng Technologies Co., Ltd write, generate graph directly in the excel.） 2: Multiple language choice, click this to select language. For now there are 17 kinds language Français 日本語 한국어 ( 简体中文 繁體中文 English русский Español Deutsch हिन्दी ไทย...
- Page 22 HangZhou RuiDeng Technologies Co., Ltd Off the screen time adjustment: press and hold the slider to adjust Temperature display: Celsius/ Fahrenheit 9：Switch to next page 10：clearing key：clear current data group to zero 11：Rotation button: control USB tester display to rotate 12：Switch to previous page...
