DIY-Thermocam V2 Assembly Guide

Revision 5 from 12.09.2017

• To assemble the device, you need the following tools: A soldering iron, some

solder, a cutting pliers, a nippers, a screwdriver and a multimeter

• At the moment, the following versions of the FLIR Lepton sensor are supported:

2.0 (80x60), 2.5 (80x60 radiometric) & 3.0 (160x120)

• If you have the choice between multiple soldering tips, use the smallest one

• In case you have a soldering station with adjustable temperature, use around 400

- 450 degree celcius

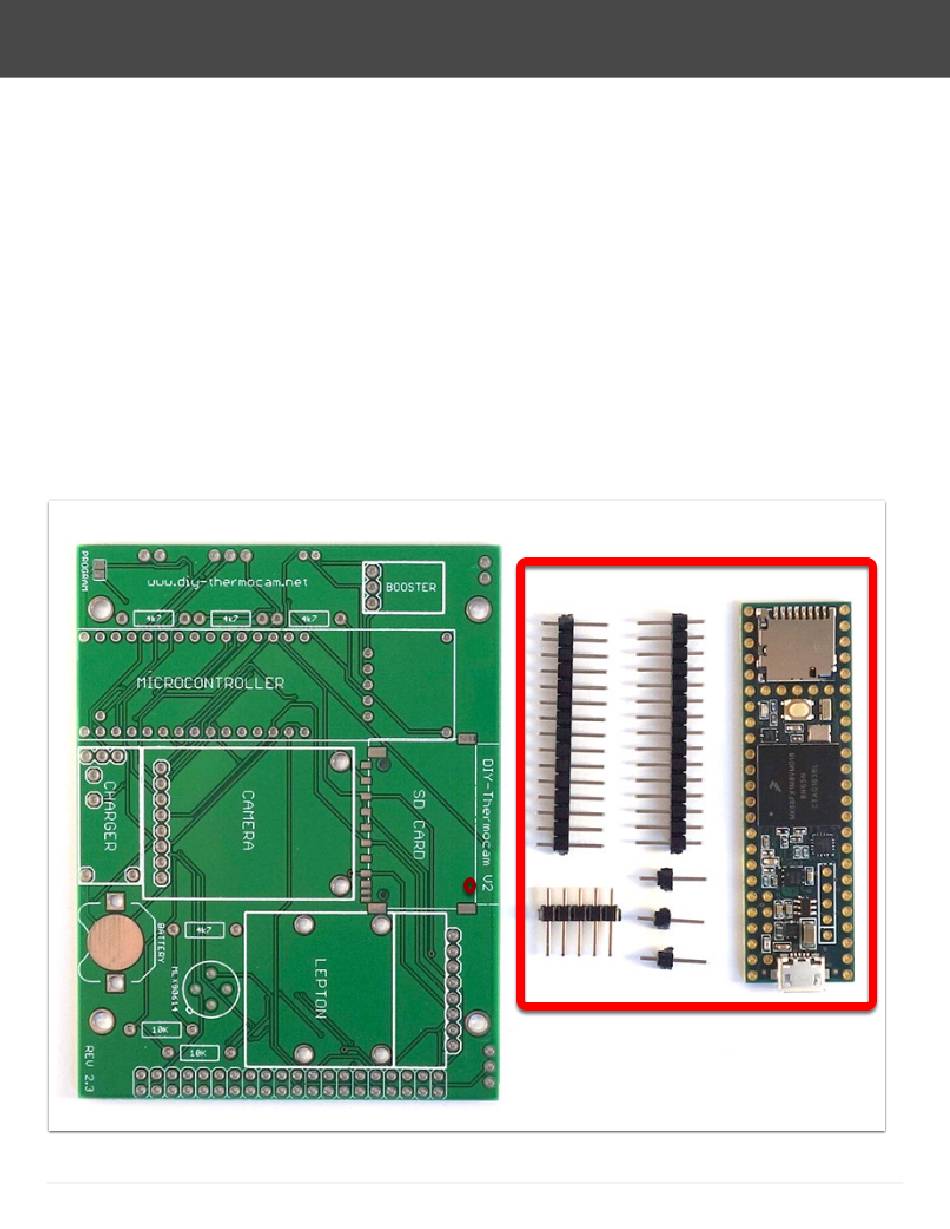

• Catch the PCB, the microcontroller and one of the two pin header strips

• Cut the header strip with a cutting pliers into the following pieces: 2 x 15, 1 x 5 and

3 x 1

DIY-Thermocam V2 Assembly Guide

Page 1
