INSTRUCTION MANUAL

EF 'External Flow' Small Size Series

Before using the SEPAREL® EF small size series, be sure to read this instruction manual

to ensure safe and proper use.

DIC will not have any liability to a customer or end user in connection with any costs and

damages arising directly or indirectly from any defective modules.

We are not responsible for any usage, installation, or any other handling done by the

customer. The module must be used, installed, and handled responsibly by the customer.

Application Materials Product Division

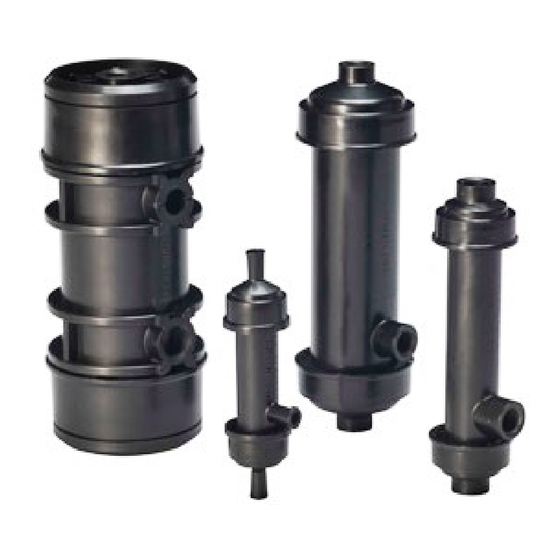

SEPAREL

Hollow Fiber Membrane Module

(For IJ)

・EF-MICRO

・EF-G2 Series

・EF-G3 Series

・EF-G5 Series

June 3, 2016

Ver. 1. 5

http://www.separel.com

Table of Contents

Need help?

Do you have a question about the EF-G2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SEPAREL EF-G2 Series

Page 1 ・EF-G3 Series ・EF-G5 Series Before using the SEPAREL® EF small size series, be sure to read this instruction manual to ensure safe and proper use. DIC will not have any liability to a customer or end user in connection with any costs and damages arising directly or indirectly from any defective modules.
Page 2 EF-MICRO, EF-G2, EF-G3, and EF-G5 series, with precautions to be followed for your safety. Before using the SEPAREL® EF small size series, be sure to read this instruction manual to ensure safe and proper use.
Page 3 INSTRUCTION MANUAL ■Warranty, Warranty Period 【Warranty】 At the time of delivery, DIC warrants that the Separel module will be free from defects in material and workmanship and meet the specifications supplied to the customer by DIC. 【 Warranty Period 】...
Page 4 Regarding Reproduction and Photocopying of this Manual ◆ Reproduction of this manual in whole or in part is strictly prohibited. ◆ The content of this manual are subject to change without notice. ◆ SEPAREL® is a registered trademark of the DIC Corporation. Application Materials Product Division...
Page 5: Table Of Contents
INSTRUCTION MANUAL Contents 1. General Precautions P. 5 Upon Receipt P. 5 Installation P. 5 Start-Up P. 9 Shutoff and Storage P. 10 Restart P. 11 7. Maintenance P. 11 Reference Data 1. Basic Principles of Degassing P.11 2. Vacuum Pressure Degree P.12 3.
Page 6: Upon Receipt
1-4. Do not feed the following liquids into SEPAREL–oxidizing agents (highly concentrated chlorine water, ozone water, etc.), strong acids, strong bases, organic solvents, alcohol, oils, or any other liquid which is not compatible with the liquid and materials that SEPAREL modules are composed of.
Page 7: Installation
● Set the vacuum port downward to smoothly purge liquid derived from vapor. ● If you fix SEPAREL with a U-band, make sure not to loosen the fitting. Do not apply too much pressure when fixing SEPAREL with a U-band as too much pressure may damage the module.
Page 8 INSTRUCTION MANUAL 3. INSTALLATION ＜Example of Installation＞ Filter Liquid Feeding Degassing Pump Module Filter Vacuum Leak Valve Meter Liquid Tank Vacuum Pump Trap The above example is for your reference. Depending on use conditions, the above example may not be suitable. ※Optimal flow direction differs by use conditions and the above flow direction is not always the correct direction.
Page 9 Liquid in phase 2) Liquid Out: ● There is a possibility that particles are generated by the SEPAREL module. To prevent a problem with such particle occurrence, install a filtration filter behind the module. The most suitable filtration size depends on your use conditions. For more details, please contact DIC.
Page 10: Start-Up
For efficient removal of remaining air in the liquid area of SEPAREL modules, filling the liquid with a vacuum is recommended. During the vacuuming process, check the airtightness of the vacuum line and not the air that is leaked from pipe, connector, and SEPAREL module.
Page 11: Shutoff And Storage
2) If the shutoff period is extensive, remove the SEPAREL modules and store after cleaning and drying completely. If it is difficult to uninstall the SEPAREL module, fill it with liquid that is compatible with SEPAREL and close all liquid and vacuum ports completely.
Page 12: Basic Principles Of Degassing
INSTRUCTION MANUAL REFERENCE DATA 1: Basic Principles of Degassing Liquid IN/OUT Image of Hollow Fiber Cross-section Sealing Resin Liquid Liquid Liquid IN/OUT Hollow Fiber Hollow Fiber Membrane Membrane Inside of Hollow Fiber for Vacuuming By vacuuming inside the hollow fiber, Sealing Resin Hollow Fibers only gas can pass through hollow fiber...
Page 13: Vacuum Pressure Degree
INSTRUCTION MANUAL REFRENCE DATA 2: Vacuum Pressure Degree ● Note that the vacuum pressure degree in our data sheet is mainly indicated by absolute pressure, not by gauge pressure. Recommended range of vacuum pressure degree (Refer to Reference Data 3) 1 atm 0.65 atm 0.35 atm...
Page 14: Setting Value Of Vacuum Pressure Degree
INSTRUCTION MANUAL REFRENCE DATA 3: Setting Value of Vacuum Pressure Degree As the vacuum pressure degree approaches a perfect vacuum, degassing performance is improved. However, if the vacuum pressure degree is too strong yet close to perfect pressure, liquid may evaporate and penetrate through the membrane.
Page 15: Range Of Liquid Flow Rate
※ The warranty will not apply in cases where liquid feeding pressure exceeds the maximum pressure value specified in the specification sheet, Product Maximum Pressure Resistance EF-MICRO 0.2 MPa (= 2 bar) EF-G2 Series 0.2 MPa (= 2 bar) EF-G3 Series 0.2 MPa (= 2 bar) EF-G5 Series 0.2 MPa (= 2 bar) Even if liquid feeding pressure is lower than the specified maximum pressure, an increased flow rate will cause lesser degassing performance.
Page 16: Inner Volume
REFERENCE DATA 5: Inner Volume Inner Volume at Liquid Part Product Approx. 4 ml EF-MICRO Approx. 11 ml EF-G2 Series Approx. 40 ml EF-G3 Series Approx. 85 ml EF-G5 Series The above values are for reference and are not guaranteed values.
Page 17 INSTRUCTION MANUAL REFERENCE DATA 6: Image of Connecting Port EF–MICRO EF–G2 Series Liquid IN/OUT Liquid IN/OUT Liquid IN/OUT Liquid IN/OUT Vacuum Port Vacuum Port EF–G3 Series EF–G5 Series Liquid IN/OUT Liquid IN/OUT Liquid IN/OUT Liquid IN/OUT Vacuum Port Vacuum Port Application Materials Product Division...
Page 18: Contacts
Membranes Sales Department Application Materials Product Division DIC Building, 7-20, Nihonbashi 3-chome, Chuo-ku, Tokyo 103-8233, Japan TEL: +81(3)6733-5944 FAX: +81(3)6733-5960 URL: http://www.separel.com ＜Worldwide Contacts Outside of Japan＞ Europe and Middle East North, Central, and South America DIC Europe GmbH DIC International (USA), LLC Address: Immermannstraße 65 D...
