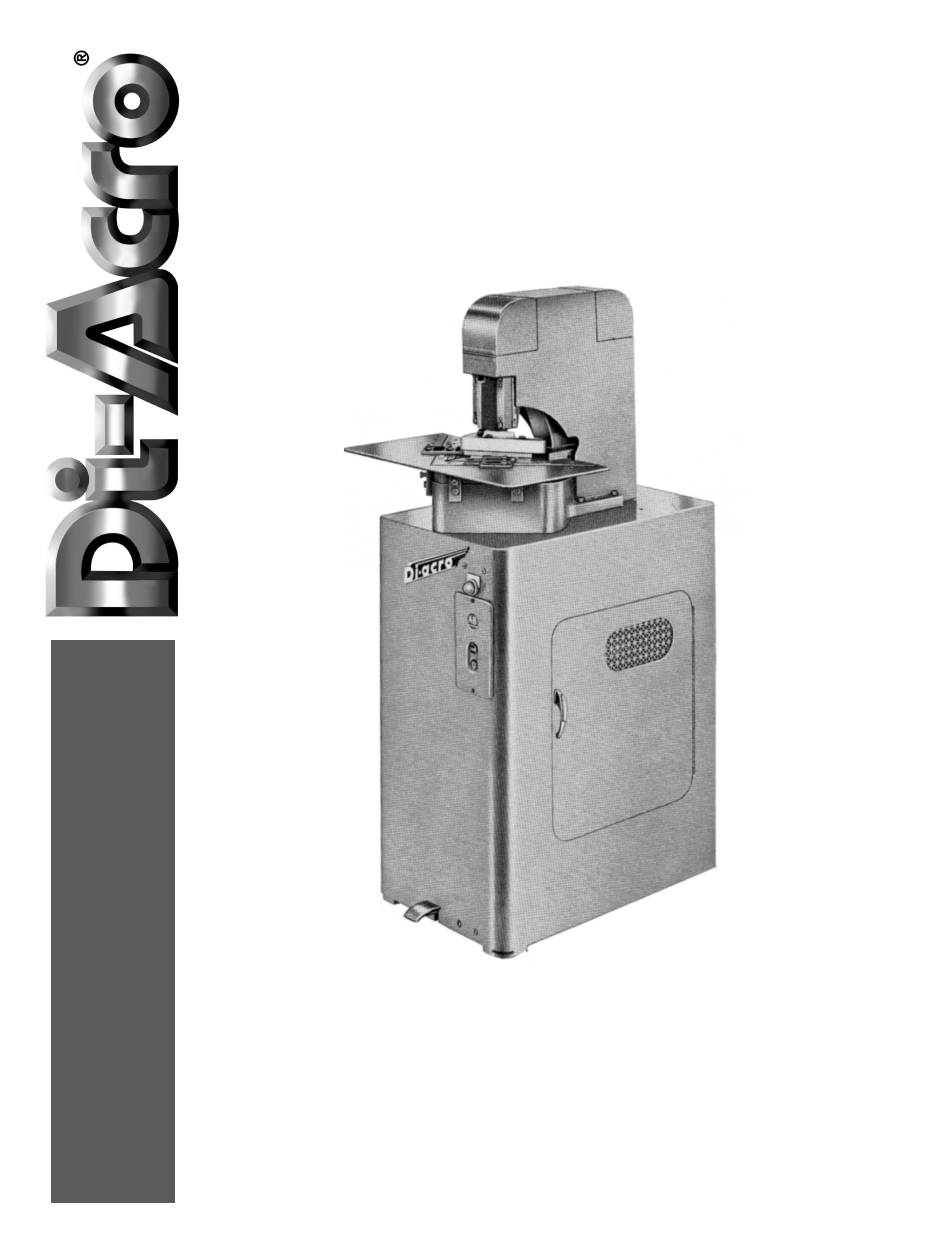

OPERATOR'S MANUAL & INSTRUCTIONS
NUMBER 2 POWER
NUMBER 2 POWER
OPERATED NOTCHER
OPERATED NOTCHER
Di-Acro, Incorporated
PO Box 9700
Canton, Ohio 44711
3713 Progress Street N. E.
Canton, Ohio 44705
330-455-1942
330-455-0220 (fax)
Revised 01/02
Sale or distribution of manuals is strictly prohibited
without the express written consent of Di-Acro, Incorporated

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Number 2 Power Operated Notcher and is the answer not in the manual?

Questions and answers

Summary of Contents for Di-Acro Number 2 Power Operated Notcher

  • Page 1 OPERATED NOTCHER OPERATED NOTCHER Di-Acro, Incorporated PO Box 9700 Canton, Ohio 44711 3713 Progress Street N. E. Canton, Ohio 44705 330-455-1942 330-455-0220 (fax) Revised 01/02 Sale or distribution of manuals is strictly prohibited without the express written consent of Di-Acro, Incorporated...
  • Page 2 Gauges for the proper size notch and machine is ready for production. Smooth, even notches can be cut in all types of ductile material with the Di-Acro Notcher. It elimi- nates the high cost of special dies required for each different notching operation and does away with time wasted in punch press setup—you simply adjust the Material Gauge and you’re ready for...
  • Page 3 SETUP SETUP A. Change size of tab (set at factory for 1/2” tab) Loosen bolts (A) holding lower blade to blade carrier (do not remove). Slide blades forward or back, holding them against shoulder machined in blade carrier to obtain desired tab. Tighten bolts (A).

  • Page 4: Maintenance

    MAINTENANCE MAINTENANCE A. Sharpening blades Blades are dual edged. A new cutting edge is obtained by changing right blade to left side and visa versa. If only a slight amount of sharpening is required, grind wide edge only, as this will eliminate neces- sity of resetting clearance.

  • Page 5: Troubleshooting

    TROUBLE SHOOTING TROUBLE SHOOTING Problem: Double tripping, or not stopping at end of single cycle. Cause: Brake too loose, causing dog to coast on by release lever. Remedy: Tighten brake adjustment. Cause: Brake too tight, or ram binding, causing release lever to slip by instead of pulling clutch dog.
  • Page 6 HEAD ASSEBLY 32 33 35, 36, 37, 38 20, 21 43, 42 16, 17 44, 43 10, 11 49, 51 3, 4...

  • Page 7: Head Assembly

    HEAD ASSEMBLY ITEM DESCRIPTION PART NUMBER T-NUT 8905350-000 BLADE CARRIER 8031110-101 HEX HEAD CAP SCREW 21A0308C1102 FLAT WASHER 61X0308C1332 RULE 8031160-101 FLAT HEAD SOCKET CAP SCREW 20C0104F0102 TABLE 8000110-501 PROTRACTOR GAUGE 8031140-571 BINDER MACHINE SCREW 22FXX060108 FILLISTER HEAD MACH SCREW 20A0104F0508 FLAT HEAD WASHER 51X0104...

  • Page 8: Lower Assembly

    LOWER ASSEMBLY 25, 28 35, 36, 37 1, 2, 3, 4 3, 4...
  • Page 9 LOWER ASSEMBLY Item Part No. Description 035-1308003 Foot Pedal 21A0516C1104 Hex Head Cap Screw 62X0516M Lock Washer 31X0516C Jam Nut 250-1301064 Foot Pedal Link Block 035-1325033 Pedal Arm 21A0308C1104 Hex Head Cap Screw 1203135 Spring Pin 5102103 Spring 22D0104C0508 Truss Head Mach Screw 035-1301100 Pedal Bkt Wldmt 31X0308C...
  • Page 10 DRIVE GP...
  • Page 11 DRIVE GP Item Part No. Description Used 25X0516C1104 Shoulder Screw 5102101 Spring 61X0104 Flat Washer 035-1110090 Trip Mount 21A0516C1000 Hex Head Cap Screw 035-1301091 Spring Container 1203134 Spring Pin 62X0508 Lock Washer 21A0308C1000 Hex Head Cap Screw 5102102 Spring 035-1301096 Clutch Release Lever 1203105 Dowel Pin...
  • Page 12 BRAKE SHOE ASSEMBLY NOTE: CEMENT LINING 3 TO SHOE 2 WITH 3M NO. 1838 SCOTCH WELD ADHESIVE Item Used Part No. Description 31X0516C Jam Nut 270-1207055 Brake Shoe 270-1207001 Brake Lining 4701137 Hex Head Cap Screw 4701112 Hex Head Cap Screw 512110 Spring...

  • Page 13: Electric Diagram

    ELECTRIC DIAGRAM 1MRT DISC START STOP FUSES, IF ELECTRIC MOTOR FUSED 1425 RPM - 1/2 HP 1FU 2FU 3FU FRAME 56 IF FUSED 115V - 50HZ TO BE GROUNDED BY USER IF CONDITIONS PERMIT START STOP ELECTRIC MTR - 3 1T1 1T2 1T3 SEQUENCE OF OPERATION PRESS “START”...
  • Page 14 ELECTRIC DIAGRAM DISC 1MRT 115/230V 50/60 HZ Part No. Description 1MTR 3301020 Motor 3304043 Manual Starter Furnas 3304042 Manual Starter Furnas DISC 3331013 Disconnect Switch...
