SLX 28051R User Manual

28051R
Main Features
•
TV Size Range: 14 - 32"
•
Maximum Weight Capacity: 20kg
•
Mount Function: Adjustable Tilt & Swivel
•
Wall to TV Distance: 90mm
•
Compatible with VESA Sizes:
50 x 50, 75 x 75, 100 x 100, 200 x 100mm & 200 x 200mm
•
We have not supplied wall fixings with this product. All walls differ in strength
and thickness. Consult a qualified installer or seek advice from your local
DIY/hardware store on purchasing suitable wall fixings to safely mount the
bracket on the type of wall being used.
•
Check the contents list and images below to check there are no missing or
defective parts.
•
Never exceed the Maximum Weight Capacity shown above.
•
Read these instructions carefully before installation. If in any doubt about
safely installing this product, contact a professional installer for assistance.
•
This product was designed to be installed on wood stud walls and solid
concrete/brick walls. When fixing to walls screws/bolts should be fixed into
bricks/stone not into mortar courses.

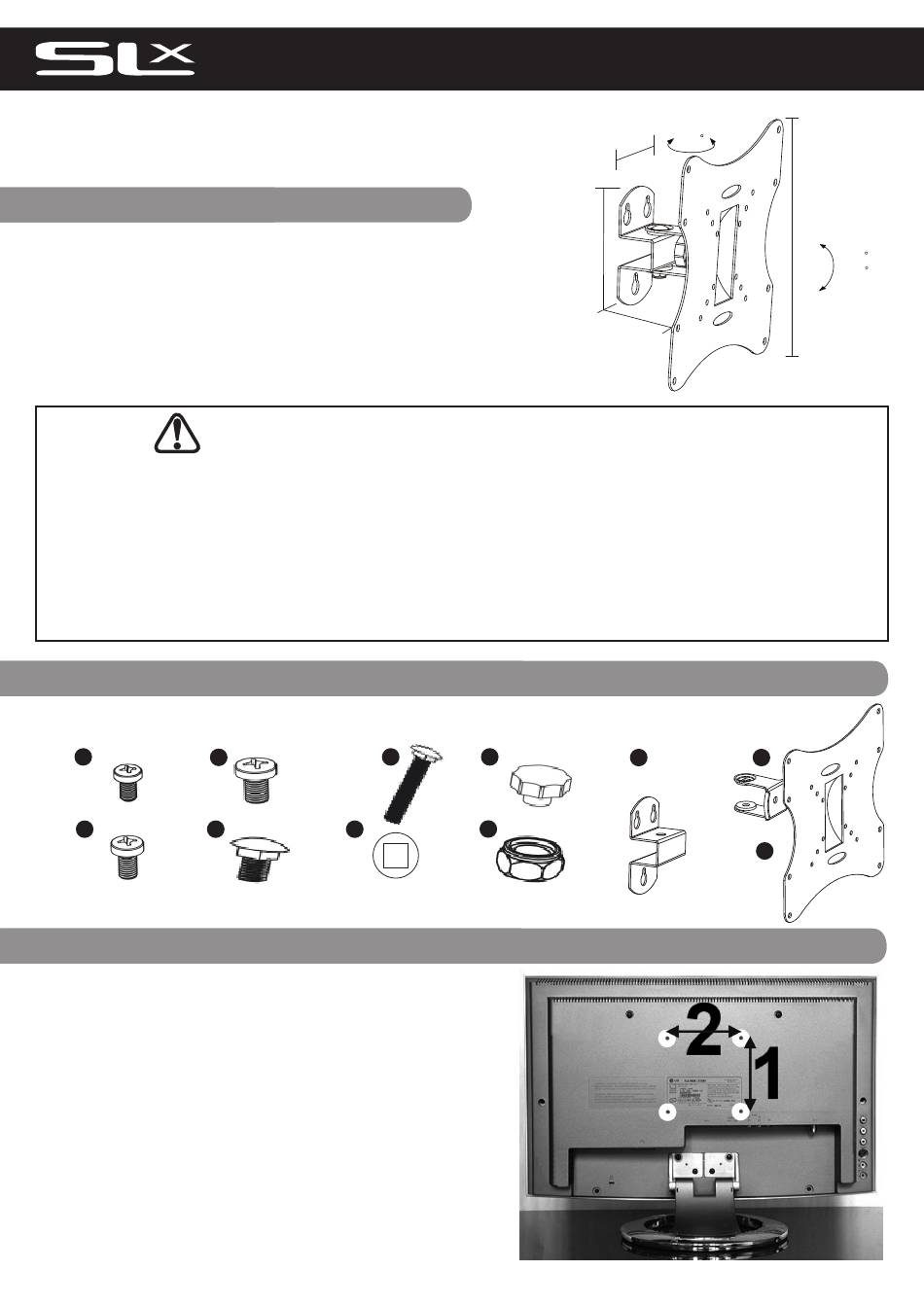

Components
Before installation check that you have all the components shown here and that
none of them are damaged.
1
M4 x 10 M6 x 10
4pcs 4pcs
2
M5 x 10 M8 x 16
4pcs 1pcs
Please Note wall fixings are not supplied with this product.
Wall Mount & VESA Compatibility
• VESA is the standard adopted by most TV manufacturers for wall
bracket mounting.
• There are 4 holes on the back of every flat screen TV and the
space between the holes is governed by the VESA standard.
• VESA comes in a range of sizes depending on the weight and size
of the flat screen TV; sizes 50 x 50mm, 75 x 75mm, 100 x 100mm,
100 x 200mm and so on... are standard. Not all flat screen TVs are
compliant, contact the TV manufacturer for assistance if your TV
does not appear to comply with VESA.
• To check if your TV or monitor is compliant, look at the rear of
the display there should be 4 screw-holes in a square pattern or
in larger displays a rectangular shape. See Fig. 1 opposite, with
VESA mounting points shown in white circles.
• Measure the distances marked (2) (horizontal) x (1) (vertical) in
mm to find your VESA format.
Flat TV Screen Wall Mount 14 - 32" - Adjustable Tilt & Swivel
USER GUIDE
WARNING
3
M8 x 45
1pc
4 6
M8 Washer
2pcs
110mm
•
Make sure the wall will support the combined load of the
equipment and hardware. Also check for hidden wiring or plumbing.
•
Make sure that the heads of the screws/bolts you buy as wall fastenings are
the correct size to hold the bracket securely in position.
•
For larger/heavier TVs we recommend that you ask someone to assist you
with lifting and positioning your TV.
•
This product is suitable for indoor use only.
•
Improper installation or use of this product can result in product failure,
damage or personal injury.
•
This product contains small items that could cause choking if swallowed, so
keep these items away from children and pets.
•
Appropriate safety equipment and proper tools must be used for installation.
Always check manufacturer's operating and safety instructions before using
tools and other equipment
5 7
Tilt/Clamp
Knob
1pc
8
M8 Nut
1pc
Fig. 1
65mm
60
90mm
Swivel/Tilt
9 10
Clamp
Wall Bracket
1pc
1pc
11
TV Mounting
Plate
1pc
220mm
+20
-20
