Summary of Contents for Tykma Minilase

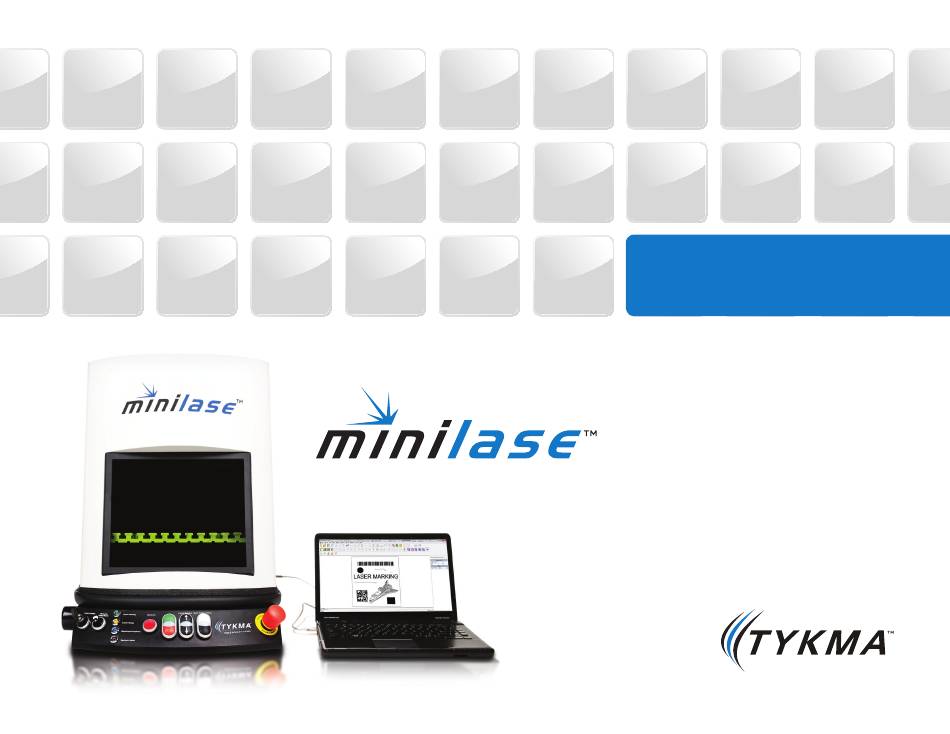

- Page 1 Quick Start Guide. L A S E R S F O R M A R K I N G...
- Page 2 Microsoft Corporation. They are only used in this document for editorial purposes. All information and contents in this document are property of TYKMA Inc. and cannot be shown, distributed, modified and/or reproduced through electronic, mechanical or any other way, without written consent from TYKMA Inc.
- Page 3 Minilase™ system footprint. • Ample room next to the system for a Laptop or Desktop PC, Monitor, Keyboard and Mouse. You will be installing Minilase ™ Pro Software on your PC to program and run the Minilase™ . Items included with your Minilase™ System •...
- Page 4 Now, let’s go through these easy steps to power up your Minilase™! Step 1: Remove the Minilase™ System from the box and place it on the desk or Make sure the E-STOP is pulled toward you. bench top where you plan to use it.
- Page 5 USB connection into your computer. Insert the provided USB Memory Stick into a USB 2.0 port on your computer. Browse to “My Computer” on your PC and locate the USB Drive titled TYKMA Laser Software and Manuals. Right-click on the USB Drive and click “Explore.”...
- Page 6 When this window is present it is installation package. see the following 2 windows. now time to plug the USB cable from the laser system into your selected computer port. Minilase™ Quick Start Guide Rev. January 2012 •...
- Page 7 (WINDOWS™ XP ONLY) Anyway.” Step 7: Your Minilase™ Pro software installation is now complete. There is one FINAL STEP to complete before you can utilize the software. On the provided USB stick locate the file titled “Laser.ini”. Right-click on this icon and choose “copy”.
- Page 8 Step 10. Step 10: Reach up inside the Minilase™ and remove the plastic lens cap located on the inside roof panel. After doing this, you’ll notice two red laser pointing beams being emitted onto the T-Slot work surface.
- Page 9 Make sure the door to your system is in the OPEN position and locate the icon on your desktop titled “Minilase™ Pro 2.0”. Double-click this icon to launch the software. When the software opens, check for connectivity in the upper right side of the screen.
- Page 10 Minilase™ system as shown in the photo below. TYKMA carries a selection of fume extraction units that are ideal for removing dust, fumes or smoke that can be created by the marking process.
- Page 11 Step 14: LASER ENABLE, MANUAL/EASY MODE, LASER READY, LASER BUSY, MARKING In Easy mode, if the Minilase™ software is in work mode, you only need to press COMPLETE, and SYSTEM FAULT buttons. start, and the door will automatically close and the marking process will start.
- Page 12 If you purchased a Minilase™ MANUAL, this button is not included on your system. You will adjust the focal height using the manual control on the right front side of the Minilase™...
- Page 13 Simply pull on the cover with even pressure to remove it and replace the filter material. Replacement filter material can be purchased from TYKMA, or you can buy OEM filter material from any standard supplier and cut it to size.
- Page 14 FILTER MAINTENANCE LOG: Minilase™ Quick Start Guide Rev. January 2012 •...
- Page 15 NOTES: Minilase™ Quick Start Guide Rev. January 2012 •...
- Page 16 L A S E R S F O R M A R K I N G TYKMA Technologies 931 E Water Street Chillicothe, OH 45601 Toll Free: 877-318-9562 Fax: 740-779-9910 www.permanentmarking.com www.minilase.com ML-M QS 1/12/20 Minilase™ Quick Start Guide Rev. January 2012 •...
