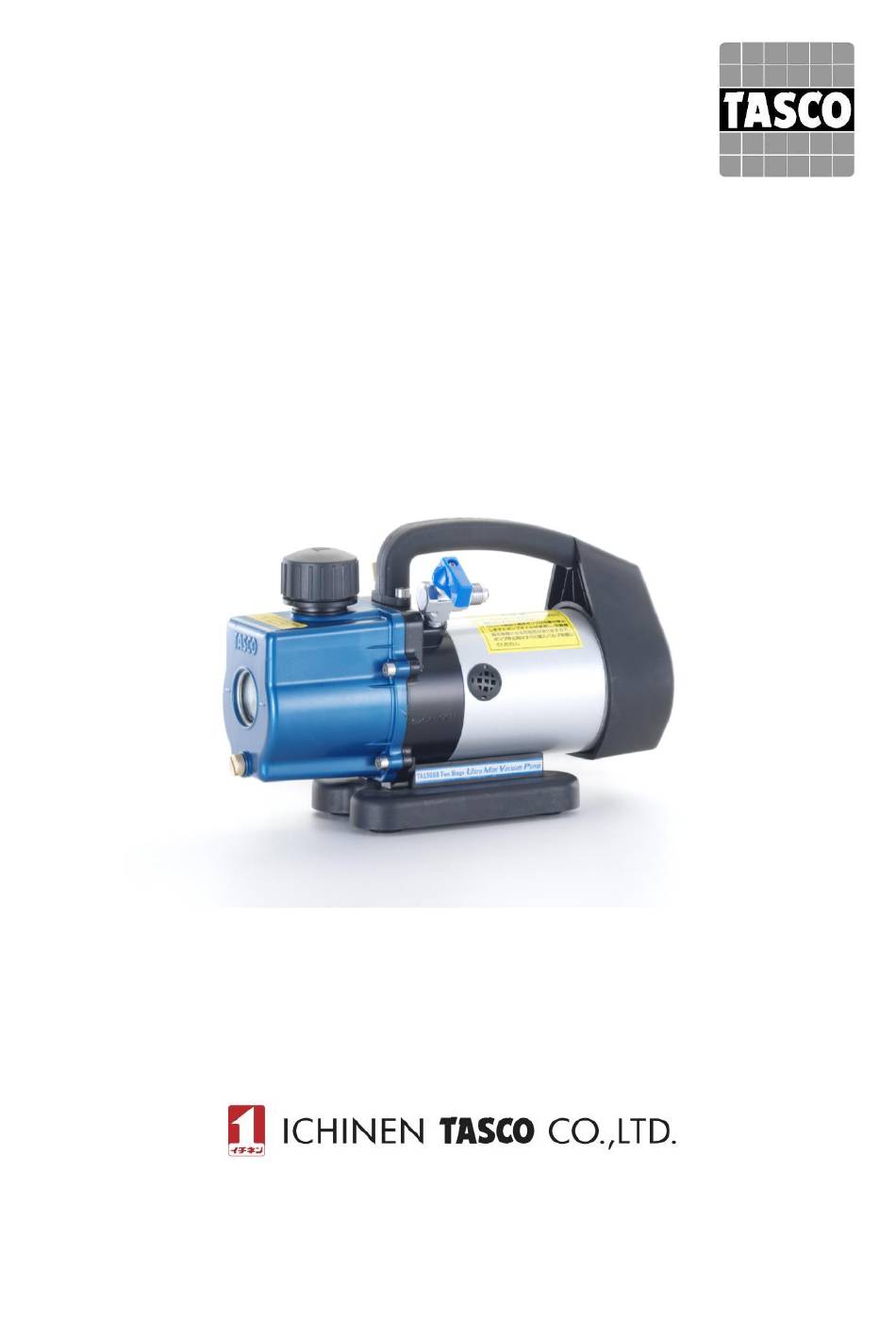

- Page 1 Ultra-Mini Vacuum Pump (With oil flow back prevention function) TA150SB-2-220 Safety Notes/Instruction Manual/ Warranty Certificate...
-
Page 2: Table Of Contents
Thank you for purchasing this product. Never fail to read this Safety Notes and Instruction Manual thoroughly before using the product and to ensure that instructions therein are fully understood. This manual summarizes and explains about “things that need to be observed for safety’s sake”... -
Page 3: Warning] [ Caution]
[Safety Notes] Observe without fail (For the sake of safe use) Notes contained in this manual are classified as [ WARNING] and [ CAUTION]. Instructions given in the [ WARNING] column summarize and refer to those that may result in a death or serious injury if they are neglected. - Page 4 WARNING] Pay attention to gases and ventilation for working in a closed area, such as inside a tank. [If neglected] The operator may suffer a suffocation or intoxication. CAUTION] Perform connection with the pump only after confirming the inner pressure of the physical object has fallen near the atmosphere pressure. [If neglected] It may cause damage to the equipment or oil being blown off from the muffler.
- Page 5 CAUTION] Keep the pump upright. Oil leakage may be caused if it falls sideways or upside down. [If neglected] It may cause other articles around to be damaged. Instructions on electrical installations WARNING] Ensure to provide grounding securely and install an exclusive earth leakage breaker.
-
Page 6: [Instruction Manual]
[Instruction Manual] [Part name] Power switch Oil inlet (Exhaust cap) Suction port…5/16” Flare Suction port valve Sight glass Oil drain Power cord Fuse box Gas ballast valve... -
Page 7: [Specifications]
Never fill any other oil than the one exclusively used for vacuum pumps. Also, be careful not to fill the oil excessively. 2. After filling oil, close the oil inlet. For change oil, high-performance TA117-1 to 3 manufactured by TASCO is recommended regardless of high or low temperature. [Gas ballast valve] Oil deterioration caused by moisture and condensable gas absorption into the pump oil can be prevented by operating with the gas ballast valve opened and letting dry air flow into the pump. -
Page 8: [Example Of Operating Procedure]
[Example of operating procedure] [1] Connect the vacuum pump, gauge manifold and air conditioner as per the [Connection example] shown below. [2] Confirm with the gauge that it is not under any pressure. * If any CFC (chlorofluorocarbon) or nitrogen gas enters the vacuum pump, oil may be blown off from the muffler or damage may be caused thereby. -
Page 9: [Oil Change]
Repeat this operation until the oil gets clean. b) Finally, fill an appropriate quantity of new oil. For change oil, high-performance TA117-1 to 3 manufactured by TASCO is recommended regardless of high or low temperature. As for vacuum pump oil, please use... -
Page 10: [When You Are Suspicious Of A Failure]
[When you are suspicious of a failure] Trouble Cause Countermeasure Start-up failure [1] Ambient temperature is too low. Have the equipment accustomed to the temperature (Start-up disabled, of the room, etc. If the start-up instability still persists, chattering caused, try to start-up with the suction port closed and etc.) continue the warm-up operation for about 5 minutes. -
Page 11: Warranty Certificate
Warranty Certificate Thank you for purchasing a TASCO product. In an event that the product fails under proper conditions of use within the warranty period, it shall be repaired without a cost to the customer according to the warranty terms described below.
