Summary of Contents for DuoKui P1
- Page 1 D&K Presenter Pointer Exclusive pointer: smallest Operating Instructions lightest smooth Product name：PPT Pointer Model：P1 Manufacturer: Guangzhou DuoKui Technology Co., Ltd.
-
Page 2: Product Instruction
Product instruction 1. The product is used for PPT page turning in a presentation, it can be used on computers with USB port. 2. The product has a receiving end and a transmitting end. The receiving end should be plugged into USB port, the other one should be worn on your right index finger. -
Page 3: Product Details

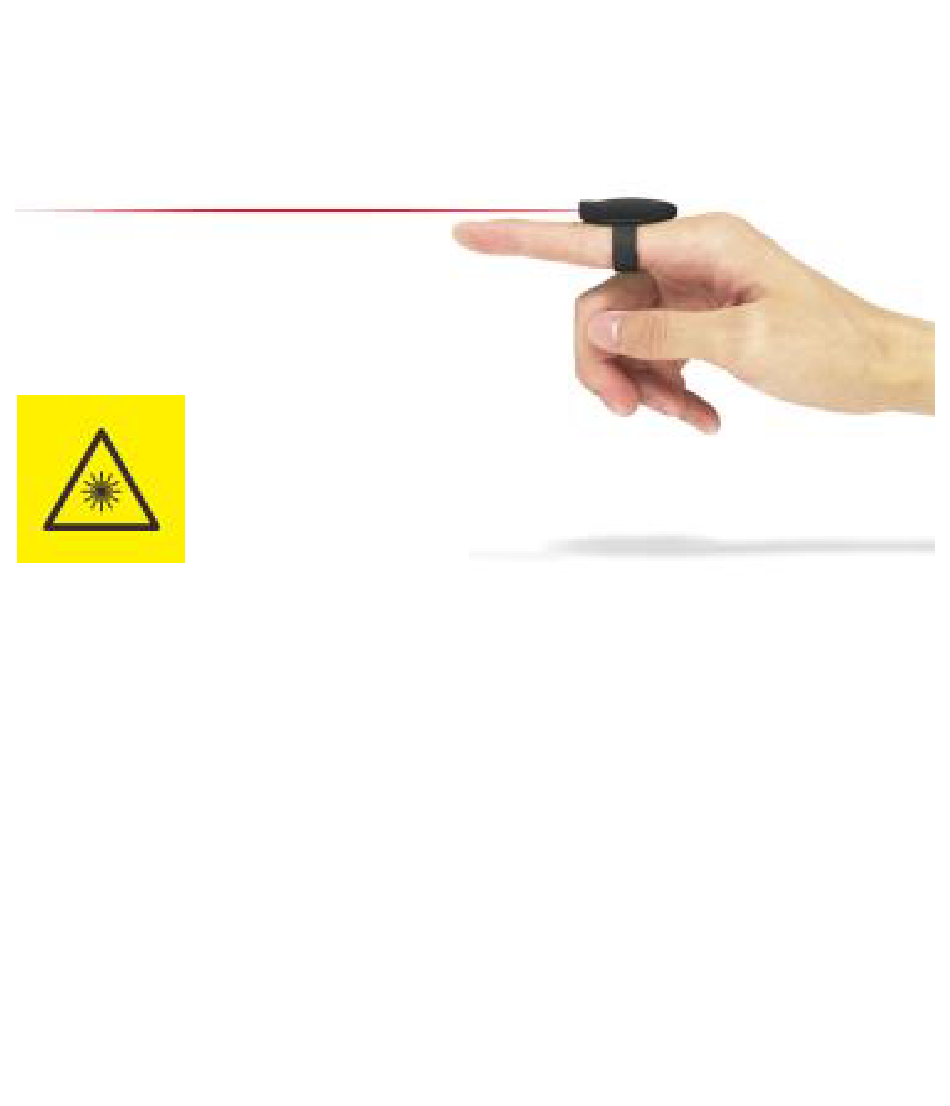

Product details... - Page 4 ear instructio Open the transmitting end’s velcro, turn the protruding side toward the direction of the fingertip, adjust the velcro to fit the size of your right hand’s index finger, then stick the velcro. Make sure to wear the transmitting end on your right index finger in the comfortable state.
-
Page 5: Use Instruction
Use instruction 1. Starting up：Long press the power button to start when it on shutdown. 2. Shutdown：Long press the power button to power when it on work. 3. Page down: Use the thumb slide the side of the pointer from left to right. - Page 6 4. Page up: Use the thumb slide the side of the pointer from right to left. 5. Turn on red light: Double click the side of the pointer with the thumb. 6. Turn off laser: Touch the side of the pointer.
- Page 7 7. Charging: Plug the USB receiver to your computer, put the pointer on the correct place of the receiving end. The indicator light on the power button will blink like a breath while charging. When it is full, it is always bright. 8.
-
Page 8: Product Parameters
Product parameters Control Technology: RF 2.4GHz Control Range: Laser Range: >200m Laser Power： <5mW Battery: 45mAH Charging time: 45min Standby current: 3.5μA Size: 3.9*1.9*0.8cm Weight:... - Page 9 Cautions 1. Do not use in the high temperature, high voltage, heat-generating conductors humid places environment. 2. Do not charge the product above DC voltage above 5V. 3. This is a capacitive touch product. It may be disturbed static electricity environment such as winter.
-
Page 10: Fcc Warning Statement
FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 11 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
