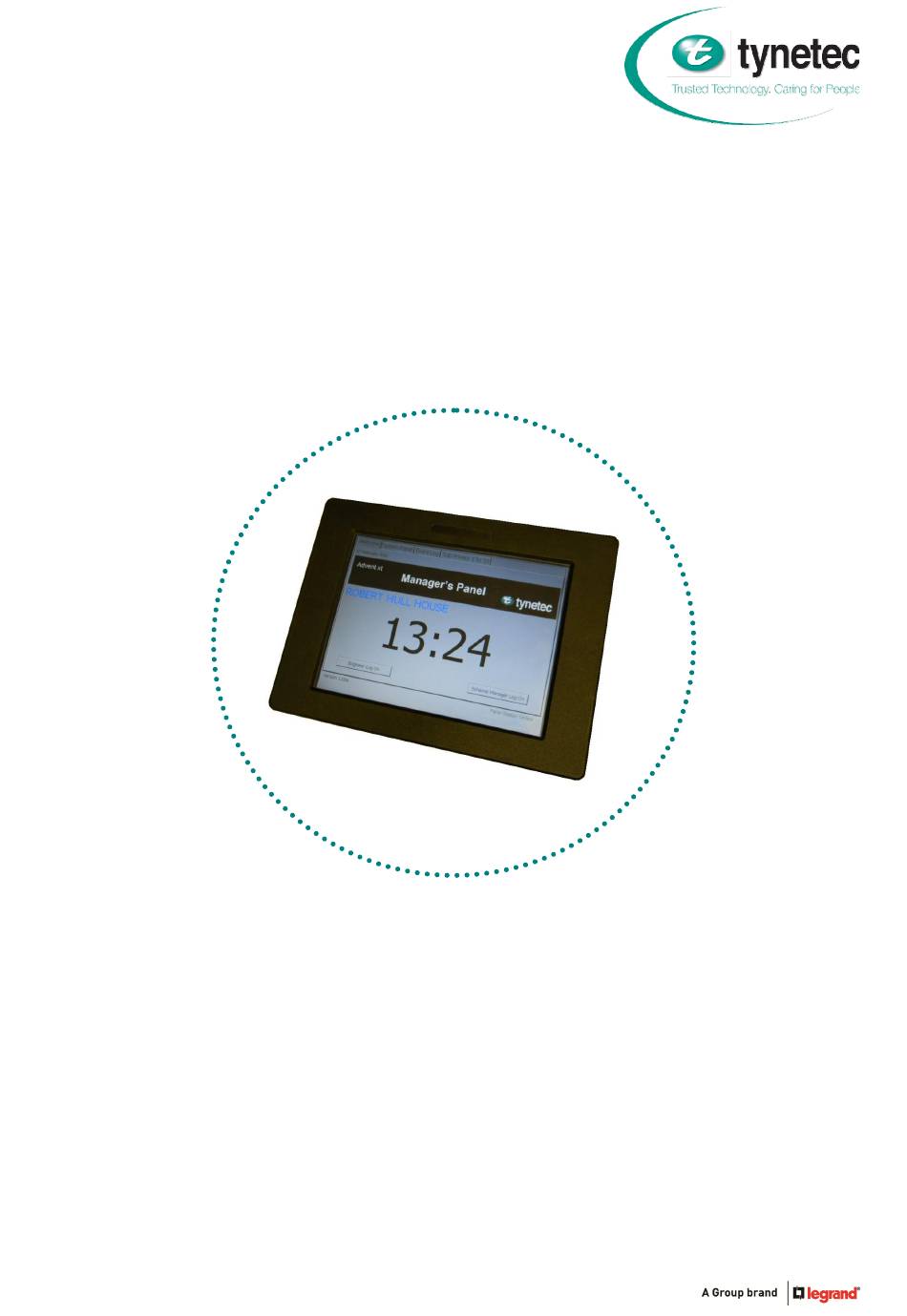

Advent xt (2013)
Warden Call System

______________________________________________________________________________________________________________
                                               ZXT315 MANAGER'S DISPLAY PANEL



Tynetec operates a policy of continual product improvement and
reserves the right to modify the specification of its products.

If any variation to the details in this document are suspected please
contact Tynetec's Technical Support on 01670 352371.
Doc No.   F M0665 issue D    Page 1
         User Guide
Tynetec, a business unit of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk  Web: www.tynetec.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZXT315 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tynetec ZXT315

  • Page 1 Advent xt (2013)  Warden Call System      ______________________________________________________________________________________________________________           User Guide                                                 ZXT315 MANAGER’S DISPLAY PANEL        Tynetec operates a policy of continual product improvement and  reserves the right to modify the specification of its products.     If any variation to the details in this document are suspected please  contact Tynetec’s Technical Support on 01670 352371. Tynetec, a business unit of Legrand Electric Ltd  Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth  Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807  Email: sales@tynetec.co.uk  Web: www.tynetec.co.uk Doc No.   F M0665 issue D    Page 1   ...
  • Page 2 INDEX  Section  Topic  Page    1  Welcome Screen  3  2  System Screen   4  3  Event Log   5  4  Inactivity Status  6  4.1  Intercom Privacy Status   7  4.2  I’m OK Status  8  4.3  Handset Privacy Status  9  5  Scheme Manager Log On  10  5.1  Add a Radio Device  11  5.2  Remove a Radio Device   12  5.3  Change Password  13  6  Engineer Log On  14 ...
  • Page 3: Welcome Screen

    1. WELCOME SCREEN   A few seconds after power‐up the Welcome screen will be displayed;                                      Panel Status: Online will be displayed when connection is made to the Advent xt system    The Time and Date is set from the Advent xt system    The building name e.g. HOLLY COURT can be setup in the Engineers utility    Touch the                                                      b utton to select the Engineers utility ‐ see section 6  Engineer Log On   Touch the                                                      b utton to select the Scheme Managers utility ‐ see section 5  Scheme Manager Log On ...
  • Page 4: System Screen

    2. SYSTEM SCREEN    Touch the System tab and the screen will display;                                    The System Status: window will display the current operating mode as; Onsite, Local Offsite or  Remote Offsite, if there’s any Faults on the system and if there’s a Call in Progress    0006  The Current Alarm window will display the Call in Progress in large red digits e.g.    0006  Z02  If the call is from a zoned pendant, the residents flat and zone will be displayed e.g.    3 buttons are used to select the operating mode; the current mode will be green e.g.    On Site   Touch the           or       buttons to change the operating mode  Local Offsite Remote Offsite  ...
  • Page 5: Event Log

    3. EVENT LOG   Touch the Event Log tab and the screen will display;                                       Touch the           button on the From: date box and a calendar window will open    Show Events Select a year, month and day from the calendar window then touch the                                    b utton    All events for the chosen day will be listed     Use the slider bar to scroll up/down the list        Events are listed in time order ‐ the first event of the day is at the top of the list     ...
  • Page 6: Inactivity Status

    4. INACTIVITY STATUS  Touch the Inactivity tab and the screen will display;                                    This shows the flats where the residents are “up and about” each day  Up to 3 activity monitoring periods can be set to repeat each day     A red spot  = NO ACTIVITY     A green spot  = ACTIVITY        Refer to the Advent xt user guide for instructions on how to setup activity monitoring                         ...
  • Page 7: Intercom Privacy Status

    4.1  INTERCOM PRIVACY STATUS     Touch the                                   button and the screen will display;  Intercom Privacy                                     This shows which flats have privacy mode selected on the Advent xt intercom    A red spot  = PRIVACY ON    A green spot  = NORMAL (privacy off)         When intercom privacy is on the resident can hear you but you cannot hear them             ...
  • Page 8: I'm Ok Status

    4.2  I’M OK STATUS   Touch the                                   button and the screen will display;  I’m OK                                     This shows which flats have responded “I’m OK” each day    A red spot  = NO RESPONSE (not OK)     A green spot  = I’M OK        Refer to the Advent xt user guide for instructions on how to setup the I’m OK feature               ...
  • Page 9: Handset Privacy Status

    4.3  HANDSET PRIVACY STATUS     Touch the                                   button and the screen will display;  Handset Privacy                           This shows which flats have privacy mode selected on the door entry telephone handsets    A red spot  = PRIVACY ON    A green spot  = NORMAL (privacy off)           If a flat has 2 door entry handsets both must be in privacy to show on screen as privacy mode  When handset privacy is on the resident will not get calls from visitors at the entrance door                   ...
  • Page 10: Scheme Manager Log On

    5. SCHEME MANAGER LOG ON  Scheme Manager Log On  From the Welcome screen touch the                                                      button and the screen will display;                                  Enter the password (default 1234) then touch                      and the screen will display;  Log On                          ...
  • Page 11: Add A Radio Device

    5.1  ADD A RADIO DEVICE  From the System Utility screen touch the                                 button and the screen will display;  Radio Devices                                       Enter the 8 digit device ID taken from the label of the radio device in the Device ID box    Enter the flat number the radio device is being allocated to in the Flat Number box    Select where the radio device is being located from the Location pull down list box    Touch the                 button       Check the correct radio device details are displayed in the Activity window     Close Touch the                    button to exit   ...
  • Page 12: Remove A Radio Device

    5.2  REMOVE A RADIO DEVICE  From the System Utility screen touch the                                 button and the screen will display;  Radio Devices                                       Enter the 8 digit device ID taken from the label of the radio device in the Device ID box    Enter the flat number the radio device is being removed from in the Flat Number box      Remove Touch the                    button     Check the correct “Deleted ID” details are displayed in the Activity window     Touch the                    button to exit  Close  ...
  • Page 13: Change Password

    5.3  CHANGE PASSWORD  From the System Utility screen touch the                                  button and the screen will display;  Change Password                                       Enter a new 4 digit password in the New Password box    Re‐enter the same new 4 digit password in the Confirm New Password box    Touch the                    button   Change     Touch the                    button to exit  Close  ...
  • Page 14: Engineer Log On

    6. ENGINEER LOG ON  From the Welcome screen touch the                                                                                                                            button and the screen will display;  Engineer Log On ...
  • Page 15: Change Flat Labels

    6.1  CHANGE FLAT LABELS  From the System Utility screen touch the                                  button and the screen will display;  Flat Labels                                       Touch a channel number e.g. 0010 in the list box and it will appear in the Flat Label box below  (use the slider bar to scroll up/down the list if necessary)    Touch the                    button to clear the channel number from the Flat Label box  Clear   Enter the actual flat number or channel ID you want displayed using the 0‐9 buttons    Touch the                    button and the new number will be transferred to the list  Modify  ...
  • Page 16: Change Telephone Numbers

    6.2  CHANGE TELEPHONE NUMBERS  From the System Utility screen touch the                                 button and the screen will display;  Tel. Numbers                                       Touch the Telephone Number Slot list box and select the number to add or change    Status: Requesting will be displayed for a moment     Status: No Number Assigned will be displayed if there is no number in this location     Status: Received will be displayed and the current number will be in the Telephone Number box     Touch the                    button to delete the current number (if applicable)  Clear   Enter the new telephone number using the 0 – 9 buttons and check it is correct   ...
  • Page 17: Change Site Name

    6.3  CHANGE SITE NAME  From the System Utility screen touch the Site Name text box and the Input Panel will open;                                    Touch the  button on the Input Panel to delete the existing Site Name    Enter the new site name using the Input Panel keys    Touch the                                button   Save Site Name     Touch the                           button to exit  Close       Check the new site name is displayed correctly on the Welcome screen       ...
  • Page 18: Calibrate The Touchscreen

    6.5  CALIBRATE THE TOUCHSCREEN  From the System Utility screen touch the                                 button   Calibrate   Press your finger on the target cross  in the centre of the screen and hold until it moves    Repeat the above procedure (i.e. touch and hold the target ) for all 4 corners of the screen    After the last corner, touch the screen anywhere to save the new settings     The display will return to the System Utility screen      Follow the instructions given above, ignore the on‐screen prompts relating to using a  Stylus and pressing Enter/Esc keys            7.  MEMORY CARD MANAGEMENT  The System Utility screen will show the Available SD Memory: e.g 999211008    When the memory gets down to 20000000 (20MB) or less the panel will display a warning message  every day at 10:00 AM        Contact your Service Engineer to archive data from the SD memory card            7.1  ARCHIVING MEMORY CARD DATA    Close the Managers Panel Application as described in section 6.3    ...
  • Page 19: Formatting The Memory Card

    7.2  FORMATTING THE MEMORY CARD    Should an incorrectly formatted SD card be used in a Managers Panel it may result in an “exception  error” after some months of operation. If a new card is being fitted always ensure that it is formatted  correctly before use, details are given below.    To check if the SD Card is correctly formatted;     Close the Managers Panel Application as described in section 6.3    Switch the Managers Panel off at the mains supply     Remove the SD card from the bottom edge of the Managers Panel     Insert the SD card into an SD card slot on a PC    Locate the card in Windows Explorer and right‐click on it    Select Properties; the card should show File System: FAT32     If the SD Card is not FAT32;    Copy all of the data files to a drive on the local PC, these will be   copied back once the Format is complete.    Right‐click on the SD card letter and select “Format”     The following will appear;      Ensure that you have the correct drive (i.e. the SD card) selected as    you as about to erase all contents on the drive        Ensure that the FAT32 option is selected         ...
  • Page 20: Specification

    Time & Date settings from Advent xt system (Auto‐BST)  Site Name  User programmable ‐ max 32 characters  Call in Progress  Display shows flat number/zone of current call   Faults Exist  Display shows if Faults Exist  Operating Mode  Display shows the current Operating Mode  Change Operating Mode  Onsite/Local Offsite/Remote Offsite ‐ password protected  Event Log  All system events are stored with time and date  Inactivity Status  Display shows activity status of all flats   Intercom Privacy Status  Display shows warden call privacy status of all flats   I’m OK Status  Display shows I’m OK status of all flats   Handset Privacy Status  Display shows door entry privacy status of all flats   Radio Devices  Add/delete Radio Devices ‐ password protected  Telephone Numbers  Change offsite telephone numbers ‐ password protected          Tynetec, a business unit of Legrand Electric Ltd  Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth  Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807  Email: sales@tynetec.co.uk  Web: www.tynetec.co.uk Doc No.   F M0665 issue D    Page 20   ...
