Silverwing Scorpion2 Quick Start Manual

Scorpion2 Quick Start Guide
Congratulations
You have just received your very own Silverwing
Scorpion2 inspection system from Eddyfi
Technologies. This product has been designed
and tested with upmost care and precision,
making it one of the leading products in the
inspection industry.
Kind regards and we hope you will enjoy the use
of this system!

Safety Precautions

During operation observe the safety warnings and precautions.
READ AND UNDERSTAND THE USER MANUAL
The Swift and Scorpion2 system are designed for a specific use. Using the Swift or
Scorpion2 system outside of its intended use is dangerous. Severe injury or death
could result. Read and understand the user manual before use.
TRANSPORTATION
It is the users responsibility to make sure that the transport safety precautions are in
accordance with the local department of transportation (or equivalent governing
body) rules and regulations. The system contains lithium-ion batteries and magnetic
materials. See user manual for more details
DO NOT OPERATE WITHOUT TETHER
Keep the area below an operating crawler clear at all times. A NO ENTRY ZONE must
be clearly marked and cordoned off directly below the crawler. The NO ENTRY ZONE
must be a minimum of 6m (20 ft) in all directions from the point below the crawler.
WARNING FINGER TRAP
Tools, magnets, and metal objects can cut, pinch, or entrap hands and fingers.
HANDLE WITH CARE.
MAGNETIC MATERIAL
The wheels of the crawler and the probe holder contain strong magnets that produce
an extremely strong magnetic field which may cause failure or permanent damage
to items such as watches, memory devices, and other electronics devices.
PACEMAKER
People with pacemakers or ICD's must stay at least 2 m (6.5 ft) away.
QR code to the Scorpion2 user manual
www.silverwingndt.com/downloads
Pre-Inspection
Prior to an inspection please check:
•
Calibration validity date
•
System for damage, including probe,
connectors and umbilical
•
All connectors are secure
•
Batteries are charged
•
Clean and apply silicon oil to the probe
•
Apply silicon oil to the probe pad
Connecting Scorpion2 to Swift
1.
Remove the Swift, Scorpion2 and umbilical
cable reel from their transit cases.
2.
Insert batteries into the Swift and Scorpion2.
3.
Unwind the umbilical cable to the required
length. Failure to do so could twist the
cable.
4.
Connect the umbilical connectors to the
rear of the Scorpion2. Observe connector
color coding.

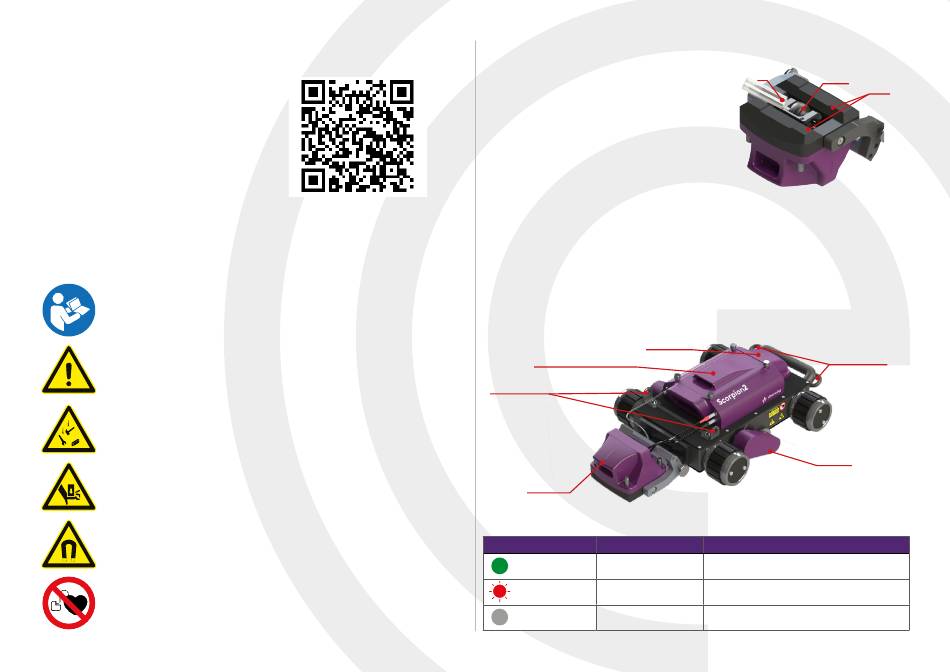

LEDsatus indicator
Battery
compartment
Tether points
Probe
assembly
LED Status Indicator
Color Status
Green
Ready
Flashing Red
Awaiting Swift comms
Off
No Power
Silicon Oil
Wear
Probe
pads
5.
Attach both umbilical tether clips to the
anchor points on the rear handle.
6.
Unwind the short section of umbilical from
the side of the reel.
7.
Connect the umbilical connectors to Swift.
Observe connector color coding.
8.
Attach a suitable tether line to the
Scorpion2 crawler anchor points.
Umbilical
anchor points
Encoder
Troubleshoot
Check umbilical connectors (allow 1 min to
establish a connection)
Check batteries and emergency stop
