PO Box 403
Freeland, WA 98249
http://www.biometricsdirect.com
Sales / Support – 1-800-331-3921 M-F 8am – 5pm Pacific
Email support -
support@mybiocert.com
Instruction Manual – US English
Sold Exclusively Through Authorized Sales Agents of Biometrics Direct
Biometrics Direct – BioCert FS-100 Door Lock
Page 1
Advertisement
Table of Contents
Summary of Contents for Biometrics Direct BioCert FS-100

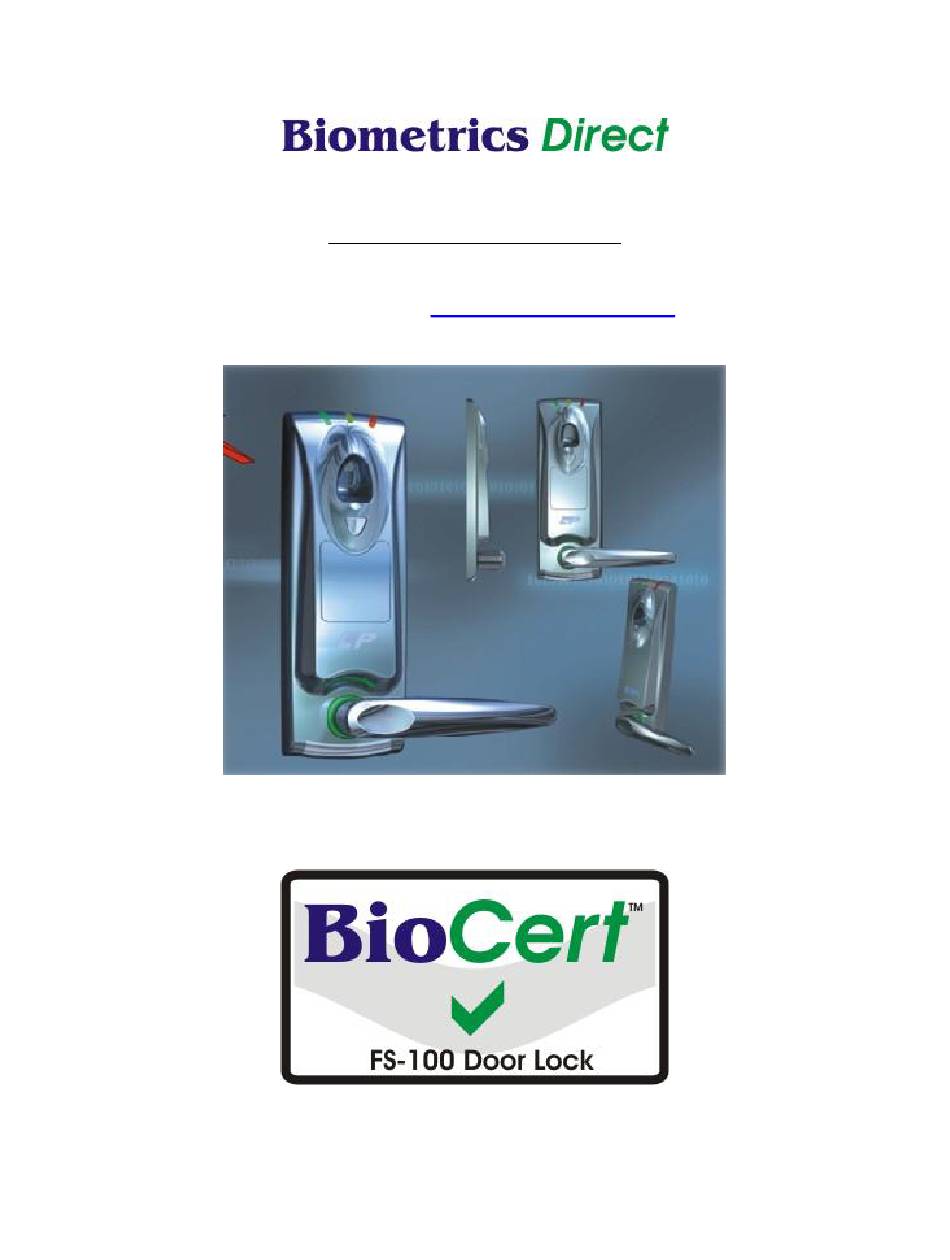

- Page 1 Freeland, WA 98249 http://www.biometricsdirect.com Sales / Support – 1-800-331-3921 M-F 8am – 5pm Pacific Email support - support@mybiocert.com Instruction Manual – US English Sold Exclusively Through Authorized Sales Agents of Biometrics Direct Biometrics Direct – BioCert FS-100 Door Lock Page 1...
- Page 2 · Emergency “Single Step” Egress - Door lock setting has ‘In Free’ function that enables to open the door easily with turning the doorknob from the inside. Biometrics Direct – BioCert FS-100 Door Lock Page 2...
-
Page 3: Table Of Contents
FP cannot be matched when the system starts..........16 The handle cannot be released normally ............16 Specifications ....................... 17 This manual is copyright 2003 by Artemis Solutions Group, LLC DBA Biometrics Direct – PO Box 403, Freeland, WA 98249 All rights are hereby reserved. -
Page 4: Please Read This Guide Completely Before Installation And Use
For more information and technical support, please contact our customer service center at 800-331-3921 M-F 8am to 5pm. Our Biometrics Direct service team will be available to provide you with the best quality assistance to make sure you are completely satisfied with our products. -
Page 5: Diagram Of Fs-100 Door Lock
Diagram of FS-100 Door Lock Biometrics Direct – BioCert FS-100 Door Lock Page 5... -
Page 6: Installation Guide - New Door Frame
Installation Guide – New Door Frame Biometrics Direct – BioCert FS-100 Door Lock Page 6... -
Page 7: Installing The Batteries
When the batteries are weak and need to be replaced, a beeping sound from the system will be heard. Pay attention to the positive and negative (+,-) terminals when you insert the batteries in the system. Biometrics Direct – BioCert FS-100 Door Lock Page 7... -
Page 8: Key Override Feature
Button to open the lock ‘0~9’ Keypad Buttons to input the pin codes Key Override The BioCert FS-100 comes with three keys for emergency override. Do not lose these keys as they cannot be replicated. Biometrics Direct – BioCert FS-100 Door Lock Page 8... -
Page 9: Using Your Biocert™ Fs-100 Door Lock
If the registration is accepted by the system, you will hear the beep sound with the green LED blinking. If failed, the LED will blink and the system will beep four times rapidly. That means you need to repeat the steps outlined above. Biometrics Direct – BioCert FS-100 Door Lock Page 9... -
Page 10: Registering Alternate Masters
Registering Alternate Masters The BioCert FS-100 Door Lock enables you to register two Alternate Masters, beyond the Primary Master. Master 2 = 0202 Master 3 = 0303 Once registered as a master (either Primary or Alternate), you will be given the authorization to register and delete other users. -
Page 11: Registering Additional Users
ID code which are ‘01’ ‘02’ ‘03’. We recommend using numbers 10-99 for Authorized Users. Example User 10 would be entered 1010 for programming purposes 11 would be 1111 and so on. Biometrics Direct – BioCert FS-100 Door Lock Page 11... -
Page 12: Deleting Fingerprints From The System
– This will reset the FS-100 to factory specifications with ANY finger being able to unlock the door. You must then re-register a NEW Primary Master. Biometrics Direct – BioCert FS-100 Door Lock Page 12... -
Page 13: Unlocking And Entering Your Door
PIN codes to open the lock. If the interior battery supply doesn’t work normally, plug a 9V battery into the exterior power socket underneath the keypad and input the correct PIN codes to open the lock. Biometrics Direct – BioCert FS-100 Door Lock Page 13... -
Page 14: Setting Pin Codes Using The Keypad
LED blinking. If failed, the LED will blink and the system will beep four times rapidly. That means you need to repeat the steps above. Biometrics Direct – BioCert FS-100 Door Lock Page 14... -
Page 15: Trouble Shooting
The system cannot start after pressing the Start button · Low Voltage – This means that the voltage on the installed batteries is dangerously low. · Replace the batteries. If this situation persists, please contact us for technical support. Biometrics Direct – BioCert FS-100 Door Lock Page 15... -
Page 16: Fingerprint Authorization Operates Intermittently
Caution - Please restrict the masters only to the persons who are actually responsible for the access control. Do not to register any installation team members or people who don’t need to be registered as a master. Biometrics Direct – BioCert FS-100 Door Lock Page 16... -
Page 17: Specifications
-10c ~ 45c Moisture 20%~80% Voltage 7.5V Battery Durability 4000~5000 operations > 15000V Battery Exchange Warning signal - System Beep Response Time 1~2 sec. Dynamic power consumption 70mA~300mA Static power consumption < 12μA Biometrics Direct – BioCert FS-100 Door Lock Page 17... - Page 18 Warranty Statement – Biometrics Direct BioCert™ FS-100 Door Lock The FS-100 Door Lock distributed by Artemis Solutions Group, LLC, DBA Biometrics Direct is warranted against material defects and faulty workmanship. Any parts that are listed below, which from date of shipment be proven to have been defective in these respects when delivered, will be replaced by the company.
